Foxconn T20-H3 User Manual

Foxconn T20-H3 User Manual

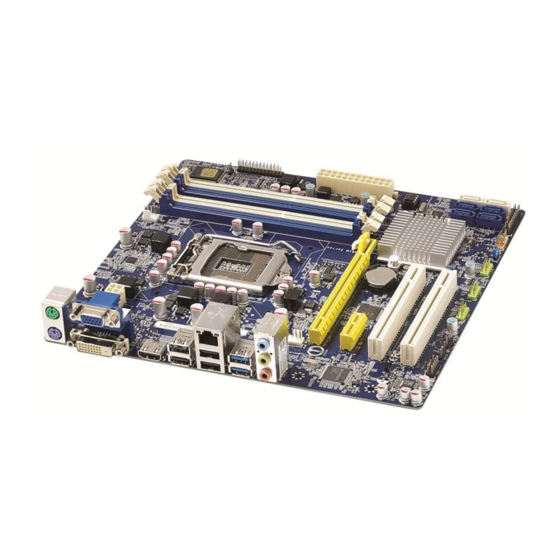

H61mx series motherboard

Advertisement

H61MX Series Motherboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T20-H3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Foxconn T20-H3

  • Page 1 H61MX Series Motherboard User’s Manual...
  • Page 2 Statement: This manual is the intellectual property of Foxconn, Inc. Although the information in this manual may be changed or modified at any time, Foxconn does not obligate itself to inform the user of these changes. Trademark: All trademarks are the property of their respective owners. Version: User’s Manual V1.3 for H61MX Series motherboard. Symbol description: Caution: refers to important information that can help you to use motherboard better, and tells you how to avoid problems. Warning: indicating a potential risk of hardware damage or physical injury may exist. WEEE: The use of this symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could other- wise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased this product. More information: If you want more information about our products, please visit Foxconn’s website: http://www.foxconnchannel.com © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. All images are for reference only, please refer to the physical motherboard for specific features.
  • Page 3: Declaration Of Conformity

    Declaration of conformity HON HAI PRECISION INDUSTRY COMPANY LTD 66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT, TAIPEI HSIEN, TAIWAN, R.O.C. declares that the product Motherboard H61MX Series is in conformity with (reference to the specification under which conformity is declared in accordance with 89/336 EEC-EMC Directive) ■ EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio disturbance characteristics of information technology equipment ■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC) Part 3: Limits Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase) ■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC) Part 3: Limits Section 2: Limits of voltage fluctuations and flicker in low voltage supply systems for equipment with rated current <= 16A ■ EN 55024/A2:2003 Information technology equipment-Immunity characteristics limits and methods of measurement Signature : Place / Date : TAIPEI/2011 Printed Name : James Liang...
  • Page 4 Declaration of conformity Trade Name: FOXCONN Model Name: H61MX Series Responsible Party: PCE Industry Inc. Address: 458 E. Lambert Rd. Fullerton, CA 92835 Telephone: 714-738-8868 Facsimile: 714-738-8838 Equipment Classification: FCC Class B Subassembly Type of Product: Motherboard Manufacturer: HON HAI PRECISION INDUSTRY COMPANY LTD Address: 66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT, TAIPEI HSIEN, TAIWAN, R.O.C. Supplementary Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. Signature : Date : 2011...
  • Page 5: Installation Precautions

    Installation Precautions ■ Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between two objects at different electrical potentials. Normally it comes out as a spark which will quickly damage your electronic equipment. Please wear an electrostatic discharge (ESD) wrist strap when handling components such as a motherboard, CPU or memory. ■ Ensure that the DC power supply is turned off before installing or removing CPU, memory, expansion cards or other peripherals. It is recommended to unplug the AC power cord from the power supply outlet. Failure to unplug the power supply cord may result in serious damage to your system. Please carefully read the following procedures to install your computer : ■ It is suggested to select high-quality, certified fans in order to avoid damage to the motherboard and CPU due to high temperature. Never turn on the computer if the CPU fan is not properly installed. ■ We cannot guarantee that your system can operate normally when your CPU is over clocked. Normal operation depends on the overclocking capacity of your device. ■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or S/PDIF cables to the internal connectors on the motherboard, make sure their pinouts are matching with the connectors on the motherboard. Incorrect connections might damage the motherboard. ■ When handling the motherboard, avoid touching any metal leads or connectors. ■ If there is a PCI Express x16 graphics card installed in your system, we recommend using a 24-pin ATX power supply to get the best performance. ■ Before turning on the power, please make sure the power supply AC input voltage setting has been configured to the local standard. ■ To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components. Also, make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing. ■ If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.
  • Page 6: Table Of Contents

    TAble of CoNTeNTS Chapter 1 Product Introduction Product Specifications ................2 Layout.......................4 Back Panel Connectors ................5 Chapter 2 Hardware Install Install the CPU and CPU Cooler ..............8 Install the Memory .................. 11 Install an Expansion Card ..............13 Install other Internal Connectors ............14 Jumpers ....................18 Chapter 3 bIoS Setup Enter BIOS Setup ...................21 Main ......................22 Advanced ....................24 Chipset ....................31 Boot ......................34 Power .....................35 Health .....................37 Security ....................38 Save & Exit .
  • Page 7 FOX LOGO .....................64 FOX DMI ....................65 Technical Support : Support Website : http://www.foxconnchannel.com Support Website : http://www.foxconnsupport.com Worldwide online contact Support : http://www.foxconnsupport.com/inquiry.aspx CPU Support list : http://www.foxconnsupport.com/cpusupportlist.aspx Memory, VGA Compatibility list : http://www.foxconnsupport.com/complist.aspx...
  • Page 8 Thank you for buying Foxconn H61MX Series motherboard. Foxconn products are engineered to maximize computing power, providing only what you need for break-through performance. This chapter includes the following information: ■ Product Specifications ■ Layout ■ Back Panel Connectors...
  • Page 9: Product Specifications

    1-1 Product Specifications Support LGA1155 socket Intel CPU, Max processor power up to 95W ® For the latest CPU information, please visit: http://www.foxconnsupport.com/cpusupportlist.aspx Chipset Intel H61 ® Memory 2 x 240-pin DDR3 DIMMs Support up to 8GB of system memory D ual channel DDR3 1333/1066MHz architecture Expansion Slots 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI slots Storage H61 chipset: - 4 x SATA 2.0 connectors 300MB/s data transfer rate - Support hot plug and NCQ (Native Command Queuing ) Realtek 8111E Gigabit LAN chip Audio Realtek ALC662/ALC888S audio chip: - High Definition Audio - 2/4/5.1/7.1(Optional)-channel - Support for S/PDIF Out - Support Jack-Sensing function H61 chipset: - Support up to 10 x USB 2.0 ports (4 rear panel ports, 3 onboard USB headers supporting 6 extra ports) Internal Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 2.0 connectors 3 x USB 2.0 connectors (supporting 6 x USB devices) 1 x CPU fan header (4-pin) 1 x System fan header (4-pin) 1 x Front panel connector...
  • Page 10 Back Panel 1 x PS/2 mouse port Connectors 1 x PS/2 keyboard port 1 x VGA port 1 x DVI-D port 4 x USB 2.0 ports 1 x RJ-45 LAN port 1 x HDMI port (Optional) 1 x COM port (Optional) 6-channel Audio ports / 8-channel Audio ports (Optional) Hardware Monitor System voltage detection C PU/System temperature detection C PU/System fan speed detection C PU overheating warning C PU/System fan speed control PCI Express x1 Support 250MB/s (500MB/s concurrent) bandwidth L ow power consumption and power management features PCI Express x16 Support 8GB/s (16GB/s concurrent) bandwidth L ow power consumption and power management features Green Function Support ACPI (Advanced Configuration and Power Interface) S upport S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (suspend to disk), S5 (soft - off) Support EuP function Bundled Software...
  • Page 11: Layout

    1-2 layout 1. 4-pin ATX 12V Power Connector 13. Front Panel Connectors 2. SYS_FAN1 Header 14. SATA Connector 3. PCI Express x16 Slot 15. PCH_ME_ENABLE Jumper 4. PCI Express x1 Slot 16. IrDA Connector 17. Chipset: Intel ® H61 5. Clear CMOS Jumper 6. PCI Slots 18. 24-pin ATX Power Connector 19. LPT Connector 7. CD_IN Connector 20. INTR Connector 8. SPDIF_OUT Connector 21. COM2 Connector 9. Front Audio Connector 22. DDR3 DIMM Slots 10. Speaker Connector 23. CPU_FAN Header 11. Front USB Connectors 24. LGA1155 CPU Socket 12. TPM Connector Note : The above motherboard layout is for reference only, please refer to the physical motherboard for detail.
  • Page 12: Back Panel Connectors

    1-3 back Panel Connectors Serial Port (Optional) VGA Port LAN Port PS/2 Mouse Port Line Out Line In Rear Speaker Subwoofer Side Speaker Microphone In HDMI Port (Optional) Audio Ports(Optional) PS/2 Keyboard Port DVI-D Port USB 2.0 Ports 1. PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse. 2. PS/2 Keyboard Port Use the lower port (purple) to connect a PS/2 keyboard. 3. VGA Port To connect with external display devices, such as monitor or LCD display. 4. DVI-D Port The DVI-D port supports DVI-D specification. Connect a monitor that supports DVI-D connection to this port. 5. HDMI Port The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to this port. The HDMI Technology can support a maximum resolution of...
  • Page 13 Audio Ports of 8 Channel: Port 2-channel 4-channel 5.1-channel 7.1-channel Blue Line In Line In Line In Line In Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink Microphone In Microphone In Microphone In Microphone In Orange Center/Subwoofer Out Center/Subwoofer Out Black Rear Speaker Out Rear Speaker Out Rear Speaker Out Grey Side Speaker Out 9. RJ-45 lAN Port The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate. Left: Active Right: Link LAN Type Link Active Status Description Status...
  • Page 14 This chapter introduces the hardware installation process, includ- ing the installation of the CPU, memory, power supply, slots, pin headers and the mounting of jumpers. Caution should be exercised during the installation of these modules. Please refer to the moth- erboard layout prior to any installation and read the contents in this chapter carefully. This chapter includes the following information : ■ Install the CPU and CPU Cooler ■ Install the Memory ■ Install an Expansion Card ■ Install other Internal Connectors ■ Jumpers Please visit the following website for more supporting information about your motherboard. CPU Support list: http://www.foxconnsupport.com/cpusupportlist.aspx Memory, VGA Compatibility list: http://www.foxconnsupport.com/complist.aspx...
  • Page 15: Install The Cpu And Cpu Cooler

    2-1 Install the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU : ■ Make sure that the motherboard supports the CPU. ■ Always turn off the computer and unplug the power cord from the power supply before installing the CPU to prevent hardware damage. ■ Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate the notches on both sides of the CPU and alignment keys on the CPU socket.) ■ Apply an even and thin layer of thermal grease on the surface of the CPU. ■ Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage of the CPU may occur. ■ Set the CPU host frequency in accordance with the CPU specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the standard requirements for the peripherals. If you wish to set the frequency beyond the standard specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc. Hyper-Threading Technology System Requirements: (Go to Intel's website for more information about the Hyper-Threading Technology) ■ An Intel ® CPU that supports HT Technology ■ A chipset that supports HT Technology ■ An operating system that is optimized for HT Technology ■ A BIOS that supports HT Technology and has it enabled Install the CPU Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
  • Page 16 Follow the steps to install the CPU onto the CPU socket : Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. 1. Release the CPU socket lever. 2. Lift the metal cover on the CPU socket. 3. Remove protective socket cover. 4. Check pin one marking (triangle) with the pin one corner of the CPU socket, align the CPU notches with the socket alignment keys and gently put the CPU onto the socket. 5. When CPU is properly seated, re- place the metal cover and push the CPU socket lever back to its locked position.
  • Page 17 Install the CPU Cooler Follow the steps below to correctly install the CPU cooler on the motherboard. 1. Apply and spread an even ther- 2. Place the four bolts of the CPU mal grease on the surface of CPU. cooler to the holes of the mother- board, push them straight down from the top, and the bolts will be fas- tened on the motherboard. That's it. 3. Check the solder side of the 4. Attach the 4-wire CPU cooler con- motherboard, the push pin should nector to the CPU FAN header on be fixed as depicted in the picture. the motherboard . Release bolts of CPU cooler from motherboard : 1.Turning the push pin (bolt) along with the direction of arrow (coun-...
  • Page 18: Install The Memory

    2-2 Install the Memory Read the following guidelines before you begin to install the memory : ■ Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. ■ Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. ■ Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction. Dual Channel Memory Configuration This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. When memory is installed, the BIOS will automatically check the memory in your system. Two DDR3 memory sockets are divided into two channels: Channel 0 : DIMM1, Channel 1 : DIMM2, The combinations of DIMM modules are : DIMM1 DIMM2 Single Channel DS/SS Single Channel DS/SS Dual Channel DS/SS DS/SS (DS : Double Side, SS : Single Side, - : No Memory) It is recommended that memory of the same capacity, brand, speed, and chips be used and please select dual channel first to achieve optimum performance.
  • Page 19: Installing A Memory

    Installing a Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR3 DIMMs on this motherboard. Notch If you take a look at front side of memory module, it has asymmetric pin counts on both sides sepa- rated by a notch in the middle, so it can only fit in one direction. Follow the steps below to correctly install your memory modules into the sockets. Step 1: Spread the clips at both ends of the memory socket. Place the memory module onto the socket, then put your fingers on top edge of the module, and push it down firmly and seat it vertically into the memory socket. Step 2: The clips at both ends of the socket will snap into place when the memory module is securely insert-...
  • Page 20: Install An Expansion Card

    2-3 Install an expansion Card ■ Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. ■ Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. PCI Express x16 PCI Express x1 PCI follow the steps below to correctly install your expansion card in the expansion slot. 1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chas- sis back panel. 2. Align the card with the slot, and press down on the card until it is fully seated in the slot. 3. Make sure the metal contacts on the card are completely inserted into the slot. 4. Secure the card's metal bracket to the chassis back panel with a screw. 5. After installing all expansion cards, replace the chassis cover. 6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your expansion card(s). 7. Install the driver provided with the expansion card in your operating system. Installing and Removing a PCI Express x16 Graphics Card : •...
  • Page 21: Install Other Internal Connectors

    2-4 Install other Internal Connectors Power Connectors This motherboard uses an ATX power supply. In order not to damage any device, make sure all the devices have been installed properly before applying the power supply. 24-pin ATX Power Connector : PWR1 PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure. Pin # Definition Pin # Definition 3.3V 3.3V 3.3V -12V PS_ON(Soft On/Off) Power Good +5V SB(Stand by +5V) +12V +12V +5V 3.3V PWR1 Pin No. 24 We recommend you using a 24-pin power supply. If you are using a 20-pin power supply, you need to align the ATX power connector according to the picture. 20-Pin Power 4-pin ATX 12 V Power Connector : PWR2 Connect the 8-pin ATX 12V power supply to PWR2 and provides power to the CPU.
  • Page 22 Audio Connector : CD_IN CD_IN is a Sony standard audio connector, it can be CD_L GND CD_R connected to a CD/DVD-ROM drive through a CD/ DVD audio cable. CD_IN Audio Connector : f_AUDIo A_MIC2_L AUD_GND A_MIC2_R PRESENCEJ The audio connector supports HD Audio standard. It A_LINE2_R SENSE1_RETURN provides the Front Audio output choice. SENSE_SEND EMPTY A_LINE2_L SENSE2_RETURN F_AUDIO Speaker Connector : SPeAKeR The speaker connector is used to connect speaker EMPTY of the chassis.
  • Page 23 front Panel Connector : fP1 This motherboard includes one connector for connecting the front panel switch and LED Indicators. HDD-LED PWR-LED Hard Disk leD Connector (HDD-leD) RESET-SW PWR-SW Connect to the chassis front panel IDE indicator LED. EMPTY It indicates the active status of the hard disks. This 2- pin connector is directional with +/- sign. Reset Switch (ReSeT-SW) Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed. Power leD Connector (PWR-leD) Connect to the power LED indicator on the front panel of the chassis. The Power LED indicates the system’s status. When the system is in operation (S0 status), the LED is on. When the system gets into sleep mode...
  • Page 24 TPM Connector : TPM LCLK The TPM (Trusted Platform Module) provides the ability LFRAMEn EMPTY LRESETn NC_3 to the PC to run applications more secure and to make LAD3 LAD2 transactions and communication more trustworthy. To LAD1 utilize this function, you should purchase additional LAD0 device and install it. NC_1 NC_4 NC_2 SERIRQ CLKRUNin LPCPDn NC_5 19 20 fan Connectors : CPU_fAN, SYS_fAN1 There are two main fan headers on this motherboard.
  • Page 25: Jumpers

    2-5 Jumpers For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting. Description of Jumpers 1. For any jumper on this motherboard, pin 1 can be identified by the bold silkscreen next to it. However, in this manual, pin 1 is simply labeled as “1”. 2. The following table explains different types of the jumper settings. "Closed" means placing a jumper cap on the two pins to temporarily short them. The shorting can also be done by touch- ing two pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent hazardous ESD (Electrical Static Discharge) problem. Jumper Diagram Definition Description Set Pin 1 and Pin 2 closed Set Pin 2 and Pin 3 closed Clear CMoS Jumper: ClR_CMoS The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data, date, time information, hardware password...etc.). Clear CMOS data is the fast way to go back to factory default when the BIOS settings were mistakenly modified. The steps to clear CMOS data are : 1. Turn off the computer, unplug the power cord from the power outlet. 2. Remove jumper cap from pins 1-2, put it onto pins 2-3 to short them. This will clear CMOS data. 3. Return the setting to its original with pins 1-2 closed. 4. Plug in the power cord to your computer and turn it on. 5. Go to BIOS Setup to configure new system as described in next chapter. Normal (Default) Clear CLR_CMOS ■ Disconnect the power cable before adjusting the jumper settings. ■ Do not clear the CMOS while the system is turned on.
  • Page 26 Intel Me Jumper: PCH_Me_eNAble ® This motherboard uses PCH_ME_ENABLE jumper to enable or disable Intel® Management Engine function. Intel® Management Engine (ME) is an embedded microcontroller located in Intel chipset. It provides latest IT management features such as Intel® AMT, that allows to improve management of corporate assets. Set the jumper to pins 1-2, you can enable the Intel® Management Engine function. Set the jumper to pins 2-3, you can disable the Intel® Management Engine function. Enable (Default) Disable PCH_ME_ENABLE Before flashing BIOS ROM, you need to set PCH_ME_ENABLE jumper to pins 2-3 first.
  • Page 27: Chapter 3 Bios Setup

    This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS param- eters are also provided. You have to run the Setup Program when the following cases occur : 1. An error message appears on the screen during the system Power On Self Test (POST) process. 2. You want to change the default CMOS settings. This chapter includes the following information : ■ Enter BIOS Setup ■ Main ■ Advanced ■ Chipset ■ Boot ■ Power ■ Health ■ Security ■ Save & Exit Since BIOS could be updated some other times, the BIOS information described in this manual is for reference only. We do not guarantee the content of this manual will remain consistent with the newly released BIOS at any given time in the future. Please visit our website for updated manual if it is available.
  • Page 28: Enter Bios Setup

    enter bIoS Setup The BIOS is the communication bridge between hardware and software, correctly setting up the BIOS parameters is critical to maintain optimal system performance. Power on the computer, when the message "Press <Del> to enter Setup, <f7> to boot Menu" appears at the bottom of the screen, you can press <DEL> key to enter Setup. We do not suggest that you change the default values in the BIOS Setup, and we shall not be responsible for any damage which resulted from the change you made. Use the arrow right/left keys to select a specific function and go to the submenu. Each function is explained below: Main It displays the basic system configuration, such as CPU Name, memory size, system date, time and so on. They all can be viewed or set up through this menu. Advanced The advanced system features can be set up through this menu. Chipset The values for the chipset can be changed through this menu, and the system performance can be optimized. boot Boot features can be set up through this menu. You can set the boot device priority and enable "Quiet Boot" feature here. Power All the items related with Green function features can be setup through this menu. Health This setup enables you to read/change fan speeds, and displays temperatures and voltages of your CPU/System. Security The Administrator/User password can be set up through this menu to prevent unauthorized use of your computer. If you set a password, the system will ask you to key in correct pass- word before boot or access to Setup. Save&Exit The optimal performance settings can be loaded through this menu. However, it may offer bet- ter performance in some ways (such as less I/O cards, less memory ...etc.), still, it may cause problem if you have more memory or I/O cards installed. It means, if your system loading is...
  • Page 29: Main

    Main Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Main System Date [Wed 12/15/2010] Set the Date. Use Tab to System Time [15:09:21] switch between Date elements. Access Level Administrator Model Name H61M ME Version 7.0.0.1135 BIOS Version A92F1016 Build Date and Time 12/15/2010 14:41:38 Halt On [All, but keyboard] CPU Brand Name: → ← : Select Screen Genuine Intel(R) CPU 0 @ 2.40GHz ↑ ↓ : Select Item Enter: Select Total Memory 1024 MB (DDR3 1333)
  • Page 30 [No Errors]: No error can result in system halt. [All, but keyboard]: All errors but keyboard can result in system halt. ► CPU Brand Name It displays the current CPU name. ► Total Memory This item displays the total memory size. The size is depending on how many memory mod- ules are installed in your system before powering on. ► MAC Address This item displays the onboard LAN MAC address.
  • Page 31: Advanced

    Advanced Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Advanced ▶ Trusted Computing Trusted Computing (TM) ▶ CPU Configuration settings ▶ Performance Tuning ▶ SATA Configuration ▶ Intel IGD SWSCI OpRegion ▶ USB Configuration ▶ Onboard Device Configuration → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► Trusted Computing/CPU Configuration/Performance Tuning/SATA Configuration/Intel IGD SWSCI OpRegion /USB Configuration/Onboard Device Configuration Press <Enter> to go to relative submenu.
  • Page 32: Cpu Configuration

    device on the motherboard and set this item to [Enabled], then save changing and reset your computer, otherwise the operation system can not show the relative information. CPU Configuration Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Genuine Intel(R) CPU 0 @ 2.40GHz EMT64 Supported Max Processor Speed 2400 MHz Min Processor Speed 1600 MHz Processor Speed 2400 MHz CPU ID 206a2 Microcode Revision Processor Cores Intel HT Technology Supported C1E Support [Enabled] → ← : Select Screen Hyper-threading [Enabled] ↑ ↓ : Select Item Execute Disable Bit [Enabled] Enter: Select Intel Virtualization Technology [Disabled]...
  • Page 33: Performance Tuning

    Performance Tuning CPU Performance Tuning Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Advanced EIST [Enabled] Enhance Intel SpeedStep Turbo Mode [Enabled] Technology 1-Core Ratio Limit 2-Core Ratio Limit 3-Core Ratio Limit 4-Core Ratio Limit → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► EIST Function You can select the EIST (Processor Power Management, PPM) through this item.
  • Page 34: Sata Configuration

    SATA Configuration Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Advanced SATA Configuration (1) IDE Mode. (2) AHCI Mode. SATA Mode [IDE Mode] SATA Port1 Not Present SATA Port2 WDC WD1600AAJS (160.0 SATA Port3 Not Present SATA Port4 Not Present → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► SATA Mode This item is used to set the operating mode of your SATA ports. Setting options: [IDE Mode];...
  • Page 35: Usb Configuration

    If you enabled this function, it can significantly reduce the EMI (Electro Magnetic Interference) generated by the system, so to comply with FCC regulation. But if overclocking is activated, you better disable it. USB Configuration Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Advanced Enabled/Disabled All USB USB Configuration Devices USB Devices: 2 Hubs All USB Devices [Enabled] Legacy USB Support [Enabled] → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► All USB Devices This item is used to enable or disable the support for USB devices.
  • Page 36: Onboard Device Configuration

    Onboard Device Configuration Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Advanced Onboard Device Configuration Onboard LAN Controller [Enabled] Onboard LAN PXE OpROM [Disabled] PCI-E To PCI Bridge [Enabled] Audio Configuration Azalia HD Audio [Enabled] ▶ Super IO Configuration → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► Onboard LAN Controller This item is used to enable or disable the onboard LAN controller.
  • Page 37: Serial Port

    Super IO Configuration Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Advanced Enable or Disable Serial Port Super IO Configuration (COM) Super IO Chip IT8728 Serial Port 0 Configuration Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4; Change Settings [Auto] Device Mode [Standard Serial Po...] Serial Port 1 Configuration Serial Port [Enabled] Device Settings IO=2F8h; IRQ=3; → ← : Select Screen Change Settings [Auto] ↑ ↓ : Select Item Device Mode [Standard Serial Po...] Enter: Select +/-: Change Opt.
  • Page 38: Chipset

    Chipset Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Chipset ▶ North Bridge North Bridge Parameters ▶ ME Subsystem → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► North Bridge/ME Subsystem Press <Enter> to go to its submenu. North Bridge Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Chipset Memory Information Low MMIO resources align at...
  • Page 39 This item is used to enable or disable the VT-d feature. Intel Virtualization Technology for ® Directed I/O (VT-d) can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment. ► Initial Graphic Adapter This item is used to select which graphics controller is used as the primary boot device. ► IGD Memory This item is used to select the IGD(Integrated Graphics Device) share memory size. Default value is [64MB]. ► IGD Multi-Monitor This item is used to enable or disable the IGD Multi-Monitor by internal graphics device. Me Subsystem Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Chipset ME Subsystem Help Intel ME Subsystem Configuration ME Version ME Subsystem [Enabled] ▶ Integrated Clock Chip Configuration → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt.
  • Page 40 Intergrated Clock Chip Configuration Aptio Setup Utility - C opyright (C) 2010 American Megatrends, Inc. Chipset Integrated Clock Chip Configuration Integrated Clock Chip Enabled/Disabled. ICC OverClocking Lib Version Number of ICC Profiles : Current ICC Profile Index : ICC Enable [Enabled] ICC Set Clock Enables [Enabled] Send ICC Lock Registers [Enabled] Set Profile [Enabled] Set Profile Index → ← : Select Screen ▶ ICC OverClocking ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit...
  • Page 41: Boot

    boot Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Boot Boot Configuration Select the keyboard NumLock Bootup Numlock State [On] state Quiet Boot [Enabled] CSM16 Module Version 07.64 Boot Option Priorities Boot Option #1 [SATA: WDC WD1600AA...] Hard Drive BBS Priorities → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ► Bootup Numlock State This item defines if the keyboard Num Lock key is active when your system is started. The available settings are: On (default) and Off.
  • Page 42: Power

    Power Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Power ACPI Sleep State [S3] Select the highest ACPI sleep state the system will enter Resume By PS2 Keyboard [Enabled] when the SUSPEND button is Resume By PS2 Mouse [Enabled] pressed. Resume By Onboard LAN [Disabled] Resume By USB Device(s) [Enabled] Resume By PCI PME [Disabled] Resume By PCIE PME [Disabled] Resume By RTC [Disabled] Energy-using Products [Enabled] Restore AC Power Loss [Power Off] → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt.
  • Page 43 consumption of motherboard. Enabled: S1/S3/S4 is normal, S5 wake up only by pressing the power button. Disabled: Normal ACPI function. ► Restore AC Power Loss This item is used to set which state the PC will take with when it resumes after an AC power loss.
  • Page 44: Health

    Health Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Health Case Open Warning [Disabled] Case Open Warning CPU Temperature : +19 C System Temperature : +30 C CPU Fan Speed : 2008 RPM System Fan 1 Speed : N/A CPU Vcore : +0.972 V DRAM Voltage : +1.608 V +12V SYS : +11.971 V +5V SYS : +3.002 V VBAT : +3.120 V Smart Fan Function [Disabled] → ← : Select Screen ↑ ↓ : Select Item Enter: Select +/-: Change Opt.
  • Page 45: Security

    Security Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Security Set Setup Administrator Password Description Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password must be 3 to 20 characters long. Administrator Password → ← : Select Screen User Password ↑ ↓ : Select Item Enter: Select HDD Security Configuration +/-: Change Opt. HDD 0:WDC WD1600AA F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc. ►...
  • Page 46: Save & Exit

    Save & Exit Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Power Health Security Save & Exit Save & Exit Reset s ystem s etup a fter s aving Save Changes and Reset the c hanges. Discard Changes and Reset Restore Defaults Boot Override SATA: WDC WD1600AAJS-22B4A0 → ← : Select Screen ↑ ↓...
  • Page 47 The utility CD that came with the motherboard contains useful software and several utility drivers that enhance the motherboard features. This chapter includes the following information: ■ Utility CD content ■ Install driver and utility ■ FOX ONE ■ FOX LiveUpdate ■ FOX LOGO ■ FOX DMI Note : Because each module is independent, so the section number will be reorganized and unique to each module, please understand.
  • Page 48: Utility Cd Content

    Utility CD content This motherboard comes with one Utility CD. You can simply put it into your CD/DVD-ROM drive, and the main menu will be displayed on your PC screen to guide you how to install. 1. Install Driver Use these options to install all the drivers for your system. You should install the drivers in order, and you need to restart your computer after all the drivers have been installed. Items for Windows XP: A. Intel Chipset Driver B. Intel VGA Driver C. Realtek HDA Audio Driver D. Realtek LAN Driver E. Intel Management Engine Driver Items for Windows Vista/7: A. Intel Chipset Driver B. Intel VGA Driver C. Realtek HDA Audio Driver D. Realtek LAN Driver E. Intel Management Engine Driver 2. Software Utilities Use these options to install additional software programs. FOX ONE is a very powerful user inter- face program which allows you to change your system setting without going to BIOS. Some auto features help user to improve (or overclock) your system without being a computer literate. Items for Windows XP: A. FOX ONE B. FOX LiveUpdate C. FOX LOGO D. FOX DMI E. Microsoft DirectX 9.0...
  • Page 49: Install Driver And Utility

    Install driver and utility This motherboard comes with one DVD, after installing the Operating System, you can simply put it into your DVD-ROM drive, and the main menu will be displayed on your PC screen to guide you how to install. 1. Driver Use these options to install all the drivers for your system. You must click "Intel Chipset Driver" to install it first. After that, you can click ”One Click Setup” and then choose the items you want to install, or you can click on each individual driver to install it manually. Manual Installation Step by Step Automatic Installation by One Click Drop to System Tray Exit the program Visit Foxconn's Show Utilities Show Drivers Browse CD View the User’s Manual Website Choose the items you want to Install...
  • Page 50 2. Utility Use these options to install additional software programs. And click “User’s Manual“ button to view the product manual.
  • Page 51: Fox One

    foX oNe FOX ONE is a powerful utility for easily modifying system settings. It also allows users to monitor various temperature values, voltage values, frequencies and fan speeds at any time. With FOX ONE, you can : ■ Modify system performance settings, such as the CPU and memory bus speeds, CPU voltages, fan speeds, and other system performance options. ■ Monitor hardware temperatures, voltages, frequencies and fan speeds. Depending on hardware support, voltage monitoring and Fox Intelligent Stepping features are optional and only supported in some models. If the option is selectable, it also means the feature is supported. ■ Voltage Monitoring is supported only in FOX ONE Premium & Deluxe products. ■ Fox Intelligent Stepping is supported only in FOX ONE Deluxe products. Supporting Operating Systems : ■ Windows 2000 ■ Windows XP (32-bit and 64-bit) ■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit) ■ Windows 7 (32-bit and 64-bit) Using FOX ONE : The very first time you run FOX ONE, F.I.S. Calibration function (FOX Intelligent Stepping) will require you to calibrate the CPU’s loading. Click “OK” to proceed and start the Utility. F.I.S. is a feature of FOX ONE, which can automatically adjust your CPU clock based on your current system loading. Before you running the FOX ONE program, the system parameters (such as CPU clock, voltage...etc.) are controlled by BIOS settings. After you run FOX ONE, it will take over, and the controlling right will be transferred to FOX ONE. Later, if you exit FOX ONE, then BIOS control will be back again.
  • Page 52: Main Page

    1. Main Page Show CPU Toolbar Information Alert Lamp Switch Button Skin Button Exit Minimum Configuration Homepage Monitor Frequency/Voltage/Fan speed/Temperature value Toolbar Use the toolbar to navigate to other pages. Alert lamp When the system is in healthy state, the color of alert lamp is green. When the system is in abnormal state, the alert lamp color is red. Switch button Click this button, it will simplify the whole FOX ONE control panel to a smaller information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any place on your screen to help you monitoring system status. Exit FOX ONE Click here to go back to FOX ONE full screen Click here will drop the FOX ONE to Windows system tray...
  • Page 53 Skin button There are more choices of FOX ONE screen panels. Click this button, you can select your favorite skin (FOX ONE Panel). Click the new skin picture to select the new skin Apply the changes Cancel the changes exit Click this button to exit the program. Minimum Click this button to drop the FOX ONE to Windows system tray located at the lower right corner of your screen. Homepage Click this button to visit Foxconn motherboard website : http://www.foxconnchannel.com...
  • Page 54 Configuration This menu allows you to configure : 1). Monitor interval (ms) : This is to define the interval of different messages of system settings which are to be displayed on Simple Mode screen. Minimum value is 1 second. 2). Simple Mode : To select which message of system settings are to be displayed in the Simple Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one by one in Simple Mode. 3). F.I.S. Calibration (FOX Intelligent Stepping, Optional) This function will re-calibrate the CPU's loading, and it may take several minutes to proceed. The FOX ONE calibration process will apply different loadings to your CPU, record PWM IC voltage together with the CPU clock running at these loadings, so it can define and estimate within a particular range of system loading, what the CPU clock should be.
  • Page 55 Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Yes. Step 2 : After data is collected, it will ask you to restart your computer now. Later on, when the FOX ONE program is activated, and F.I.S. feature (in CPU Page) is also enabled, FOX ONE will automatically adjust your CPU clock according to your system loadings. (Loadings are like Power Gaming, Data Mining...etc.)
  • Page 56: Cpu Control

    2. CPU Page - CPU Control This page lets you select (or overclock) CPU clock to meet the current performance level of the system. The fastest and suitable CPU clock running for current system can be calculated by FOX ONE automatically or manually input by yourselves. Manual : You can press the up/down button to adjust your CPU clock. Auto : Click this button to let FOX ONE check the highest CPU clock you can use. System will raise the CPU clock step by step until it hangs, you can then push the RESET button on your PC panel to restart the system. When system restarts, run FOX ONE again, it will display a recommended highest CPU clock for you, click <Yes> to apply it. Go to CPU page Adjust by manual Press Auto button to let FOX ONE check the highest CPU clock you can use. Reset the FIS Features : Apply the changes Select the different changes benchmarks A message informs you to push RESET button later if the system hangs finally. Click Yes to continue.
  • Page 57 You can see the system is raising CPU clock until the system hangs. Push RESET button on the front panel of your system to restart the computer. Run FOX ONE program again, it will inform you the previous test found that 255MHz is the recommended CPU clock for your system. Click Yes to apply it to your system. Now, your system is running at a CPU clock of 255MHz.
  • Page 58: Frequency Control

    FOX Intelligent Stepping (F.I.S., Optional) Select FOX Intelligent Stepping will allow your system to automatically adjust your CPU clock rate based on different system loadings. For example, if you select Power Gaming, CPU clock will be driven to run at its maximum speed. While in Energy Saving, CPU will lower down its speed to a minimum. The four benchmarks - Power Gaming, Data Mining, Office and Energy Saving, the references of their system loading were calculated and defined in the FIS Calibration option of Configuration menu. Select Auto, CPU will automatically adjust its clock according to current system loading. 3. Frequency Page - Frequency Control This page lets you set memory and PCI Express frequencies by manual. Go to Freq. page Close this page Select the option you want to set Adjust by manual Reset the changes Apply the changes...
  • Page 59: Limit Setting

    4. Limit Setting 4.1 Limit Setting - CPU Temperature This page lets you to set CPU high limit temperature and enable the alert function. Go to Limit Show current CPU Setting page temperature value Enable alert function when the CPU temperature is higher than high limit value Show current high limit value of the CPU temperature Set high limit by dragging the lever 4.2 Limit Setting - System Temperature This page lets you to set system high limit temperature and enable the alert function. Show current system temperature value Enable alert function when the system temperature is higher than high limit value Show current high limit value of system temperature Set high limit by dragging the lever...
  • Page 60 4.3 Limit Setting - CPU Fan This page lets you to set CPU fan low limit rpm and enable the alert function. Show current CPU fan rpm value Enable alert function when the CPU fan runs slower than the low limit rpm value Show current low limit rpm value of CPU fan Set low limit rpm by dragging the lever 4.4 Limit Setting - System Fan This page lets you to set system fan low limit rpm and enable the alert function. Show current system fan rpm value Enable alert function when the system fan runs slower than low limit rpm value Show current low limit rpm value of system Set low limit rpm by dragging the lever...
  • Page 61: Voltage Control

    4.5 Limit Setting - FAN1 Fan This page lets you to set FAN1 fan low limit rpm and enable the alert function. Show current FAN1 fan rpm value Enable alert function when the FAN1 fan runs slower than low limit rpm value Show current low limit rpm value of FAN1 fan Set low limit rpm by dragging the lever 5. Voltage Page - Voltage Control (Optional) This page lets you set CPU voltage, memory voltage and North Bridge voltage manually. CPU voltage can be stepped up/down by a unit of 12.5mV, while memory is 0.05V/step, and North Bridge is 0.04V/step. Go to Voltage page Select the option you want to set Adjust by manual Reset the changes Apply the changes...
  • Page 62: Fan Control

    6. Fan Page - Fan Control This page lets you enable Smart Fan function or set the fan speed by manual. When Smart Fan is selected, you must use a 4-pin CPU cooler in your system. Go to Fan page Enable or disable smart fan function Set fan speed by dragging the lever Apply the changes...
  • Page 63: Fox Liveupdate

    FOX LiveUpdate FOX LiveUpdate is a useful utility to backup and update your system BIOS, drivers and utilities by local or online. Supporting Operating Systems : ■ Windows 2000 ■ Windows XP (32-bit and 64-bit) ■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit) ■ Windows 7 (32-bit and 64-bit) Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to [Disabled] when running this application. Using FOX LiveUpdate : 1. local Update 1-1 local Update - bIoS Information This page lets you know your system BIOS information. Minimum Link to website Exit Show current Toolbar BIOS information *** : please refer to the physical motherboard for detail.
  • Page 64 1-2 local Update - backup This page can backup your system BIOS. You can click “Backup”, and key in a file name, then click “Save” to finish the backup operation. The extension of this backup file is ".BIN" for Award BIOS and ".ROM" for AMI BIOS. Default directory is "C:\Desktop\My Documents" in Windows XP and "Documents" in Vista. Make sure you can remember the file name together with the directory which it is stored, prevented that you may need them to recover your BIOS later. Key in a BIOS name Click here 1-3 local Update - Update This page helps you to update your BIOS from a local file. After click “Update”, An alert message will be displayed to ensure if you really want to continue, click “Yes” to confirm. A setup wizard will guide you to load a local BIOS file to finish the operation. You must remember from which directory to load your new BIOS file (with an extension of ".BIN" for Award BIOS, ".ROM" for AMI BIOS) before the setup wizard starts. FOX LiveUpdate can automatically backup old BIOS before update. This feature can be enabled in the "Configure-System" setup. Please refer to "Configure-System" section for more detail. The default backup directory is C:\LiveUpdate_Temp, but the backup file name will be automatically generated. It is hard to find it out from a backup directory, and we recommend you using Explorer to check date/time message of this backup file to find it out and write its name down to remember it.
  • Page 65: Online Update

    2. online Update 2-1 online Update - Update bIoS This page lets you update your system BIOS from Internet. Click “start”, it will search the new BIOS from Internet. Then follow the wizard to finish the update operation. Click here Current information Search new BIOS from Internet Select BIOS to update Browse detailed information Update BIOS Close the window 2-2 Online Update - Update Driver This page lets you update your system drivers from Internet. Click “start”, it will search the new drivers from Internet. Then follow the wizard to finish the update operation. Click here Current information Search new drivers from Internet...
  • Page 66 Select the driver to update Browse detailed information Install the selected driver Close the window 2-3 online Update - Update Utility This page lets you update utilities from Internet. Click “start”, it will search the new utilities from Internet. Then follow the wizard to finish the update operation. Click here Current information Search new utilities from Internet Select the utility to update Browse detailed information Install the selected utility Close the window...
  • Page 67 2-4 online Update - Update All This page lets you update your system drivers from Internet. Click “start”, it will search all new BIOS/drivers/utilities from Internet. Then follow the wizard to finish the update operation. Click here Current information Search all new BIOS/ drivers/utilities from Internet Browse detailed BIOS information Browse detailed driver information Browse detailed utility information Close the window...
  • Page 68: Configure

    3. Configure 3-1 Configure - option This page lets you set auto search options. After you enable the auto search function, FOX LiveUpdate will start its searching from Internet and if any qualified item found, it will pop out a message on the task bar to inform you to do the next step. Click here Set auto search options Set auto search the latest FOX LiveUpdate Select search which kind of versions Reset to default value Apply the changes Double click on the icon as show below, you can see the detailed information. Double click here...
  • Page 69 When you enable "Auto Search FOX LiveUpdate", if your FOX LiveUpdate version is older, it will auto search from internet and prompt you to install the new version. Prompt you to install the new FOX LiveUpdate 3-2 Configure - System This page lets you set the backup BIOS location and determine if the FOX LiveUpdate can auto run when the system starts up. Click here Set the location of download files or auto backup BIOS Determine if the FOX LiveUpdate can auto run when the system starts up Apply the changes Reset to default value...
  • Page 70: About & Help

    3-3 Configure - Advance This page lets you select to flash BIOS / Boot Block and clear CMOS. If you choose Flash Boot Block, it means BIOS is not protective, and you must make sure the flash process is continuous and without any interruption. Click here Select which BIOS ROM to flash(Only available to motherboard with backup BIOS ROM ) Select to flash Boot Block Select to clear CMOS Apply the changes Reset to default value We recommend that you had better keep the default setting unchanged to avoid any damage. 4. About & Help This page shows some information about FOX LiveUpdate. Click here Show information about FOX LiveUpdate...
  • Page 71 foX loGo FOX LOGO is a simple and useful utility to backup, change and delete the boot time Logo. The boot Logo is the image that appears on screen during POST (Power-On Self-Test). You can prepare a JPG image (1024x768) file, then use FOX LOGO to open it and change the boot time Logo. Boot time Logo will be displayed if you enable the BIOS "Quiet Boot" setting in "Advanced BIOS Features" menu. Supporting Operating Systems : ■ Windows 2000 ■ Windows XP (32-bit and 64-bit) ■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit) ■ Windows 7 (32-bit and 64-bit) Using FOX LOGO: Main Page Main screen Exit Backup Minimize Change Website About Delete When you change Logo or delete current Logo, the system will flash BIOS file auto- matically. During this time, please DO NOT shut down the application and the system, or the motherboard will be damaged seriously.
  • Page 72 foX DMI FOX DMI is a full Desktop Management Interface viewer, and it provides three DMI data formats : Report, Data Fields and Memory Dump. With DMI information, system maker can easily analyze and troubleshoot your mother- board if there is any problem occurred. Supporting Operating Systems : ■ Windows 2000 ■ Windows XP (32-bit and 64-bit) ■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit) ■ Windows 7 (32-bit and 64-bit) Using FOX DMI: Please operate this utility as the comments shows. Click here to select Click here to select the type you want the DMI Data format to view. you need...
