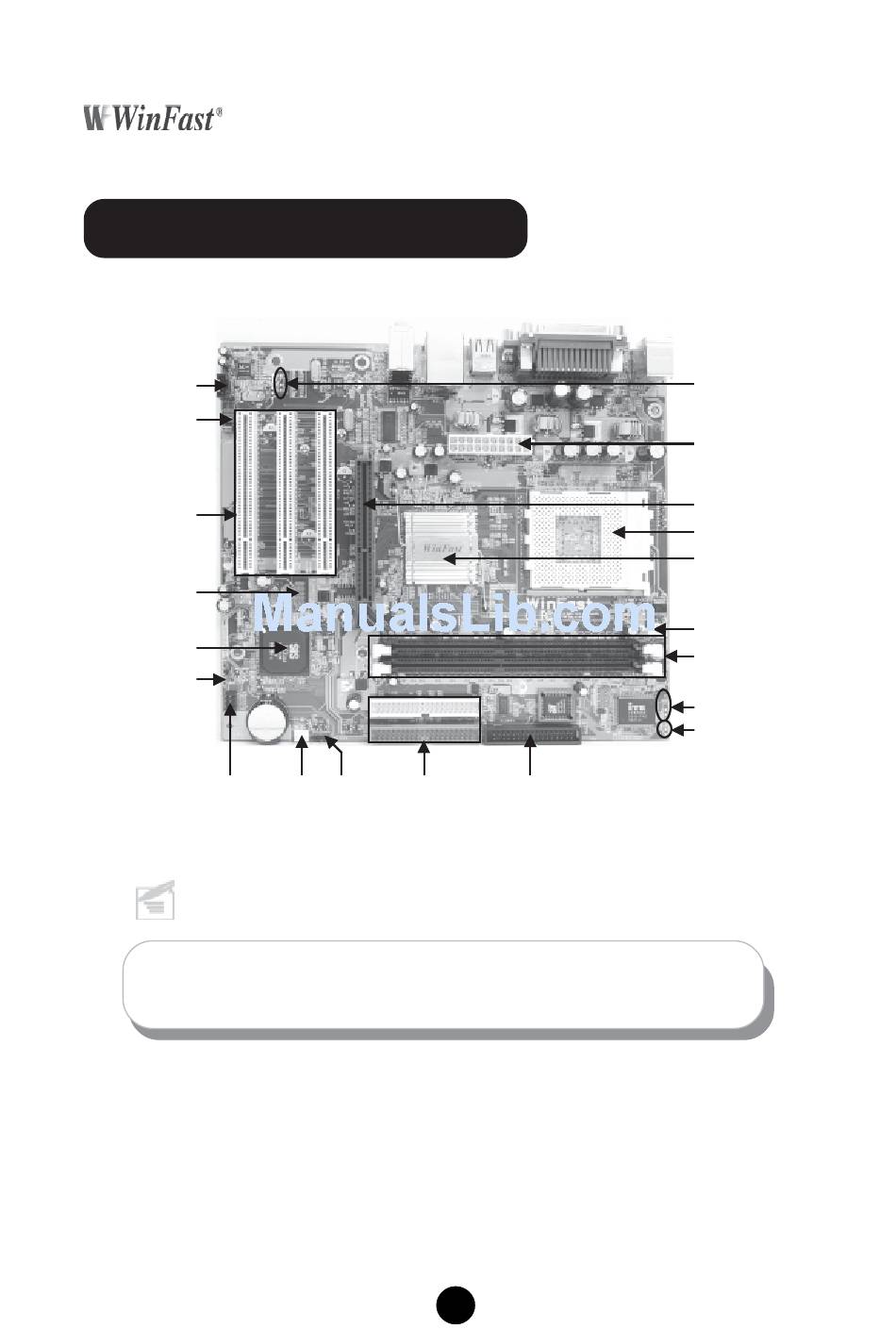

K7S741MG/K7S741GXMG Layout
CD_IN Connector
Front Audio Connector
PCI Expansion Slots
USB2.0 Connector
SiS 963L Chipset
Clear CMOS Jumper
Front Panel
Connector
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
Easy Installation Guide
SYS FAN
SPEAKER
ATA 66/100/133
Connector
Connector
IDE Connectors
FDD Connector
P/N: 91-185-U41-M0-0E
1
S/PDIF_OUT Connector
(optional)
ATX Power Connector
8X / 4X AGP Slot
462-pin CPU Socket
SiS 741/741GX Chipset
CPU FAN Connector
184-pin DIMM Slots
IR Connector (optional)
BIOS-Protection Jumper
(optional)
Advertisement
Related Manuals for Foxconn K7S741MG
Summary of Contents for Foxconn K7S741MG
- Page 1 K7S741MG/K7S741GXMG Layout CD_IN Connector Front Audio Connector PCI Expansion Slots USB2.0 Connector SiS 963L Chipset Clear CMOS Jumper Front Panel SYS FAN Connector Connector Remark: The above motherboard layout is provided for reference only; please refer to the physical motherboard.
- Page 2 K7S741MG/K7S741GXMG Rear Panel PS/2 Mouse Connector PS/2 Keyboard Connector Serial Port (COM1) PS/2 Mouse Connector This green 6-pin connector is for a PS/2 mouse. PS/2 Keyboard Connector This purple 6-pin connector is for a PS/2 keyboard. Serial Port (COM1) This 9-pin COM1 port is for pointing devices or other serial devices.
-
Page 3: Accessory Checklist
Accessory Checklist K7S741MG/K7S741GXMG Motherboard (x1) WinFast Utility CD (x1) Easy Installation Guide (x1) IDE Ribbon Cable (x1) FDD Ribbon Cable (x1) I/O Shield (x1) 1. Support CPU & Memory CPU: K7S741MG: Supports AMD K7 Duron, Athlon, Athlon XP Supports 266/333/400 MHz FSB... - Page 4 2. Clear CMOS Jumper: CLS_CMOS You can clear CMOS to restore default system setting. To clear the CMOS, follow the procedures described below. 1. Turn off the AC power supply and connect pin 1 and 2 together using the jumper cap .
-
Page 5: Front Panel Connector: Fp1
4. Front Panel Connector: FP1 Attach the power LED, IDE LED, reset switch and power switch connectors to the corresponding pins. 5. CPU FAN & FAN1 Plug the CPU cooling fan cable into the 3-pin CPU FAN power supply on the mainboard. Connect the case cooling fan connector to FAN1. - Page 6 6. IrDA Header (optional): IR The connector supports wireless transmitting and receiving device. Before using this function, configure the settings of IR Mode from the “Integrated Peripherals” section of the CMOS Setup. 7. USB Header: F_USB1 The USB header is available for additional USB port if the USB ports on the rear panel are inadequate.
- Page 7 8. CD_IN Connector: CD_IN CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM drive through a CD audio cable. 9. Front Audio Connector: F_AUDIO The audio interface provides two kinds of audio output choices: the Front Audio, the Rear Audio.
-
Page 8: Speaker Connector: Speaker
10. Speaker Connector: SPEAKER The speaker connector is used to connect speaker of the chassis. 11. S/PDIF_Out Connector (optional): SPDIF_OUT The S/PDIF out connector is capable of providing digital audio to external speak- ers or compressed AC3 data to an external Dolby digital decoder. Empty SPEAKER SPDIF_OUT... - Page 9 12. 5.1 Channel Audio Effects The motherboard is equipped with the Realtek ALC655 chip, which provides sup- port for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer channel. ALC655 allows the board to attach 4 or 6 speakers for a better surround sound effect.
