Si10-416_B
1. Signal transmitter
2. Display
It displays the current settings.
(In this illustration, each section is shown with all its
displays ON for the purpose of explanation.)
3. ECONO button
4. POWERFUL button
5. TEMPERATURE adjustment buttons
6. ON/OFF button
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. QUIET button
OUTDOOR UNIT QUIET operation
9. FAN setting button
It selects the airflow rate setting.
10. SWING button
11. MOLD PROOF button
MOLD PROOF operation
12. SENSOR button
INTELLIGENT EYE operation
13. ON TIMER button
14. OFF TIMER button
15. TIMER setting button
16. TIMER CANCEL button
17. CLOCK button
18. RESET button
Restart the unit if it freezes.
Use a thin object to push.

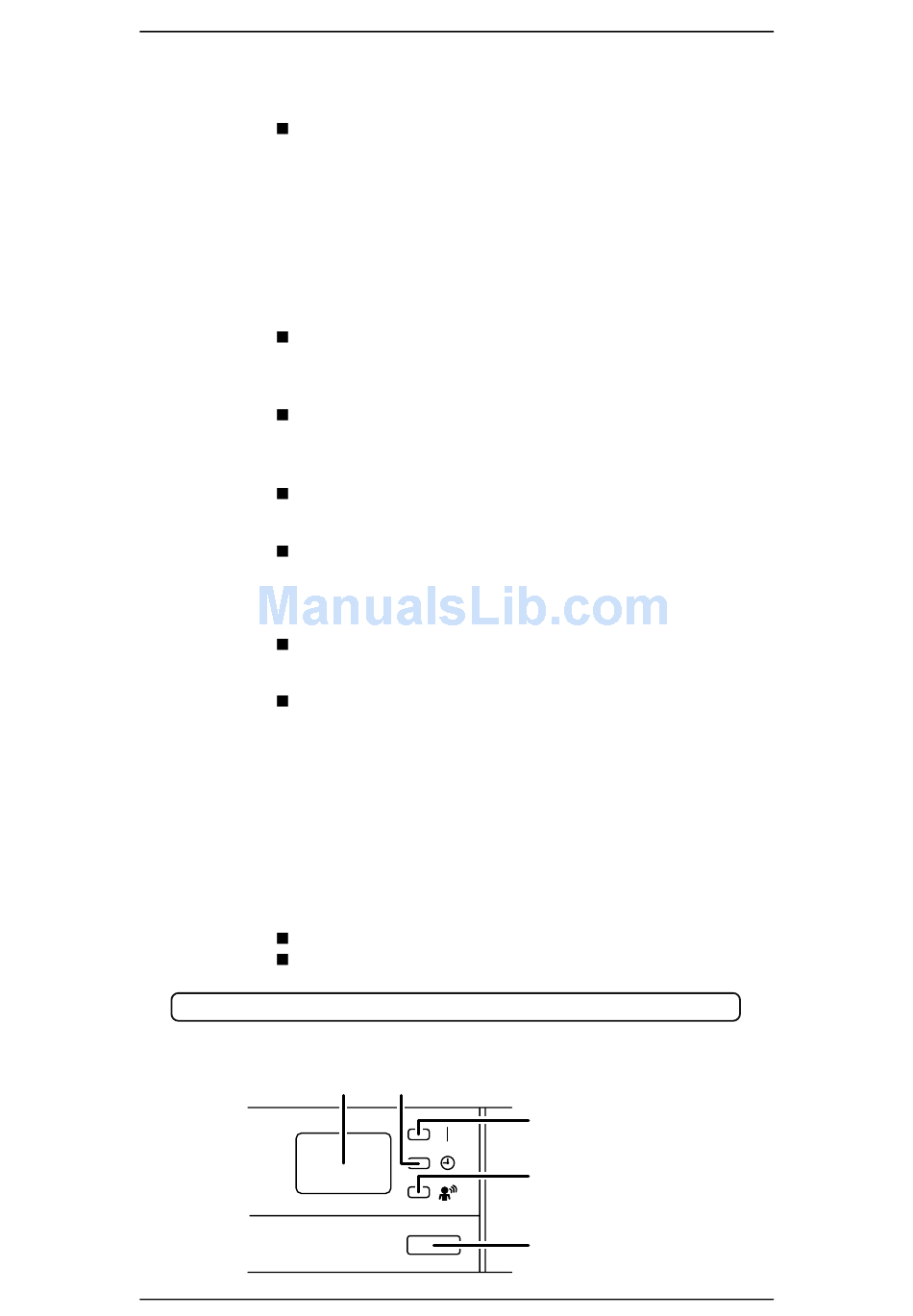

Unit operation panel and display panel

Signal
receiver
Remote Controllers
TIMER lamp
(yellow)
Operation lamp
(green)
INTELLIGENT
EYE lamp (green)
Indoor Unit
ON/OFF switch
ARC433 Series
213
