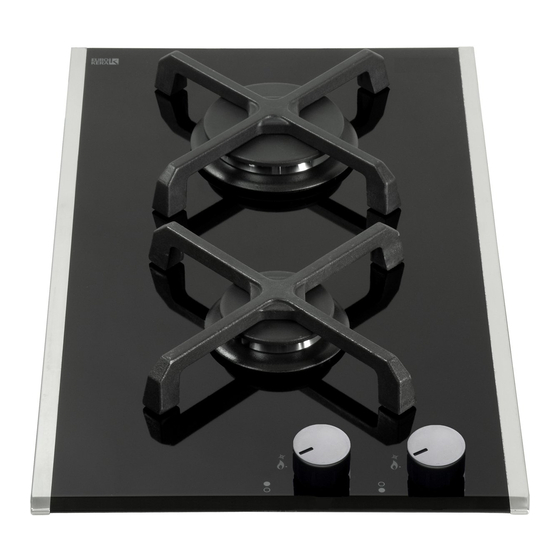

- Page 1 INSTALLATION and SERVICE INSTRUCTIONS USE and CARE INSTRUCTIONS BUILT-IN GAS HOBS Models: DE30WGB - DE302GB distributed by DèLonghi Pty Ltd...
-
Page 2: Product Label
Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. - Page 3 IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL APPLIANCES Use of any electrical appliance implies the necessity to follow a series of fundamental rules. In particular: Never touch the appliance with wet hands or feet; o not operate the appliance barefooted; o not allow children or other incapable people to use the appliance without supervision.
-
Page 4: Installation
INSTALLATION CAUTION: This appliance must be installed in accordance with these installation instructions, local gas fitting regulations, municipal building codes, AS5601 / NZS5261 water supply regulations, electrical wiring regulations, - Gas Installations and ony other relevant statutory regulations. This appliance shall be only be serviced by authorized personnel. This appliance is to be installed only by an authorised person. - Page 5 N.B. The connection of the appliance to earth is mandatory. If the installation requires alterations to the domestic electrical system call a qualified electrician. He should also check that the socket cable section is suitable for the power drawn by the appliance. Replacing the power cord must be done by a qualified electrician in accordance with the instructions supplied by the manufacturer and in compliance with established electrical regulations.
- Page 6 CLEARANCES: Installation clearances and protection of combustible surfaces shall comply with the current local regulations e.g. AS5601 / NZS5261 - Gas Installations code. Figure 3 Figure 4 Important note: This appliance shall not be used as a space heater, especially if installed in marine craft or caravans.
- Page 7 The installation shall comply with the dimensions in Figures 3 and 4, bearing in mind that: A partition between the base of the hob and the cupboard below should be fitted 0 mm below the workbench surface if the cupboard is to be used for storage.
- Page 8 Figure 6 6, 7). s. 3, 4. Figure 7...
-
Page 9: Gas Supply
GAS SUPPLY: This appliance is suitable for use with Natural Gas or ULPG. (Check the “gas type” sticker attached to the appliance). For Natural Gas the gas supply must be regulated to obtain a pressure of 1 kPa with al l burners operating. - Page 10 Customer Service Centre should be called to obtain the nearest authorized Delonghi Service Agent. 7. Where the appliance data plate cannot be easily read with the appliance in the...
- Page 11 TABLE FOR THE CHOICE OF THE INJECTORS ULPG Natural Gas Test Point 2.75 Pressure (kPa) Burner Injector Orifice Gas Consumption Injector Orifice Gas Consumption [mm] [MJ/h] [mm] [MJ/h] Semi-rapid 1.12 6.30 0.70 6.30 Rapid 1.45 10.40 0.91 10.80 1.60 12.70 0.95 11.90 Triple ring...
- Page 12 CONVERSION PROCEDURE (to convert to Natural gas or to ULPG) REPLACING THE INJECTORS The conversion procedure must be carried out only by an authorised person. This appliance is suitable for use with Natural gas or Universal LPG (check the “gas type”...
-
Page 13: Minimum Burner Setting Adjustment
MINIMUM BURNER SETTING ADJUSTMENT Check whether the flame spreads to all burner ports when the burner is lit with the gas tap set to the minimum position. If some ports do not light, increase the minimum gas rate setting. Check whether the burner remains lit even when the gas tap is turned quickly from the maximum to the minimum position. -
Page 14: Use And Care
USE and CARE CAUTION: This appliance must be used only for the task it has explicitly been designed for, that is for domestic cooking of foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous. Do not use this appliance as a space heater. - Page 15 LIGHTING GAS BURNERS Check that the electricity is switched on to allow spark ignition. Make sure that all controls are turned to zero. The gas flow to the burner is controlled by a tap incorporating a safety cut-off valve. If the burner flame should go out for some reason, the safety valve will automatically stop the gas flow.
- Page 16 1 minute and then repeat the lighting procedure. If after relighting the burner, the flame is still abnormal, turn the burner off and contact our Customer Service Centre to obtain the nearest authorized Delonghi Service Agent. COOKING HINTS FOR GAS HOBS The burners are different sizes, and can be used in different ways.
- Page 17 CORRECT USE OF TRIPLE-RING BURNER - DE30WGB model only The flat-bottomed pans are to be placed directly onto the pan-support. To use the WOK you must place the wok stand in the CORRECT position as shown in fig. 20. Figure 19...
- Page 18 Cleaning and Maintenance...
- Page 20 22). Figure 22...
- Page 21 Figure 23...
- Page 22 Figure 24 Figure 25...
- Page 23 Figure 28 27 - 28 Figure 26 Figure 29 Figure 27...
-
Page 24: Service And Maintenance
Servicing the appliance: Service may be obtained by contacting our Customer Service Centre to locate the nearest Authorised Delonghi Service Agent: Servicing shall be carried out only by authorized personnel. The appliance shall not be modified. - Page 27 Descriptions and illustrations in this booklet are given as simply indicative. The manufacturer reserves the right, considering the characteristics of the models described here, at any time and without notice, to make eventual necessary modifications for their construction or for commercial needs.
- Page 28 cod. 1103763 ß1...
