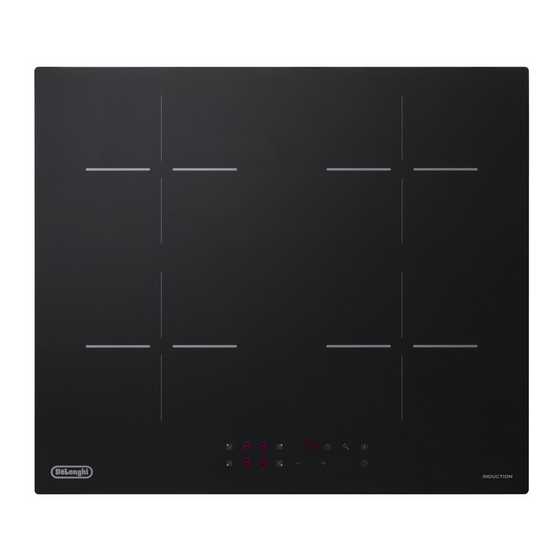

- Page 1 D E’ LO N G HI C OO KIN G INSTALLATION and SERVICE INSTRUCTIONS USE and CARE INSTRUCTIONS D EI ND6 4P TOUCH CONTROL INDUCTION COOKING HOB distributed by ELBA Appliances Australia (a Division of Fisher&Paykel Australia)
- Page 2 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
-
Page 3: Important Safety Precautions And Recommendations
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. - Page 4 • IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling or cleaning this appliance. • Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use. The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.
- Page 5 • The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance. • WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use. Care should be taken to avoid touching heating elements on –...
- Page 6 • If the power supply cable is damaged, it must be replaced only by an authorized service agent in order to avoid a hazard. • If the appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, means for disconnection...
- Page 7 explode by exceeding pressure while heating. There is a burning risk with open tins as well, because the integrated temperature protection will not work correctly. IMPORTANT WARNING: The induction hob complies – with the applicable Standards for domestic cooking appliances. Therefore it should not interfere with other electronic units.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Cooktop model DEIND64P Cooking zones 4 induction zones Supply voltage 220-240 V~, 50-60 Hz Total power (maximum total power of the cooktop). 2200 W Cooktop dimensions W x D x H (mm) 590 x 520 x 55 Cut-out dimensions W x D (mm) - Page 9 Advice for the installer...
-
Page 10: Installation
INSTALLATION IMPORTANT : • This appliance is to be installed only by an authorised person according to the current local regulations and in observation of the manufacturer’s instructions. • Incorrect installation, for which the manufacturer accepts no responsibility, may cause personal injury of damage. This appliance shall only be serviced by authorized personnel. - Page 11 Fig. 1.1 Gasket L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) min. 50 Fig. 1.2 A (mm) B (mm) C (mm) min. 50 min. 20 Air intake Air outlet 5 mm...
-
Page 12: Fastening The Cooktop
FASTENING THE COOKTOP Before you install the cooktop, make sure that the work surface is square and level, and no structural members interfere with space requirements previously indicated. Each cooktop is supplied with a set of fixing springs and screws to fasten it into a working surface at least 30 mm thick. -
Page 13: Electrical Connection
ELECTRICAL CONNECTION IMPORTANT: Installation must be carried out according to the manufacturer’s instructions. Incorrect installation may cause harm and damage to people, animals or property, for which the manufacturer accepts no responsibility. Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains. -
Page 14: Electrical Connection Diagrams
ELECTRICAL CONNECTION DIAGRAMS Power supply Yellow/Green Blue Grey Power cord Brown Black Power supply Yellow/Green Blue Grey Power cord Brown Black Power supply Yellow/Green Blue Grey Power cord Brown Black Power supply Yellow/Green Blue Grey Power cord Brown Black V = 220-240 V~ = 400 V~ Fig. - Page 15 Advice for the user...
-
Page 16: Features And Technical Data
FEATURES AND TECHNICAL DATA Fig. 1.1 COOKING ZONES Induction cooking zone Ø 180 mm - 2000 W Induction cooking zone Ø 180 mm - 1500 W Induction cooking zone Ø 180 mm - 2000 W Induction cooking zone Ø 180 mm - 1500 W Note: The nominal powers may vary depending on the size and material of the pots used. -
Page 17: Use Of Induction Hob
USE OF INDUCTION HOB The ceramic hob is fitted with induction cooking zones. These zones, shown by painted areas on the ceramic surface, are controlled by a touch control system. Fig. 2.1 In the front central area of the hob, the displays of the touch control system indicate: = Cooking zone Off (not activated) = Cooking zone On (activated but not operating). - Page 18 INDUCTION COOKING SYSTEM When your induction hob is switched on and a cooking zone has been selected, the electronic circuits produce induced currents that instantaneously heat the bottom of the pan which then transfers this heat to the food. Cooking takes place with hardly any energy loss between the induction hob and the food. Your induction hob operates only if a correct pan with the right features is placed on a cooking zone.
-
Page 19: Using The Touch Controls
USING THE TOUCH CONTROLS • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. •... - Page 20 COOKWARE/COFFEE POT FOR INDUCTION COOKING The induction cooking system OPERATES ONLY if using correct cookware/coffee pot suitable for induction cooking (normally identified by an induction symbol on the bottom of the cookware/coffee pot). The use of not suitable cookware may cause damage to the appliance.
- Page 21 HOW TO TURN THE TOUCH CONTROLS ON AND OFF Fig. 2.3 Switching ON • Press the key (fig. 2.3). • After power on, to indicate that the induction hob is in standby mode: – the buzzer beeps once; – the displays of the cooking zones show –...
-
Page 22: Examples Of Cooking Power Setting
OPERATION TIME LIMIT OF Power level of Operation COOKING ZONES cooking zones time limit Each cooking zone is automatically 8 hours switched Off after a maximum preset time if no operation is performed. maximum preset time limit 8 hours depends on the set power level, as illustrated in this schedule. - Page 23 PROGRAM FOR AUTOMATIC SWITCHING OFF OF ONE OR MORE COOKING ZONES This function permits to set a timer from “ ” to “ ” minutes for automatic turning Off the cooking zone/s. With the touch control switched ON, proceed as follows (see also Fig. 2.6): Select the cooking zone by touching the relevant key of the cooking zone to be programmed.
- Page 24 Note: The program for automatic switch off can be cancelled at any time by selecting the relative cooking zone and then touching the timer/automatic cooking programming selection key (the timer display will show “ ” flashing and then “ ”). Alternatively, by switching off manually the relative cooking zone, the program for automatic switch off will be cancelled.
-
Page 25: Technical Data
PAUSE FUNCTION (“STOP+GO”) This function can be used to pause a cooking process which has already been set, either in manual mode or using the automatic switching off feature. When it is selected, any cooking is stopped immediately and switches into standby mode; the control area remains active only for the keys (pause function “STOP+GO”) and (ON/OFF). - Page 26 MALFUNCTIONING AND ERROR CODES If the induction cooktop (or a cooking zone) turns Off unexpectedly, a buzzer (beep) sounds and an error code is shown on the timer display (typically alternating with one or two digits), this indicates a technical fault. Switch Off the cooktop and disconnect it from the mains.
-
Page 27: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE CERAMIC HOB Before you begin cleaning, disconnect the cooktop from mains power supply. • Remove spillages and other types of incrustations. • Dust or food particles can be removed with a damp cloth. • If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive or scouring powders can damage the glass surface of the hob. -
Page 28: Servicing The Appliance
SERVICE AND MAINTENANCE SERVICING THE APPLIANCE Service may be obtained by contacting our Customer Service Centre to locate the nearest Authorised ELBA APPLIANCES Service Agent shared services with Fisher and Paykel Australia PTY LTD (ELBA Appliances AUS, a division of F&P AUS PTY LTD). Servicing shall be carried out only by authorized personnel. -
Page 32: Service And Maintenance
D esc ri pt i o n s an d i ll ustrations i n this book let are gi ven a s s im p ly i nd ica ti ve . T he m an u f ac t u re r re serves the right, considering th e ch a ra cter is tics o f the SERVICE AND MAINTENANCE model s d es c ri be d he re, at any ti me and wi thout notice, to ma ke even tua l n ecess a ry modifi c at i o n s f o r t he i r construction or for co mm erci al n eed s.
