2 | DIVAR AN 3000
• sound a buzzer and/or show a warning
Local control
The unit can be easily operated and programmed via
the on-screen display menu system using:
• the supplied mouse
• the front panel control keys
• the supplied remote control
Video inputs, audio inputs/output, and alarm inputs/
outputs are located on the rear panel.
A choice of monitor outputs provide full-screen, multi-
screen and sequenced viewing:
• Three video connectors (BNC/VGA/HDMI) provide
simultaneous output for monitor A for live display
(with zoom) and playback (display can be frozen and
zoomed)
• A single BNC connector provides output to monitor B
(spot monitor) for live viewing

Network control

Use the PC software or built-in web application via a
network for live viewing, playback, and configuration.
Watermark
The DIVAR includes an authenticity check for both
local and remote archives, ensuring recording
integrity. An Archive Player is provided for playback of
secure video files and to check if video is authentic.
Smartphone App
A DIVAR Viewer App from Bosch for iOS and Android
devices is available for live viewing and PTZ control.
This means you can watch live video from cameras
connected to the DVR from anywhere in the world. You
can also control focus, pan, tilt and zoom on PTZ-
enabled cameras.
Functions
The DIVAR has the following features:
• 4, 8 or 16, auto-terminating camera inputs with 960H
resolution
• 4 audio inputs and 1 audio output
• 1 MIC input for talk input/output
• Simultaneous live viewing, recording, playback,
archiving, and remote streaming
• Choice of CVBS/VGA/HDMI monitor A outputs
• 10/100/1000Base-T Ethernet port for local or wide
area network connection
• RS‑485 / RS‑232 serial ports to control movable
cameras (PTZ)
• IR remote control, front panel keyboard and USB
mouse support for camera control
• Selectable PAL/NTSC TV monitor output mode
• Secret (covert) recording channel that can be locked
for unauthorized viewing
• Full-screen and multi-screen display capabilities in
live and playback modes for monitors
• 16 switching (alarm) inputs and 3 alarm outputs
• Alarm and error notification (screen, audible, warning
light, FTP, e-mail) and automatic record activation
• Motion detection and video loss detection
• DIVAR viewer App for live and PTZ control on
Smartphone (iOS and Android)
• Supports Bosch and Pelco PTZ control protocols
• Authenticity check in Archive player
• Manual and automatic recording (scheduled and
alarm)
• Multiple search modes (time, channel, type, motion,
smart motion within recorded images)
• Local video/audio archiving via USB and optional
built-in DVD burner
• Local video storage via optional built-in HDDs
Certifications and approvals
Standards
EMC Directive
2004/108/EC
EMC Immunity
EN 50130‑4:2011 *
EMC Emission
EN 55022:2010, +AC:2011. Class B conducted +
radiated emission
EN 61000-3-2:2006, +A1: 2009, +A2:2009
Mains harmonics
EN 61000-3-3:2008. Voltage fluctuations
Environment
EN 50130-5 Class 1
Low voltage
2006/95/EC
directive
Safety
EN 60950-1:2006, +A11:2009, +A1:2010,
+A12:2011, +AC:2011
USA: UL 60950-1: 2nd edition 2011-12-19
CAN/CSA-C22.2 No.60950-1-07, 2nd edition
2011-12
FCC
CFR Title 47 Part 15:2009 class B
EMC Australia
C-Tick
* Clause 8 (mains supply voltage dips and short interruptions): to meet the requirements of
this clause, auxiliary equipment (such as a UPS) must be used.
Region
Certification
Europe
CE
USA
UL
FCC
Canada
CSA

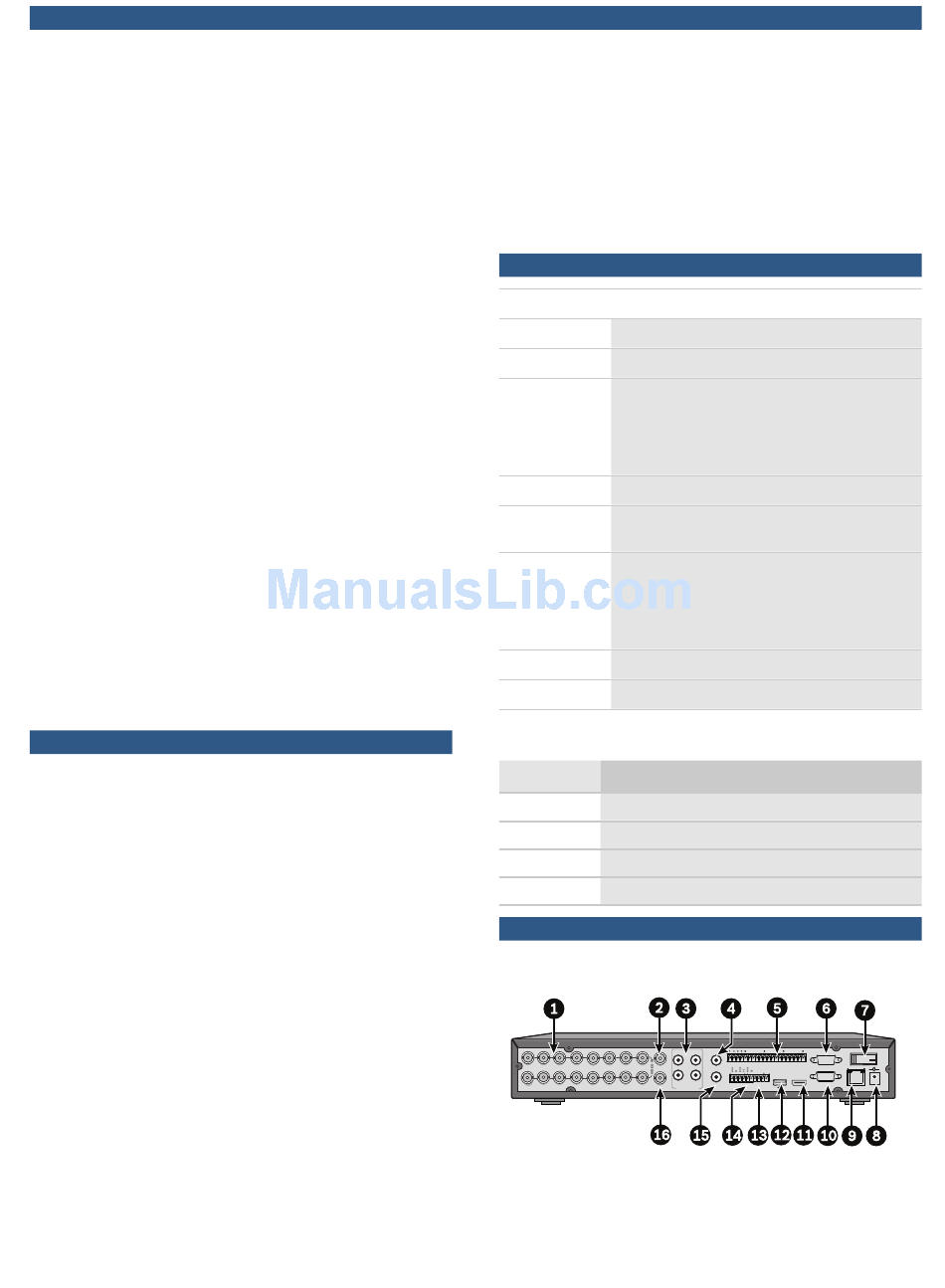

Installation/configuration notes
Connections on back of DIVAR 3000 (16-channel
version)
2
4
6
8
10
12
14
16
CVBS MON. A
2
1
1
3
5
7
11
13
15
9
CVBS MON. B
AUDIO IN
1 Camera inputs
2 CVBS output - Monitor A
ON
OFF
4
AUDIO OUT
5 6 7 8
9 10 11 12
13 14 15 16
0
ALARM IN
RS-232
-
+ _
G
G
3
VGA MON.A
MIC IN
ALARM OUT
RS-485
HDMI MON.A
ETHERNET
12VDC
9 RJ45 network connector
10 VGA output - Monitor A
+
