Video | DIVAR AN 3000
DIVAR AN 3000
www.boschsecurity.com

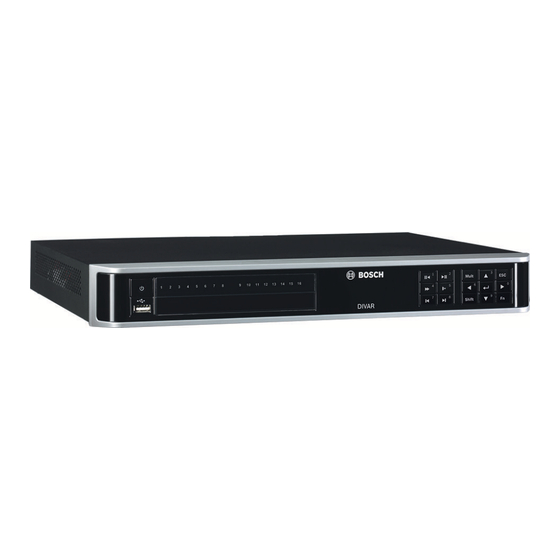

The DIVAR AN 3000 is a family of 4/8/16 channel
digital recorders that use the latest 960H high-
resolution video technology and state-of-the-art
compression techniques. These advanced
technologies, coupled with efficient network data
transmission, deliver the high security and reliability
required for modern surveillance systems.
Simultaneous remote or local monitoring, recording,
archive and playback are guided by simple menu
selections and operator commands. The recorders are
available with a number of storage capacities, and a
built-in DVD burner can be specified.
System overview
The DIVAR takes advantage of the latest H.264 video
and G.711 audio compression technology to
dramatically reduce bandwidth and storage
requirements while still delivering superb image and
audio quality. Armed with the newest 960H video
technology, DIVAR gives you the full benefits of the
latest 960H high-resolution cameras. With the ability to
capture more than 30% extra horizontal image
resolution compared to D1/CIF recorders, the proof is
in the pixels.
960H
RT
APP
960H RT high-resolution on HDMI output
u
Mobile device support (iOS, Android)
u
Remote alarm notification
u
Network function for remote viewing, playback and
u
control
Simultaneous monitoring, recording and playback
u
The DIVAR records multiple video and audio signals
while simultaneously providing live multi-screen
viewing and playback. Comprehensive search and
playback functions provide quick recall and viewing of
recorded video.
The DIVAR is not intended for use over a PoE switch.
Recording
The DIVAR is very easy to use. Simply connect the
cameras, apply power and let the unit record
automatically with no further intervention required.
The H.264 compression function significantly reduces
file size of recordings without sacrificing image quality.
The DIVAR can record at up to 25 (PAL) / 30 (NTSC)
images per second, per channel at 960H resolution.
Dome control
The DIVAR can control pan/tilt/zoom (PTZ) equipment
via RS‑485 / RS‑232 serial communications. PTZ
devices, including the AUTODOME from Bosch and a
number of third party domes, are supported.
Alarms
All models have extensive alarm handling functions
and telemetry control. Alarm functions include local
inputs and relay outputs, plus motion detection in
user-defined areas. If an alarm is detected, the DIVAR
can:
• send an e-mail notification and/or FTP push
• display an on-screen message

Advertisement

Table of Contents
loading

  Related Manuals for Bosch DIVAR AN 3000

  Summary of Contents for Bosch DIVAR AN 3000

  • Page 1 Network function for remote viewing, playback and control Simultaneous monitoring, recording and playback The DIVAR AN 3000 is a family of 4/8/16 channel The DIVAR records multiple video and audio signals digital recorders that use the latest 960H high- while simultaneously providing live multi-screen resolution video technology and state-of-the-art viewing and playback.
  • Page 2: Network Control

    EN 60950-1:2006, +A11:2009, +A1:2010, +A12:2011, +AC:2011 Smartphone App USA: UL 60950-1: 2nd edition 2011-12-19 A DIVAR Viewer App from Bosch for iOS and Android CAN/CSA-C22.2 No.60950-1-07, 2nd edition devices is available for live viewing and PTZ control. 2011-12 This means you can watch live video from cameras CFR Title 47 Part 15:2009 class B connected to the DVR from anywhere in the world.
  • Page 3: Technical Specifications

    3 | DIVAR AN 3000 Support for simultaneous CVBS/VGA/HDMI 3 Audio inputs 11 HDMI output - Monitor A output to Mon. A 4 Audio output 12 USB connector Monitors 5 Alarm inputs 13 RS485 connector for Dome control MON.A Live, playback, menus...
  • Page 4: Video Recording

    Built-in DVD+R/RW writer AWG26‑16 (0.13–1.5 mm) Flash memory or external HDD (FAT32) Alarm outputs 3 screw terminal outputs, cable diameter AWG26‑16 (0.13–1.5 mm) Network Bosch Video Client or Web Client software Audio inputs 4 RCA Mechanical Audio outputs 1 RCA Dimensions (WxDxH) 375 x 290 x 50 mm (14.8 x 11.4 x 2.0 in)
  • Page 5 5 | DIVAR AN 3000 DIVAR AN 3000 DIVAR AN 3000 960H/RT digital recorder for analog camera video 960H/RT digital recorder for analog camera video management. HDMI/VGA/CVBS outputs; audio; H.264; management. HDMI/VGA/CVBS outputs; audio; H.264; PTZ control; web interface; free viewing Apps;...
  • Page 6 Fax: +65 6571 2699 Phone +86 21 22181111 Fax: +55 19 2103 2862 www.boschsecurity.us www.boschsecurity.com apr.securitysystems@bosch.com Fax: +86 21 22182398 latam.boschsecurity@bosch.com www.boschsecurity.asia www.boschsecurity.com.cn www.boschsecurity.com © Bosch Security Systems 2013 | Data subject to change without notice 10821211147 | en, V7, 02. Dec 2013...
