Programming and Controlling Allegiant Functions

The Allegiant Main Control menu, displayed on the softkey display, uses the softkey buttons to
execute commands or to gain access to other submenus for additional programming/
configuration. Detailed command descriptions follow. Refer to the Allegiant Switcher
Instruction Book for additional information.
F.01U.080.637 | 1.92 | 2008.12
Exit Exits one menu and reverts to the main menu for the particular
function being programmed/controlled.
Device Lockout Accesses a softkey menu, allowing the locking/unlocking of
specified cameras and monitors.

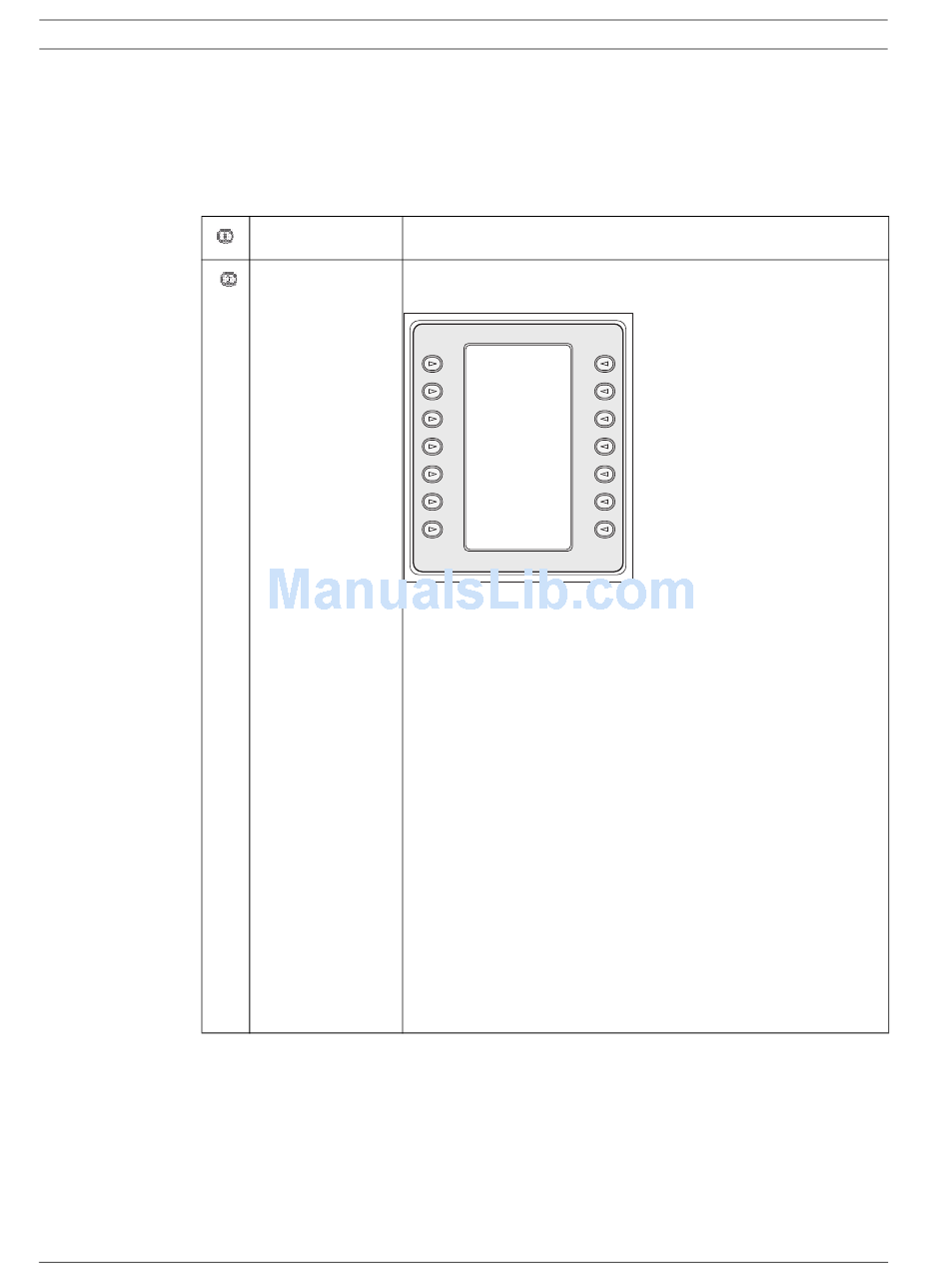

Figure 2.3 Device Lockout Menu
–
–
To exit the Device Lockout menu press EXIT.
User Manual
Exit
Monitor Monitor
Lock Unlock
Remote Remote
Lock Unlock
Monitor Lock/Unlock
– If the monitor to be locked/unlocked is not the present
monitor, press MON on the keypad. Then enter the
monitor number, followed by ENTER.
– Press the monitor Lock/Unlock softkey.
– If the monitor is locked, the display shows an ML on the
monitor's on-screen status display, indicating that the
monitor is locked. If the monitor is unlocked, ML is
removed.
Remote Lock/Unlock
– If the Camera to be locked/unlocked is not the present
camera, enter the camera number followed by ENTER.
– Press the Remote Lock/Unlock softkey.
– If the camera is locked, the display shows an RL in the
monitor's on-screen status display, indicating that the
remote device is locked. If the camera is unlocked, RL is
removed.
