Controlling Allegiant Series Video Switchers

Before you can take control of an Allegiant Video Switcher, you may have to perform a log-on
procedure to gain access to the Allegiant Main Control menu to control the switcher.
Note: This chapter applies to the KBD-Universal Model only.
–
–
–
–
–
–
2.1

The Allegiant Main Control Menu

To access the Allegiant Main Control menu:
1.
2.
3.
Bosch Security System, Inc.
The keyboard generates a short, audible "beep" when first entering the Allegiant log-in
screen. This beep notifies operators that the keyboard is ready to accept user number
and password data. The keyboard may not correctly accept data entered before this
beep.
If log-on information is required, the status display requests a USER NUMBER. Enter the
number using the keypad and press ENTER.
The status display requests a PASSWORD. Enter the password using the keypad and
press ENTER.
If an invalid user number or password is entered, the status display requests the log-on
again.
Following a successful log-on, the softkey display shows the Allegiant Main Control menu,
as illustrated in
If user log-on is not required, the softkey display shows USER LOGGED ON briefly, then
displays the Allegiant Main Control menu.
Monitor
123
Allegiant

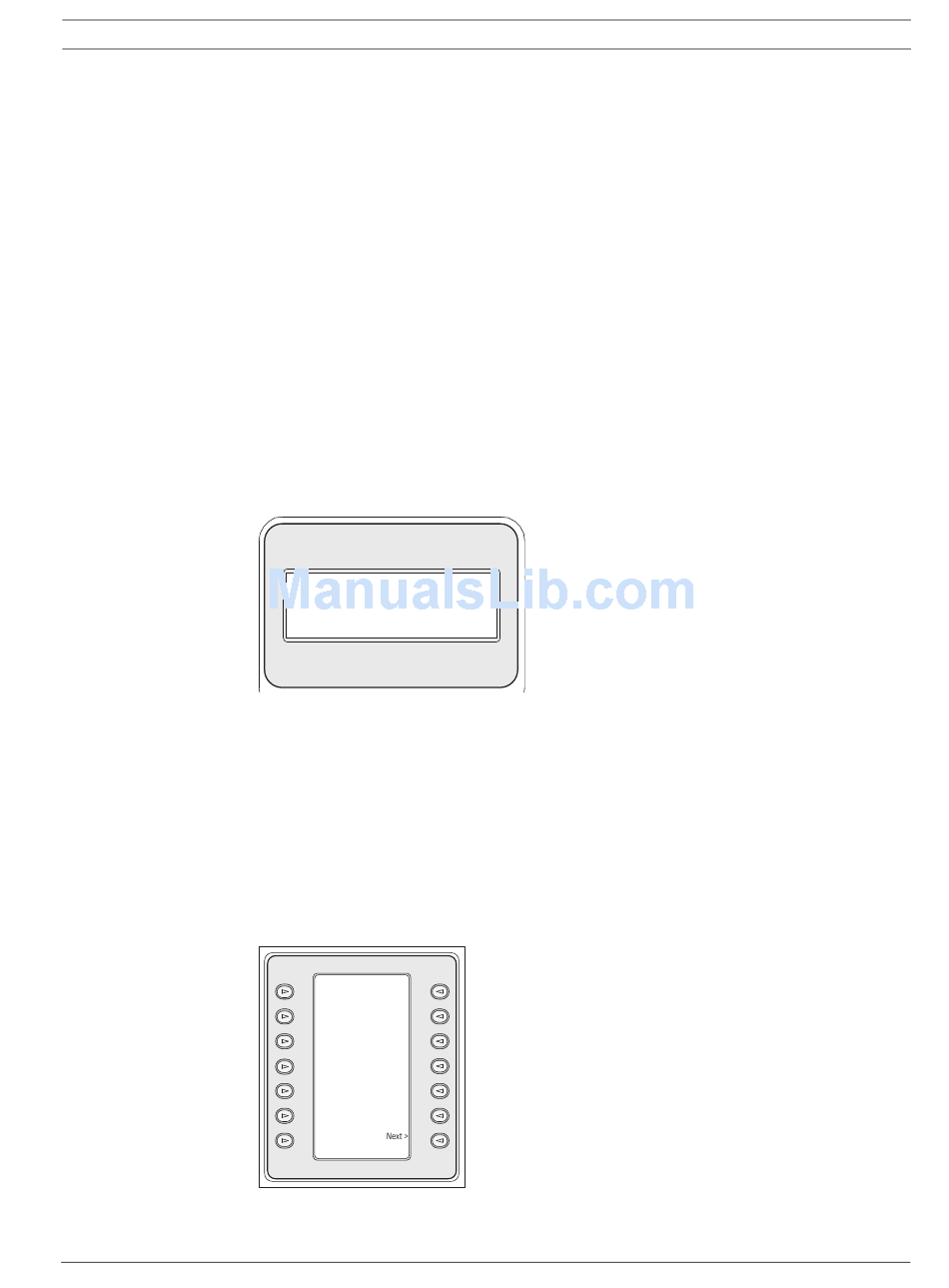

Figure 2.1 Status Display in Allegiant Mode
Press PROD to put the keyboard in Product Selection Mode. The keyboard displays the
the Product Selection menu in the softkey display.
Press the Allegiant or ADIM softkey button. The status display shows the Allegiant mode.
While in Allegiant mode, keyboard operators can use a convenient "Go Back" feature. To
go back to the previously selected camera, press and hold the CLR key for more than 1
second.
User
Exit
Log Off
Device Command
Lockout Script
Program Camera
Sequence Control
Alarm User
Control Functions
Load ADIM
Sequence Controls
Hold Start
Sequence Sequence
<Previous
<Sequence Sequence>
<Step Step>
Figure 2.2 Allegiant Main Control Menu
Controlling Allegiant Series Video Switchers | en
Camera
1234
