Mbox 2 Mini Hardware Overview
Mbox 2 Mini Front Panel Features
The Mbox 2 Mini front panel has the following features:
Headphone
Output

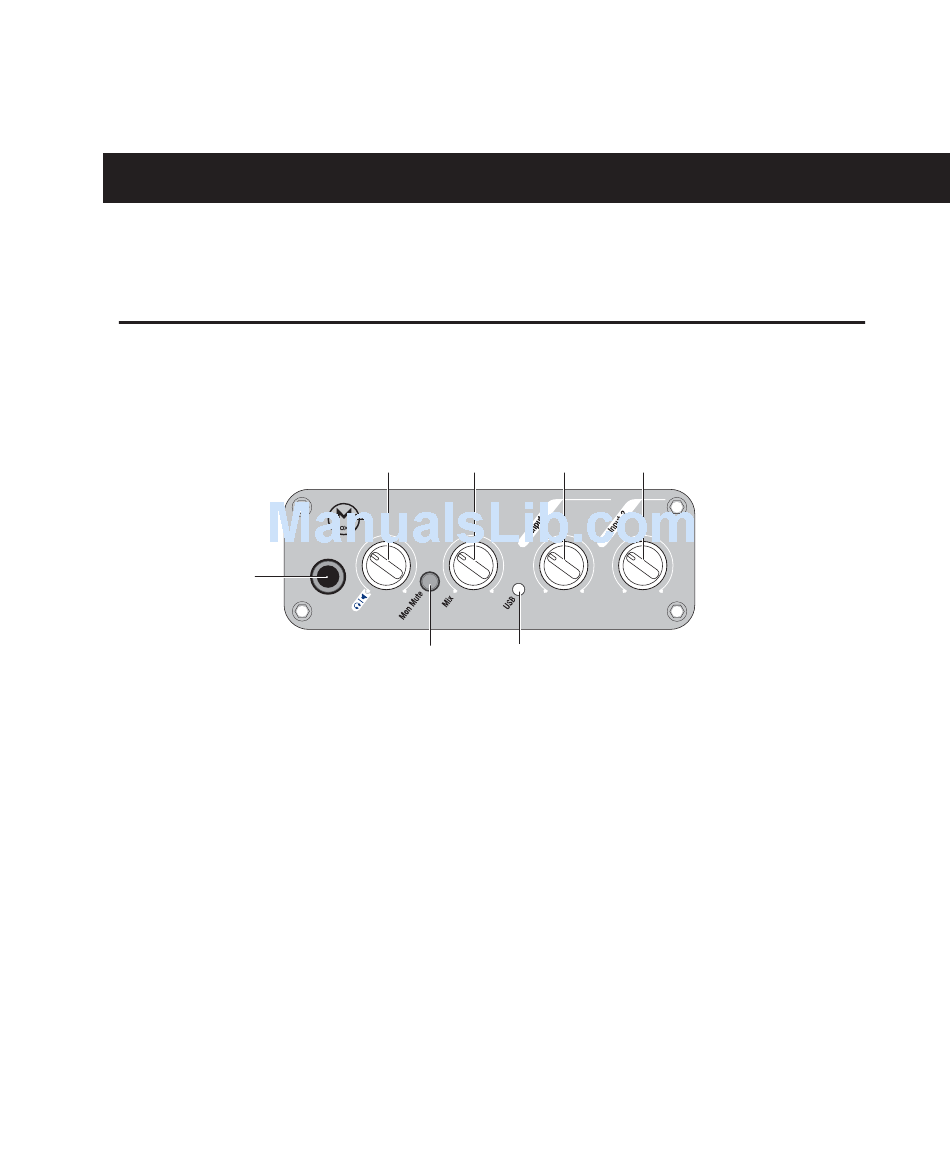

Figure 1. Mbox 2 Mini front panel
Headphone Output
Use the Headphone Output to connect a stereo
headphone with a 1/4-inch stereo connector.
Headphone/Monitor Output Level
The Headphone/Monitor Output knob adjusts
the output level of the Headphone Output and
Mon Out (Monitor Output). In Pro Tools, this is
the signal that is routed to Outputs 1–2.
Headphone/Monitor
Output Level
Mix (Ratio)
Monitor Mute
USB
LED
Mon (Monitor) Mute Switch
This switch mutes the Monitor Outputs, with-
out muting the Headphone Output. This switch
does not affect recording.
Input 1
Input 2
Gain
Gain
Chapter 5: Mbox 2 Mini Hardware Overview
29
