GE Monogram ZIC360NX Specification page 4

ZIC360NX
GE Monogram

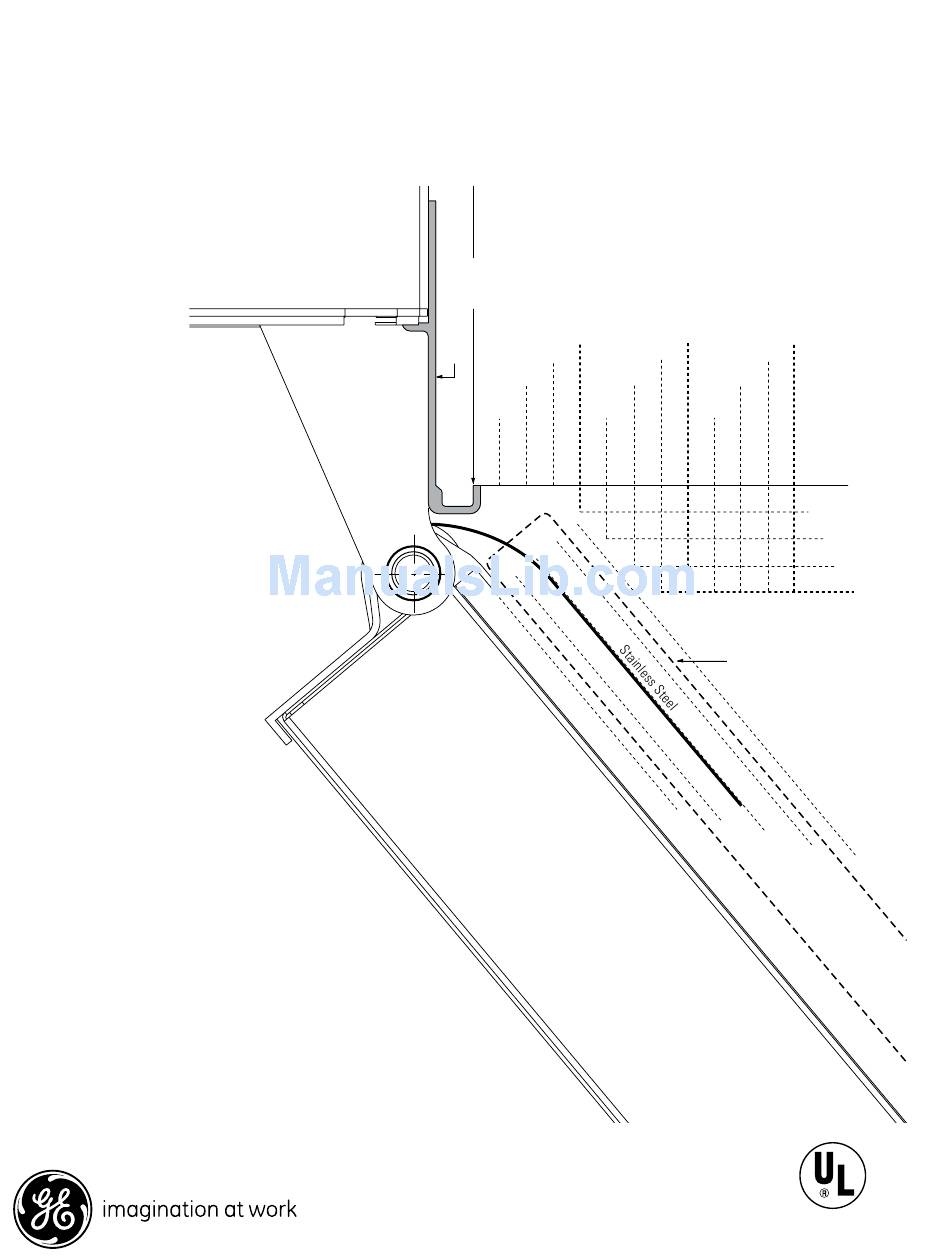

Dimensions and Installation Information (in inches)
Advance Planning for Built-In Custom Bottom-Freezer Refrigerators
Use this page to determine
door swing interaction
with adjacent cabinets or
countertops.
Top View
130° Door Swing
(Optional setting)
Scale 1:1
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
36" Built-In Side-by-Side Refrigerator
®
Refrigerator
GE Profile or
® ™
service,
®
Frameless Cabinets: The case trim overlaps cabinets at
the top and sides. Therefore, frameless cabinets may
require filler strips to prevent interference with cabinet
door swing. The opening must allow for filler strips.
23-7/8" From
Rear of
Refrigerator
1"
Case
3/4"
Trim
1/2" 1-1/2"
1/4" 1-1/4"
Door
2" 3"
1-3/4" 2-3/4"
2-1/2"
2-1/4"
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
Specification Created 6/08
1/4"
1/2"
3/4"
1"
1"
1-1/4"
Listed by
Underwriters
Laboratories
110112
