Onboard Parallel Port

This item allows you to determine access onboard parallel port controller with
which I/O Address.
The Choices: 378/IRQ 7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

This item allows you to determine how the parallel port should function. The
default value is SPP .
The Choices:
SPP (de fault)
EPP
ECP
ECP +EPP
ECP Mode Use DMA
Select a DMA Channel for the port.
The Choices: 3 (default), 1.

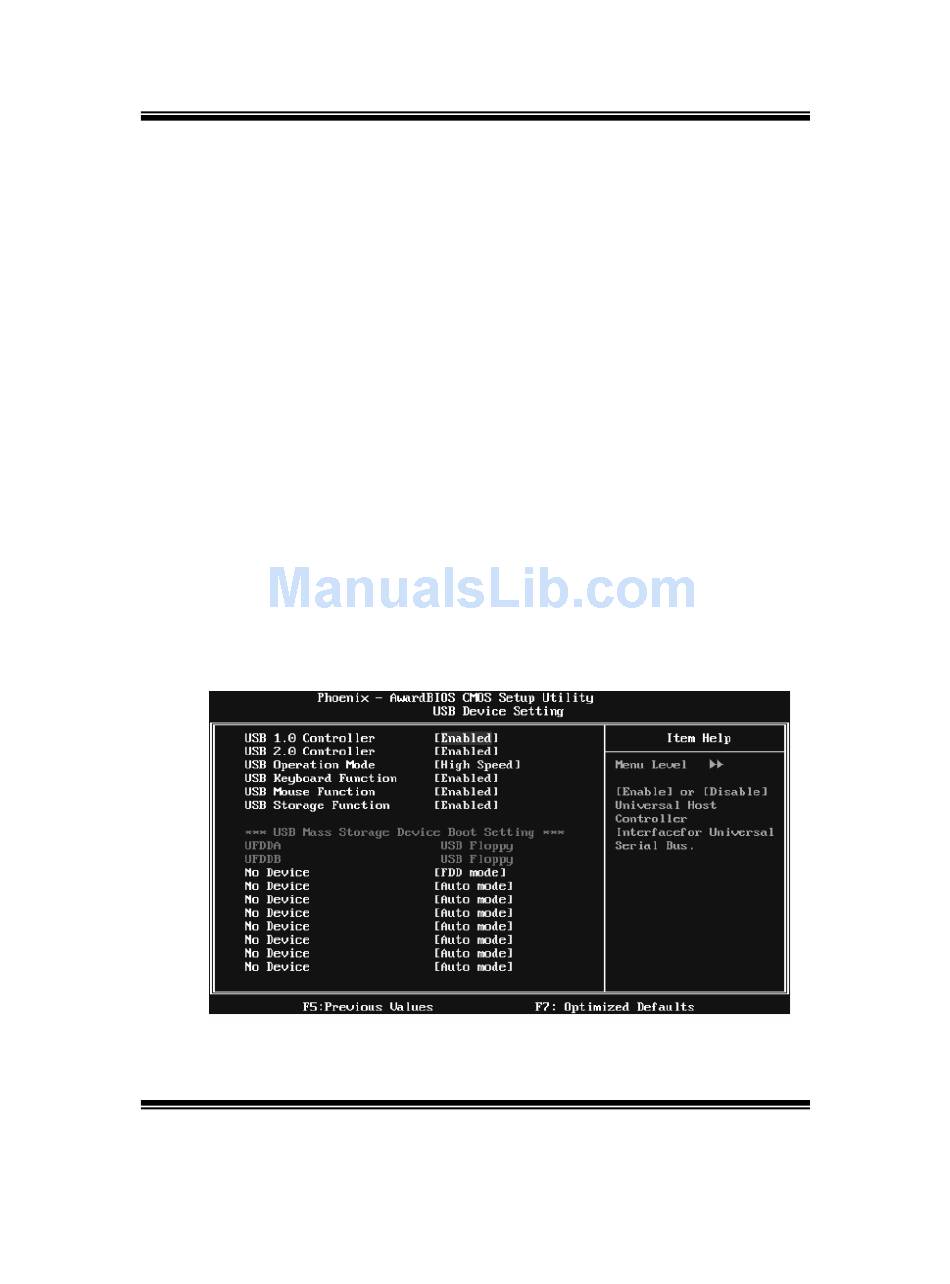

USB De vice Setting
Press Enter to configure the USB Device.
P4MST-890
Using P arallel port as Standard P rinter Port.
Using P arallel P ort as Enhanced P arallel Port.
Using P arallel port as Extended Capabilities P ort.
Using P arallel port as ECP & EPP mode.
