AGP & P2P Bridge Control
Highlight "Press Enter" next to the " AGP & P2P Bridge Control" label and
pressing the enter key will take you a submenu with the following options:

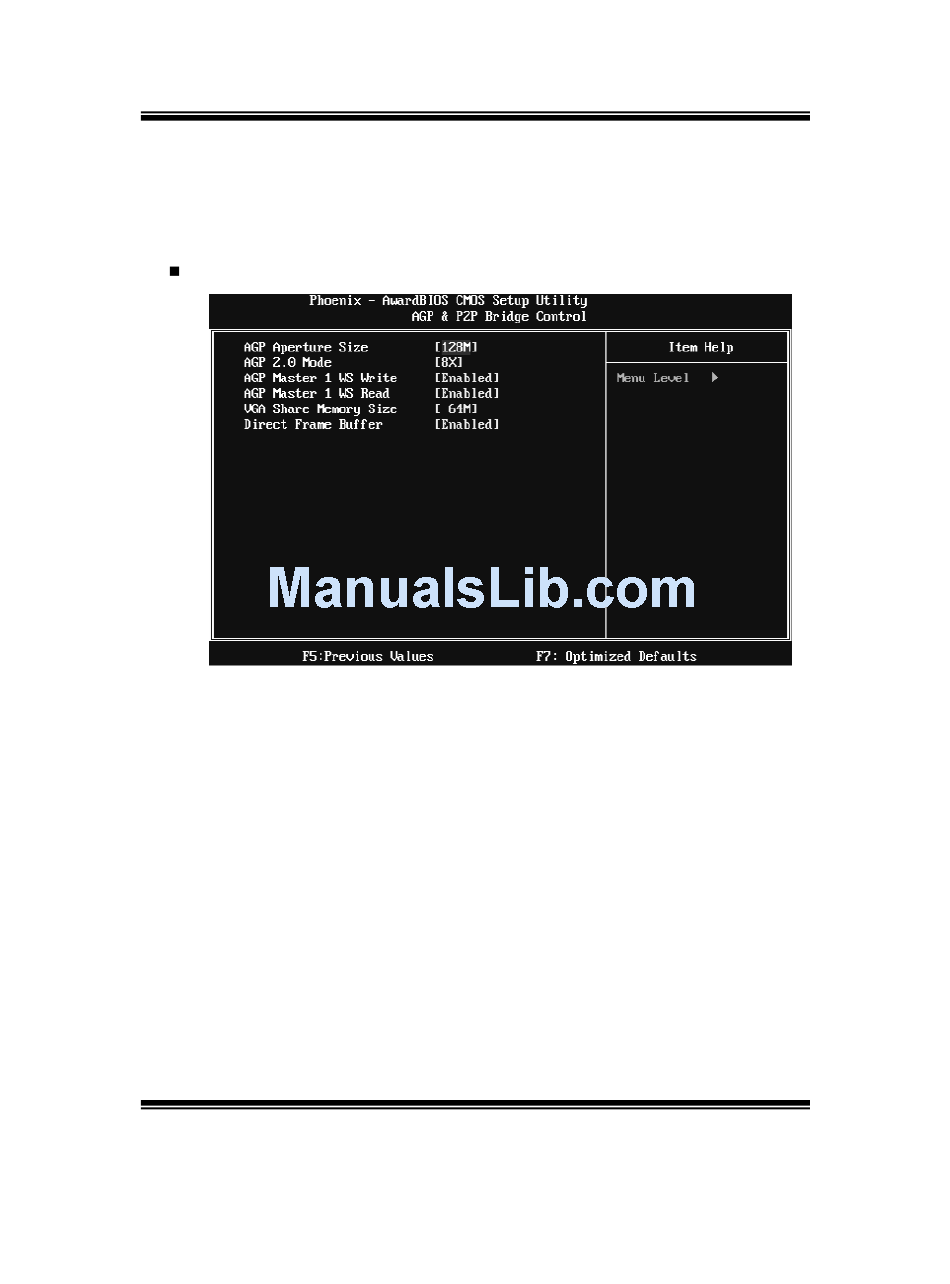

Figure 4.1: AGP & P2P Bridge Control
AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP ) aperture. The aperture
is a portion of the P CI memory address range dedicated for graphics memory
address space. Host cycles that hit the aperture range are forwarded to the AGP
without the need of translation.
The Choices: 32M, 64M, 128M (default), 256M.
AGP 2.0 Mode
This item allows you to select the AGP Mode.
The Choices: 8X (default), 4X.
AGP Master 1 WS Write
When enabled, writes to the AGP (Accelerated Graphics P ort) are executed
with one wait states.
The Choices: Enabled (default), Disabled.
P4MST-890
18
