Mach P4MST-890 Setup Manual page 16

Motherboard Manual

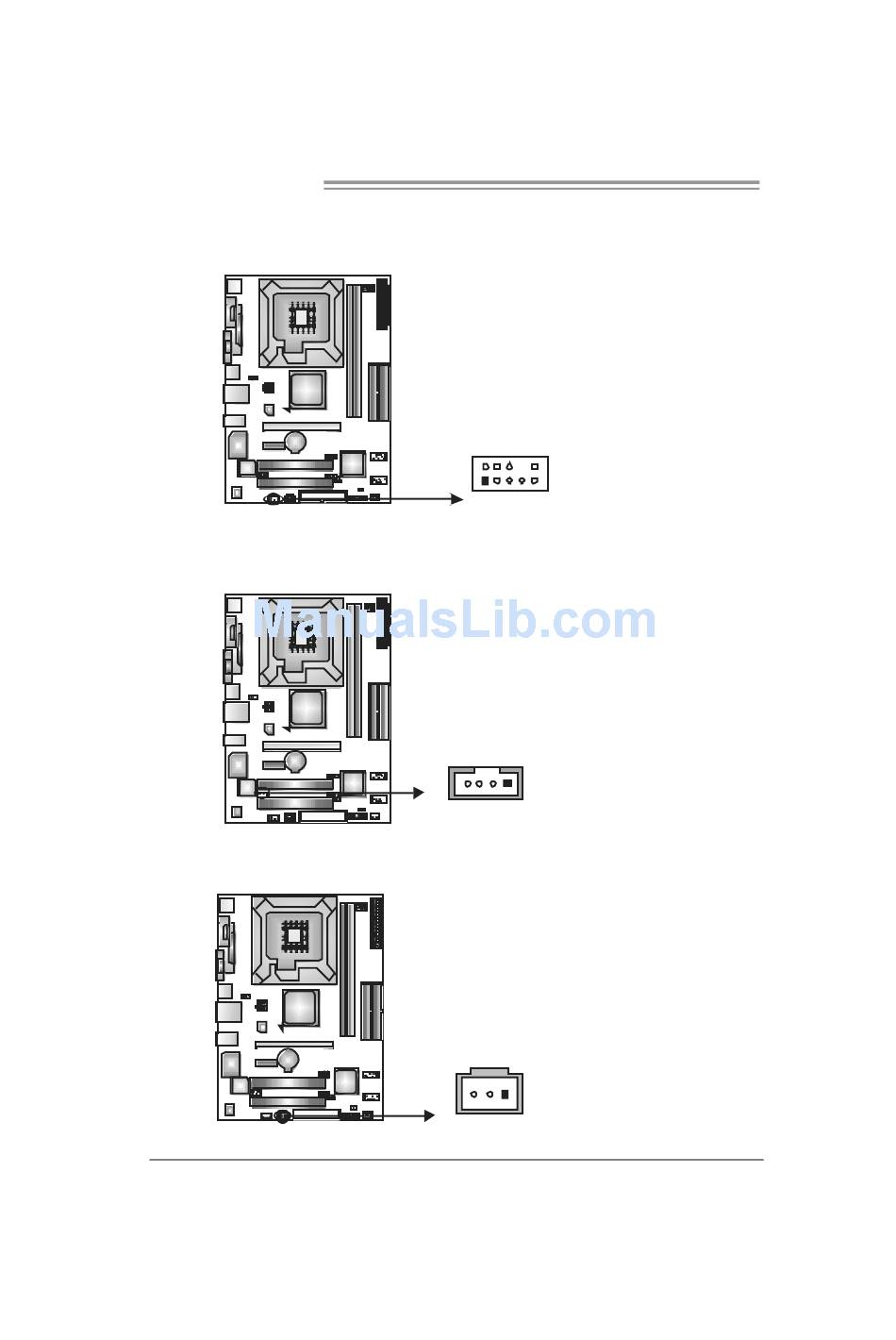

JAUDIO F1: Front Panel Audio Heade r
This header allows user to connect the front audio output cable with the PC f ront
panel. It will disable the output on back panel audio connectors.
JCDIN1: CD-RO M Audio-in Connector
This connector allows user to connect the audio source f rom the v ariaty dev ices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.
JSPDIF_O UT1: Digital Audio-out Conne ctor
This connector allows user to connect the PCI bracket SPDIF output header.
16
Pin
1
2
3
4
5
6
7
8
2 10
9
10
1 9
Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
4 Right Channel Input
4 1
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
3 1
Assignment
Mic Left in
Ground
Mic Right in
GPIO
Right line in
Jack Sense
Front Sense
Key
Left line in
Jack Sense
