ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own Phillips screwdriver
rubber mallet

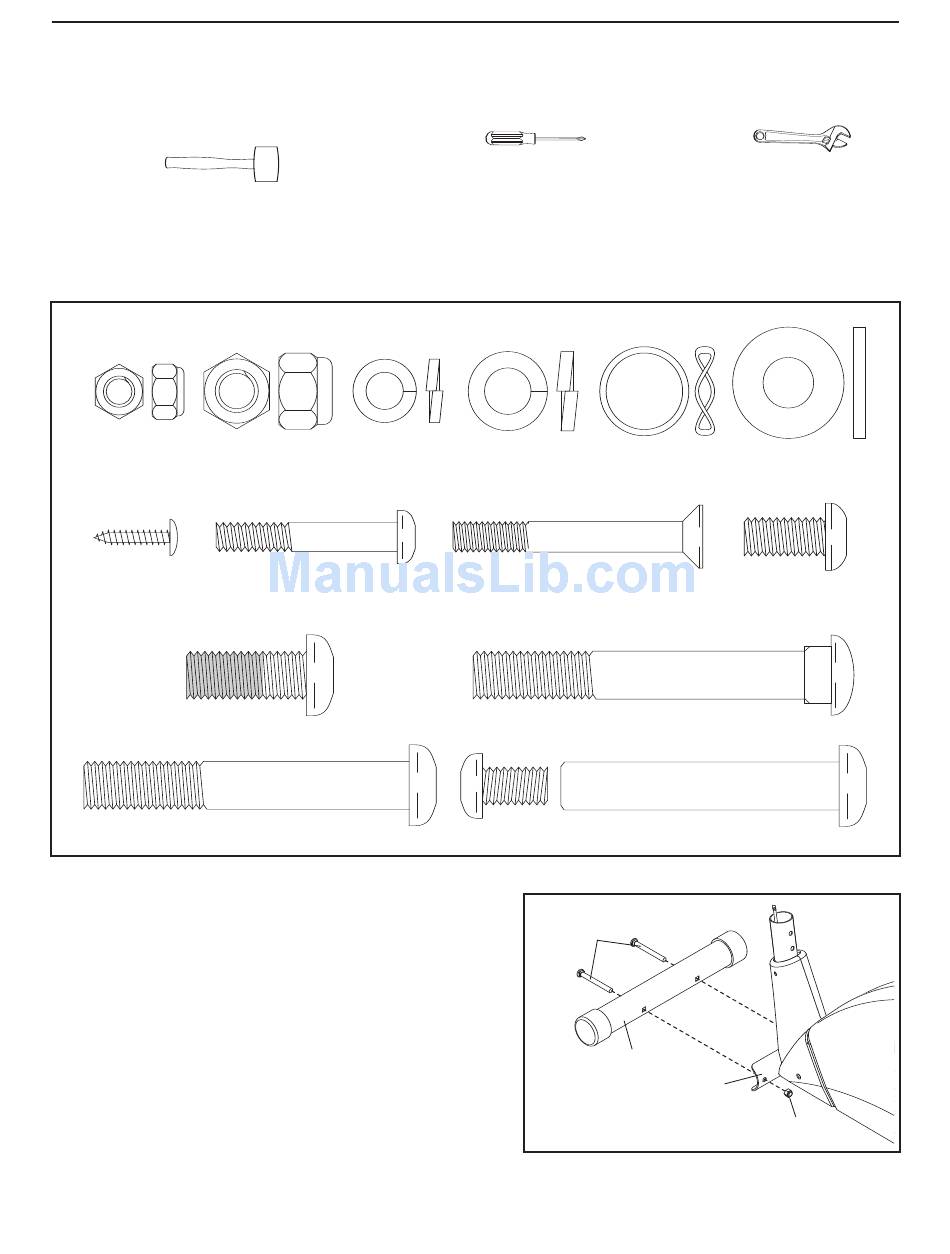

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 14. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M10 Nylon
M6 Nylon
Locknut (33)–6
Locknut (27)–4
M4 x 16mm
Screw (42)–4
M10 x 25mm Patch Screw (22)–2
1. Identify the Front Stabiliser (10), which is narrower than
the Rear Stabiliser (not shown). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33).
.
M8 Split
Washer (69)–2
M6 x 38mm Button
Bolt (50)–4
M10 x 68mm Button
Bolt (48)–2
, adjustable wrench
M10 Split Wave Washer
(70)–2
Washer (59)–2
M6 x 48mm Flat Head
Screw (36)–4
M10 x 75mm Carriage
Pedal Arm Bolt Set (40)–2
1
34
10
4
M10
Washer (35)–2
M8 x 16mm Button
Screw (68)–2
Bolt (34)–4
1
33
, and
