Weslo Momentum 7.0 Ex Elliptical User Manual page 8

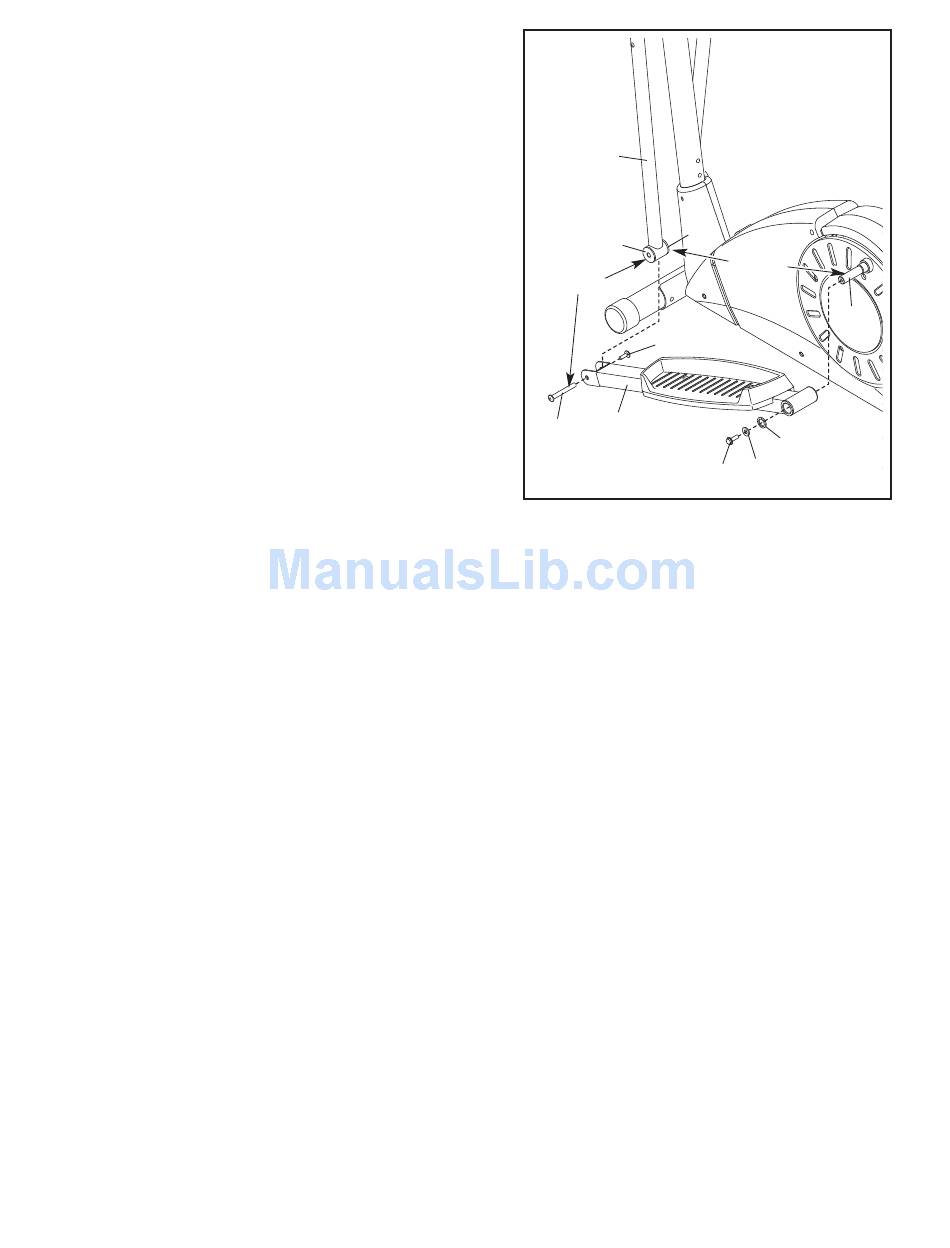

9. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide the Left Pedal Arm (11) and a
Wave Washer (70) onto the axle. Next, slide an M10
Washer (35) onto an M10 x 25mm Patch Screw (22),
and tighten the Patch Screw into the axle.
Apply a small amount of grease to a Pedal Arm Bolt
Set (40) and to the surfaces of the Large Handlebar
Bushings (60) in the left Handlebar Arm (5). Next, hold
the lower end of the left Handlebar Arm inside of the
bracket on the Left Pedal Arm (11). Attach the Left
Pedal Arm to the left Handlebar Arm with the Bolt Set.
Do not overtighten the Bolt Set; the Handlebar Arm
must pivot freely.
Attach the Right Pedal Arm (not shown) to the right
side of the elliptical exerciser in the same way.
See step 6. Tighten the M10 x 68mm Button Bolts (48)
in the Upright (2).
See step 7. Tighten the M6 x 36mm Button Bolts (50)
in the Handlebar Arms (5).
10. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.
9
5
60
Grease
11
40
8
60
Grease
40
70
35
22
16
