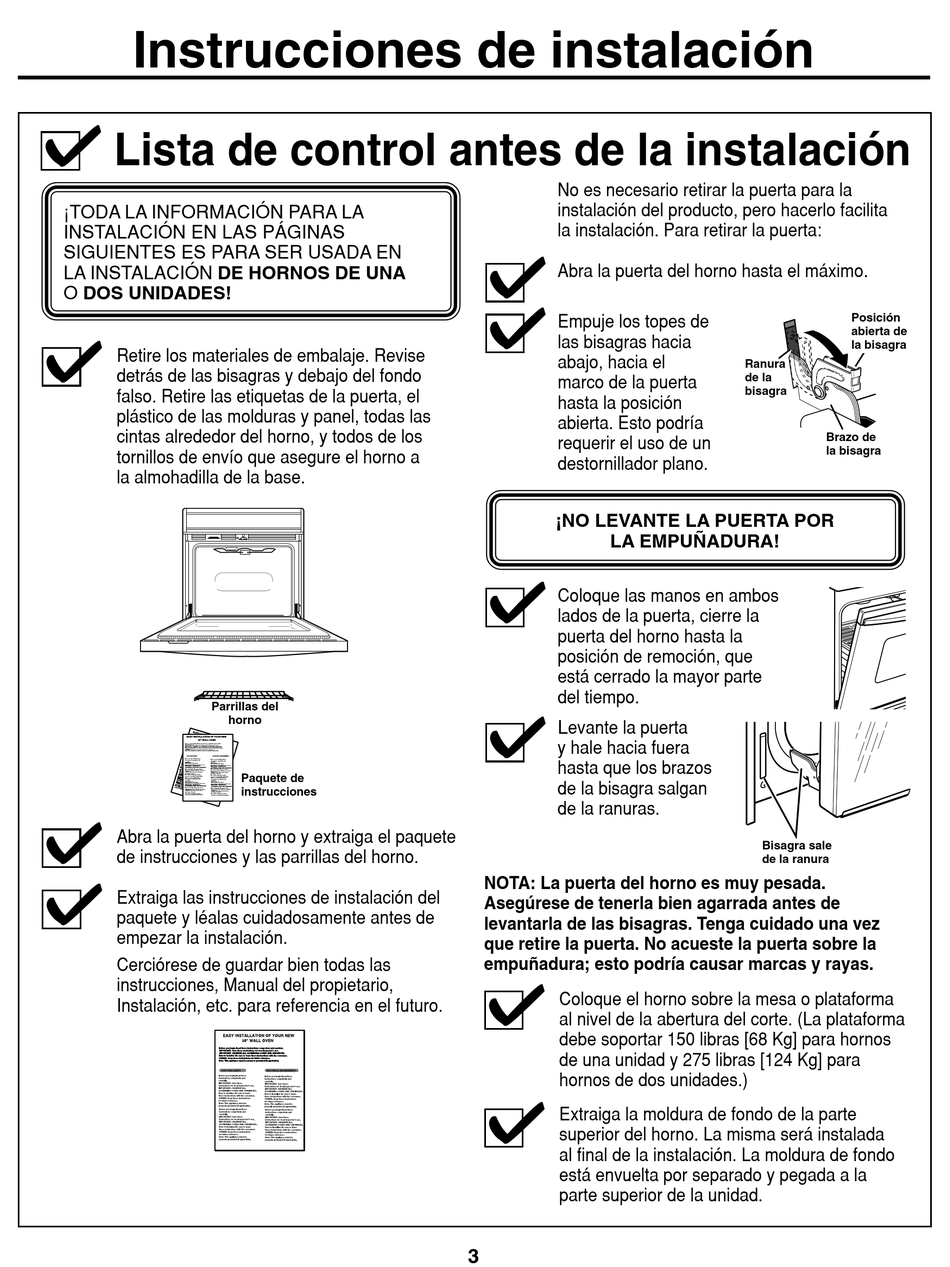

Instrucciones de instalación
Lista de control antes de la instalación
¡TODA LA INFORMACIÓN PARA LA
INSTALACIÓN EN LAS PÁGINAS
SIGUIENTES ES PARA SER USADA EN
LA INSTALACIÓN DE HORNOS DE UNA
O DOS UNIDADES!
Retire los materiales de embalaje. Revise
detrás de las bisagras y debajo del fondo
falso. Retire las etiquetas de la puerta, el
plástico de las molduras y panel, todas las
cintas alrededor del horno, y todos de los
tornillos de envío que asegure el horno a
la almohadilla de la base.
Parrillas del
horno
