Related Manuals for GE Security Phoenix A8950CC
Summary of Contents for GE Security Phoenix A8950CC
-

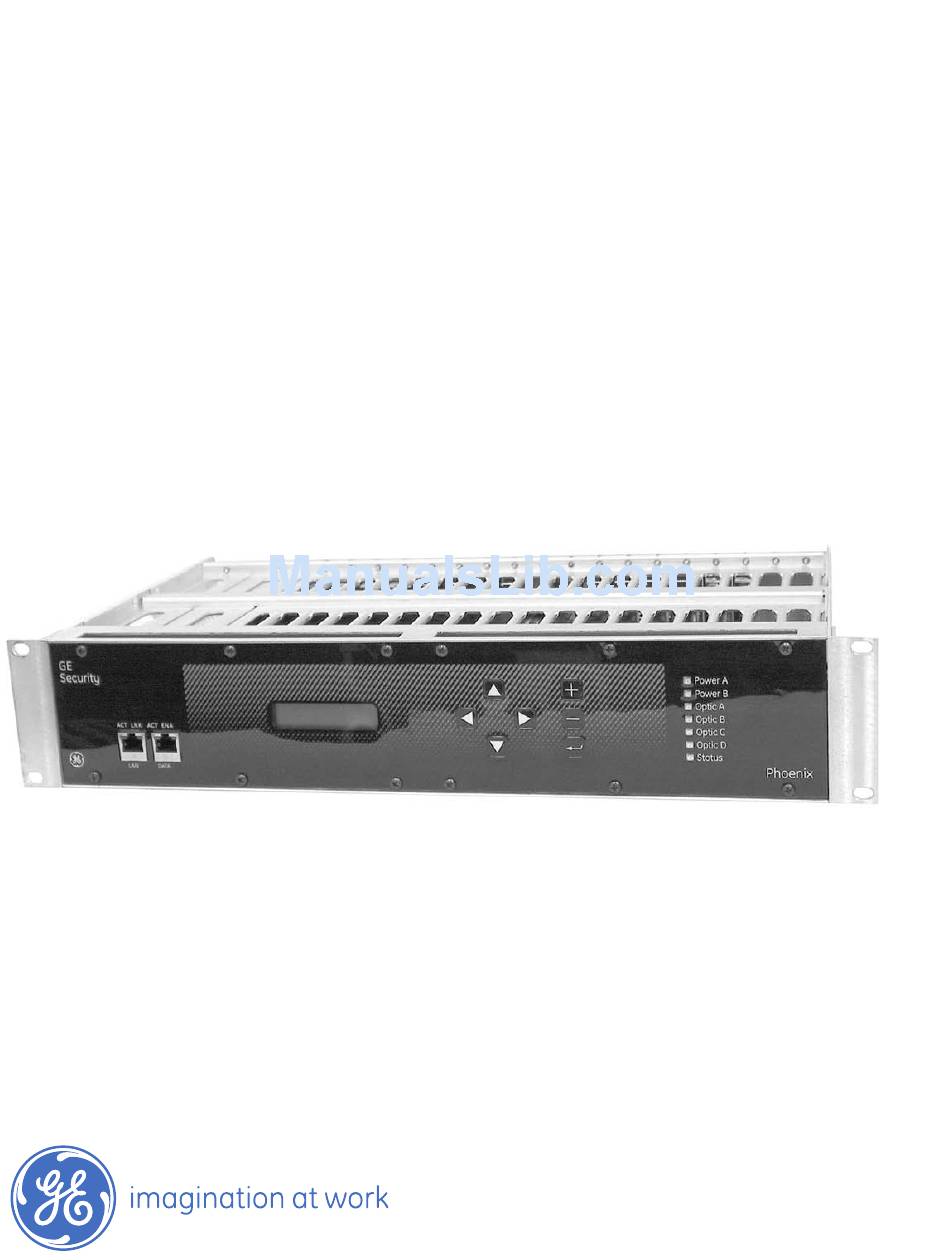

Page 1: Installation Instructions
Security Phoenix Fiber Optic Communication System A8950CC installation instructions 11-A8950CC... -
Page 2: Table Of Contents
Installation Instructions BEFORE YOU BEGIN GETTING STARTED Overview Determine Mounting Configuration Installing Power Supply INSTALLING THE OPTICAL TRANSCEIVER MODULE Point-to-Point, Repeater, Self-Healing Ring Diagrams LED Operating Status INSTALLING THE DATA MODULE Configuring the Data Module Install Data Module Connect Data Module Channel Mapping Connection Instructions RS-232, TTL, RS-422, RS-485, Manchester/Biphase Interface... -
Page 3: Before You Begin
(Monday through Friday, excluding holidays, between 6 a.m. and 5 p.m. Pacific Time). GE Security Call: 888 437-3287 (US, including Alaska and Hawaii; Puerto Rico; Canada) Outside the toll-free area: 503 885-5700 Fax: 561 998-6224 Note: You should be at the equipment and ready with details before calling Technical Support. -
Page 4: Getting Started
Getting Started ** CAUTION: This product contains ESD-sensitive components. Although all precautions have been made to reduce ESD susceptibility, use good grounding techniques when handling uninstalled modules Overview Installing the Phoenix chassis is a three-step process: 1. Install mounting hardware and power supplies. 2. -
Page 5: Installing The Optical Transceiver Module
Installing the Optical Transceiver Module Overview The Phoenix optical transceiver module is used to provide connectivity to the fiber connections between nodes. The A8972FLC optical transceiver module contains a single optical transceiver with dual LC connectors and is used as an ‘end node’ in either a point to point, or linear system. -
Page 6: Point-To-Point, Repeater, Self-Healing Ring Diagrams
Point-to-Point Connect Tx A Rx A A8972FLC Repeater Connect Tx A Rx A A8972FLC HEAD END Self-Healing Connect Tx A Rx A Tx B Rx B A8974FLC Tx A Rx A A8972FLC Tx A Rx A Tx B Rx B A8974FLC MIDDLE NODES Tx A... -
Page 7: Led Operating Status
3. Verify fiber connectivity: Using the LEDs on the back of the unit adjacent to the optic module, verify proper operation as shown in the table below. Both optical launch power and optical receive power, as well as transceiver status, can be verified from the LCD front panel. LED operating status Optic LED GREEN... -
Page 8: Installing The Data Module
Phoenix system. The card is not limited to any single data type so that various formats can be mixed on a single card. As with other GE Security MPD products, data translation capabilities are included. Tools and materials required The data modules are held in place with simple thumbscrews with screwdriver slots. -
Page 9: Install Data Module
Each data module is shipped with (four) RJ45 cables and (four) breakout boxes to aid in connecting to the Phoenix. Use the tables below to determine pinout information for your application. GE Security recommends using shielded cable for all single ended applications and twisted shielded cable for all differential formats. Wire gauge is dependent on copper run length. -
Page 10: Connection Instructions
Figure 1. Fiber Link Data Connections DATA EQUIPMENT DATA OUT DATA IN Figure 1. Terminal Block Pin Assignments Using the breakout box A breakout box with a 3’ CAT 5 patch cord (supplied) can be used to interface to the Phoenix system. -
Page 11: Rs-232, Ttl, Rs-422, Rs-485, Manchester/Biphase Interface
NOTE: When making data connections listed in Tables 3 through 11, always connect the pins labeled IN on the fiber unit to the pins labeled OUT on the external equipment, and the pins labeled IN on the external equipment to the pins labeled OUT on the fiber unit. TABLE 3: RS-232 INTERFACE DATA SELECT Switch: Position 1 Signal... -
Page 12: Data Module - Channel Sequence
TABLE 9: RS-485 4-WIRE INTERFACE DATA SELECT Switch SW1: Position 9 = standard offset Position A = 1V offset Position B = 2V offset Signal RS-485 Out (+) RS-485 Out (-) GND/SHIELD +5 VDC Bias Out Termination, tie to 8 if req’d. GND/SHIELD RS-485 In (-) RS-485 In (+) -
Page 13: Installing The Ethernet Module
Installing the Ethernet Module Overview The Phoenix A8911ETH Ethernet module provides Ethernet connectivity to the Phoenix system. Each module has three RJ-45 ports supporting full-duplex 10/100Base-T interfaces. Each port also supports Auto-Negotiation and automatic MDI/MDI-X selection. Unlike other modules used in the Phoenix system, the ethernet module does not use “chan- nels”. -
Page 14: Connect Ethernet Module
2. Connect: Connect Ethernet-capable equipment directly to the Ethernet module using CAT5 twisted- pair cables with male RJ-45 connectors at both ends. Do not use breakout boxes. Standard CAT5 cabling used for Ethernet is available with either straight-through or crossover connections. Either variety may be used with the Ethernet module. The auto-MDI/MDI-X feature of each port automatically detects the type of cable connection to establish link. -
Page 15: Installing The Video Module
Installing the Video Module Overview The Phoenix A8900VI input module is capable of inserting up to four baseband, composite video signals per card. A maximum of four cards can be installed in any node, allowing up to 16 inputs per node. The Phoenix A8905VO output module is capable of outputting up to 4 base band, composite video signals per card. -
Page 16: Connection Instructions
Connection instructions Video Inputs: Connect video source equipment such as cameras or matrix switcher outputs to the video input modules using the BNCs on the back of the panel. Confirmation of video presence can be confirmed on the front panel LCD. The channel order is sequential, beginning with the top BNC in slot 5 as Channel 1, working vertically such that the bottom BNC in slot 5 is assigned Channel 4, and the top BNC in slot 6 is assigned Channel 5. -
Page 17: Video Module - Channel Sequence
Video Input module - channel sequence Slot 5 BNC A Ch 1 IN BNC B Ch 2 IN BNC C Ch 3 IN BNC D Ch 4 IN Video Output module - channel sequence Slot 11 BNC A Ch 1 OUT BNC B Ch 2 OUT BNC C... -
Page 18: Installing The Audio Module
16 channels. The audio interface connector is four, ganged RJ45 connectors located on each card. The audio module supports an audio test pattern, similar to GE Security standards. Tools and materials required The audio modules are held in place with simple thumbscrews with screwdriver slots. -
Page 19: Audio Input Termination Diagrams
AUDIO INPUT TERMINATION Note: One switch per channel Ch A Ch B High Z 600Ω Ch C Ch D High Z 600Ω The A8920A units are shipped with the input impedance set at (high-Z). To select a 600Ω input impedance in place of the high-Z input, set switches SW1 and SW2 on the audio to 600Ω. -
Page 20: Audio Input/ Output Charts
INSERT AUDIO CARDS IN SLOTS 15-18 (Black) 3. Connecting to audio modules: GE Security recommends connecting to the terminal block using high-quality shielded, twisted-pair wire for best audio performance. The I/O for the audio inputs and outputs are as follows:... -
Page 21: Audio Module - Channel Sequence
Figure 1. Terminal Block Pin Assignments Using the breakout box A breakout box with a 3’ CAT 5 patch cord (supplied) can be used to interface to the Phoenix system. Pinouts are shown in the tables and figures above. Audio module - channel sequence Slot 15 RJ45-A Ch 1-2 IN... -
Page 22: Installing The Contact Closure Module
Installing the Contact Closure Module Overview The Phoenix A8930C contact closure module is capable of supporting up to 8 contact closure inputs, and 8 contact closure outputs per module. With up to 4 modules available per system, up to 32 contact inputs and outputs can be transmitted. Contact closure modules are color coded black, and can be installed in slots 15, 16, 17, or 18. -
Page 23: Connection Instructions
Each contact closure module is shipped with (four) RJ45 cables and (four) breakout boxes to aid in connecting to the Phoenix. Use the tables below to determine pin out information for your application. GE Security recommends using shielded cable for all single ended applications and shielded twisted-pair for all differential formats. -
Page 24: Rj45, Contact Input/ Contact Output Charts
RJ45 - A (Top) CONTACT INPUTS - CHANNELS A-D Contact Signal IN A (GND) IN B (GND) IN C (GND) IN D (GND) RJ45 - C CONTACT OUTPUTS - CHANNELS A-D Contact Signal N/O A N/O B N/O C N/O D To activate a relay, provide a connection from an IN (+) to GROUND. -
Page 25: Configuring The Phoenix Fiber Optic Communication System
Configuring the Phoenix Fiber Optic Communications System This section explains how to configure a Phoenix chassis using the front panel. The front panel has seven status LEDs, an LCD display, seven push buttons and two RJ-45 ports. These RJ-45 ports (labeled LAN and DATA) are currently unused. Do NOT connect any cables or equipment to these ports;... -
Page 26: Select The System Topology
1. Turn on power and check status Turn on the power to the Phoenix chassis using the switches on the Power Supply modules. If two power supplies are installed, turn on both switches. The LEDs perform a brief test when the chassis powers up: all seven LEDs turn green and then turn red. After the test has completed the LEDs indicate the status of the power supplies and optics. - Page 27 A brief initialization routine is displayed on the LCD when the chassis powers up. A splash screen showing the GE logo and Phoenix product name is displayed after the routine completes. After approximately one minute of inactivity the LCD display will turn off.
-
Page 28: Set The Node Id
Press "enter" again to select the Node Menu: Node Menu 1. ID - 0 2. Type - Linear 3. Load Defaults If you are configuring a system with a linear topology, and item 2 in the menu reads, "2. Type – Linear", then you do not have to make any changes and can continue to Step 3, below. -
Page 29: Front Panel Menu Tree And Descriptions
FRONT PANEL MENU TREE AND DESCRIPTIONS The menus accessible from the front panel are shown in the menu tree below: Navigating through the menu tree is accomplished using the push buttons and LCD display. The LCD shows menus from which sub-menus or features can be selected. A small black arrow is used as a cursor. -
Page 30: Main Menu Options
Main Menu: Main Menu 1. Local 2. Remote 3. About The menus accessible from the front panel are shown in the menu tree below: Pressing any key from the opening screen will take you to the Main Menu. Main -> Local: Local Menu 1. - Page 31 The Node Menu shows the node ID and topology. Main -> Local -> Node -> ID Node Menu 1. ID - 3 2. Type - Linear 3. Load Defaults Every Phoenix node (i.e. chassis) in a system must have a unique node ID number. The node ID is set to zero the first time a Phoenix chassis is switched on, or if you Load Defaults.
- Page 32 Main -> Local -> Node -> Load Defaults This feature sets the node ID back to zero and clears all channel mapping information for this node. The topology is retained. Main -> Local -> Optics: Optic Menu 1. Transmit 2. Receive 3.
-
Page 33: Menu Options: Video
Main -> Local -> Optics -> Info: Optic Info: ABCD Wavelength: 1310 nM Max Distance: 15 km Vendor: Infineon The Info Menu shows the wavelength (normally 1310nM), maximum distance (normally 15km) and optic transceiver vendor name (Infineon) for the selected optic transceiver. - Page 34 When a Phoenix node is initially configured (or if Load Defaults is selected from the Node Menu), every input channel is mapped to the output channel of the same number (e.g. input channel 1 is mapped to output channel 1, etc) on both fiber ports (for SHR) or just fiber port A (for Linear).
- Page 35 • One-Bar: If the input and output channels are both mapped but no input video signal is detected then one bar is shown in the monitor. Video: Exit • Square: If the input and output channels are both mapped and active video is detected then a black square is shown in the center of the monitor.
-
Page 36: Menu Options: Data
Main -> Local -> Data: Data Menu 1. Input Mapping 2. Output Mapping 3. Format Select Data Input and Data Output channel mapping, monitoring, format and tests can be accessed from the sub-menus. Main -> Local -> Data -> Input Mapping: Data: 1010 1010... - Page 37 • Square Wave: Active data is detected at the data input. Data: 1010 1010 1010 Exit Please refer to the Video Input Mapping Menu described earlier in this manual for impor- tant notes regarding channel mapping and instructions on how to enable mappings. Main ->...
- Page 38 • Square Wave: Active data is detected at the data input. Data: 1010 1010 1010 Exit Please refer to the Video Output Mapping Menu described earlier for important notes regarding channel mapping and instructions on how to enable mappings. Main -> Local -> Data -> Format Select: Data: 1.
-
Page 39: Menu Options: Ethernet
Main -> Local -> Ethernet: Ethernet Menu 1. Port Status 2. Port Control 3. Port Traffic Port configurations, status and traffic statistics can be accessed from these submenus. Main -> Local -> Ethernet -> Port Status: Port Status Menu Slot: 1 Port: A Link: Up Spd: 100... -
Page 40: Menu Options: Audio
Main -> Local -> Audio: Audio Menu 1. Input Mapping 2. Output Mapping 3. Test Select Audio Input and Audio Output mapping and tests can be accessed from the sub-menus. Main -> Local -> Audio -> Input Mapping: Audio Exit This screen allows you to assign an audio input channel to an audio output channel over a selected fiber port. -
Page 41: Menu Options: Contact Closure
Main -> Local -> Audio -> Test: Audio: 1. Channel: 1 2. Test: This menu allows the user to initiate a 1KHz test tone for a specified channel. The first line of this menu shows the currently selected audio channel. The second line indicates the status of the test tone (Off or 1.0 KHz), respectively. - Page 42 • Closed: If the contact closure is closed then the plunger of the switch is lowered. Contact: • • Exit 1, 2 Please refer to the Video Input Mapping Menu described earlier for important notes regarding channel mapping and instructions on how to enable mappings. However, note that contact signals are mapped as pairs since there are 8 contact channels per Contact Closure Module.
-
Page 43: Main Local Power/ Main Local Test/ Main Local About
The third line, "2. Type" allows system events to be mapped to contact closure output channels: • Transmitted. The contact behaves normally. • Optic A: A problem on optic port A closes the selected contact. • Optic B: A problem on optic port B closes the selected contact. •... - Page 44 This selection runs through a series of three tests: 1. LED Test: All LEDs turn off, then turn green, and then turn red. 2. LCD Test: The screen turns black. Then the GE logo is displayed. 3. Alarm Test: The front panel alarm sounds for a few seconds.
-
Page 45: Main Remote/ Main About
Main -> Remote: Under Construction This option is not available. An "Under Construction" message is displayed when selecting this menu. Main -> About: Phoenix Controller Version 1.1 Date 02-16-05 The Main About Menu displays the software version of the chassis. -
Page 46: Specifications
GE Security for a period of five years from delivery. During this period, GE Security will, at its option repair or replace any defective item of equipment or part or component of equipment,... -
Page 47: Optical Transceiver Module Specifications
Optical Transceiver Module Specifications Model Mechanical Size Weight Connections Optical • Mode: Single-mode • Optical Budget: 20 dB • Operating distance: 20 km • Emitter: Laser • Wavelength: 1310 nm • Transmitter launch power: (-) 2 dBm typical • Receiver sensitivity: (-) 22 dBm typical •... -
Page 48: Data Module Specifications
Data Module Specifications Model Mechanical Size: Weight: Connections: Data • Channels: 4 duplex • Formats: RS-232 (3-wire/5-wire), TTL, RS-422 (2-wire/4-wire), RS-485, Manchester, Biphase, Sensornet • Baud rate: DC to 512 kbps (depending on data format) • Bit error rate: > 10 •... -
Page 49: Ethernet Module Specifications
Ethernet Module Specifications Model Mechanical Size Weight Ethernet • Ports: 3 10/100BASE-T • Auto-Negotiation • Supports Full and Half-Duplex • Throughput: Module Port-to-Port: Line-Rate Between Nodes: 25 Mbps • Auto MDI/MDI-X Product Ordering Model Ethernet Module A8911ETH Ethernet Module 0.75 in. W x 3.30 in. H x 8.88 in. L (19 x 84 x 226 mm) 4.0 oz. -
Page 50: Video Module Specifications
Video Module Specifications Model Mechanical Size Weight Video • Channels: 4 • Formats: NTSC/PAL • Input/Output Signal: 1.0 V p-p composite • Signal-to-noise ratio: > 55 dB • Resolution: > 520 TVL • Input impedance: 75 ohms • Differential phase: 0.7 degrees •... -
Page 51: Audio Module Specifications
Audio Module Specifications Model Mechanical Size Weight Connections: Audio • Channels: 4 duplex • Input signal: Maximum +8 dBm or +18 dBm, switch-selectable • Input impedance: > 30 K ohms or 600 ohms, switch-selectable • Frequency response: 20-20 kHz • Output signal level: Maximum +8 dBm or +18 dBm, switch-selectable •... -
Page 52: Contact Closure Module Specifications
As a company of innovation, GE Security reserves the right to change product specifications without notice. For the latest product specifications visit GE Security online at www.GESecurity.com or contact your GE Sales Representative. 11-A8950CC-E Released 20-APRIL-07 A8930C Contact module 0.75 in.
