This device belongs to the Electro Industries family, which is a tightly integrated device in to the PMCS product. The
device contains the following tabs:

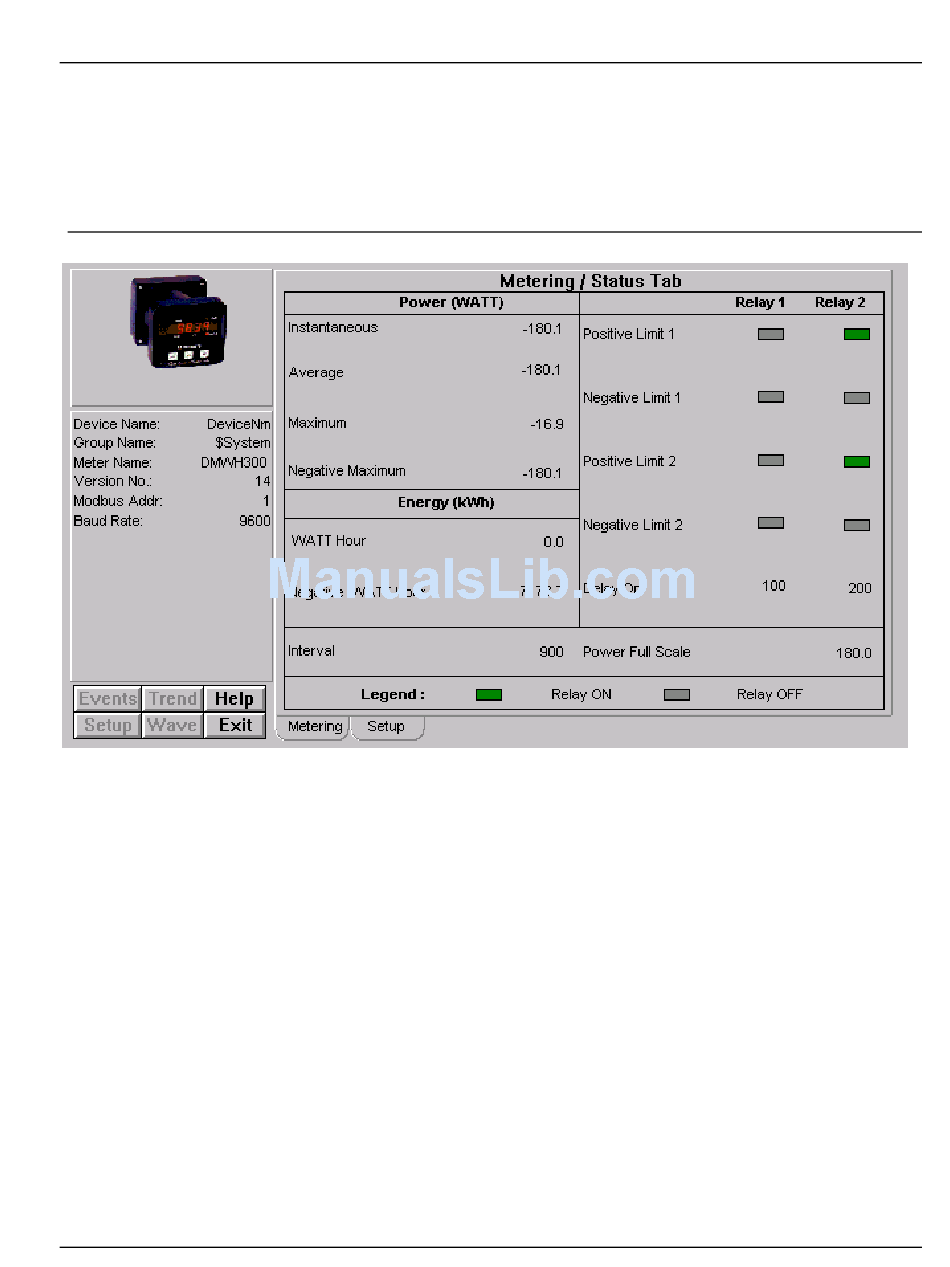

Metering

The screen explains various parameters related to metering and status.
Power (WATT): Instantaneous, Average, Maximum and Negative Maximum.
Relay 1/Relay 2: Positive Limit 1, Negative Limit 1, Positive Limit 2 and Negative Limit 2. Delay On is displayed too.
If the relay is on, it is displayed in green. If the relay is off, it remains in gray.
Energy (kWh): WATT Hour and Negative WATT Hour. Interval is displayed.
Power Full Scale: This value internally depends on the Power Displacement Value. Based on this the value the number
of decimals will be displayed. For example
If the Power Decimal Placement is set to 1, the value will have only one decimal place.
If the Power Decimal Placement is set to 2, the value will have two decimal places, and so on and so forth. The maximum
value allowed is 4.
