Transporting; Locking The Back Sensor Panel - Invacare SHAPE SENSOR User Manual

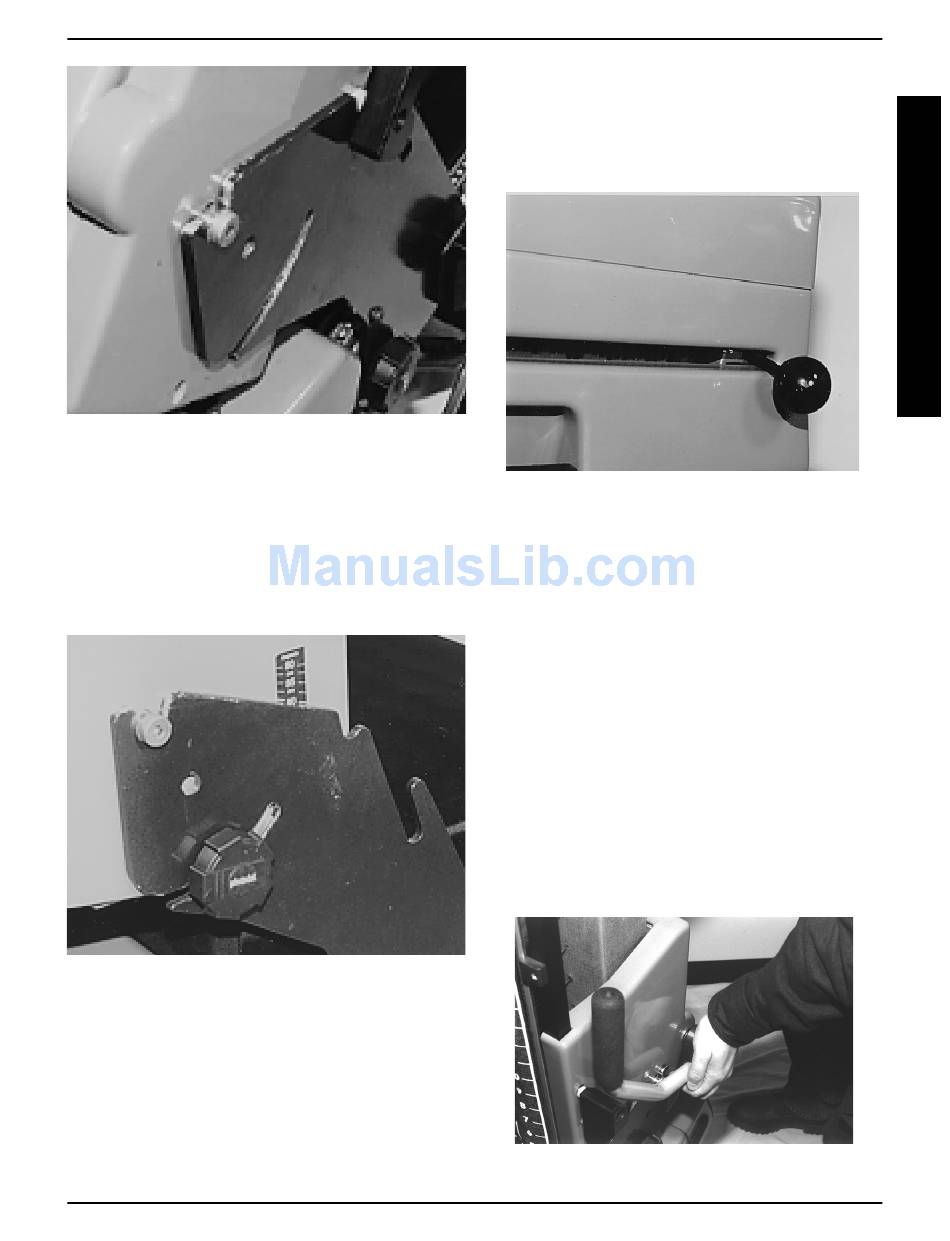

FIGURE 5 ALIGNING THE PIVOT PINS
9. Install the back angle adjustment knobs through
the back angle adjustment slots into the threaded
receivers mounted on the back sensor panel (Fig-
ure 6). Tighten these knobs to position the back
at the 95 degree angle mark.
FIGURE 6 INSERTING THE ADJUSTMENT
KNOBS
10. Install the footrests by placing them on the front,
vertical, frame tubes. The footrests hook around
these tubes and are held in place by friction.
11. Install the armrests by sliding them into the receiv-
ing sockets located on the left and right side plates.
Knobs are used to adjust the height of these arm-
rests.
12. Install the Back Imprint Handle into the threaded
hole on the back imprinter (Figure 7). Be careful
not to cross thread the handle while screwing it
into place. The handle should screw easily into the
threaded receptacle.
FIGURE 7 INSTALLING THE BACK
IMPRINTER

TRANSPORTING

The Shape Sensor can be transported either fully as-
sembled, or in parts. What method is chosen is de-
pendent upon the type of vehicle to be used and if a
portable ramp is available. The Shape Sensor should
be secured in a manner that will prevent it from shifting
around while the vehicle is moving and from becom-
ing a projectile if an accident should occur.

Locking the back sensor panel

Anytime a client is going to transfer onto the Shape
Sensor or whenever it is transported/disassembled,
the back sensor panel must be locked.
1. Make sure all of the plungers are flattened out and
that the back sensor lever is pushed all of the way
to the most rearward position (Figure 8).
FIGURE 8 PUSHING IN THE SENSOR
11
TRANSPORTING
LEVER
98-110
