This manual MUST be given to the user of the product.
BEFORE using this product, this manual MUST be read and saved
for future reference.

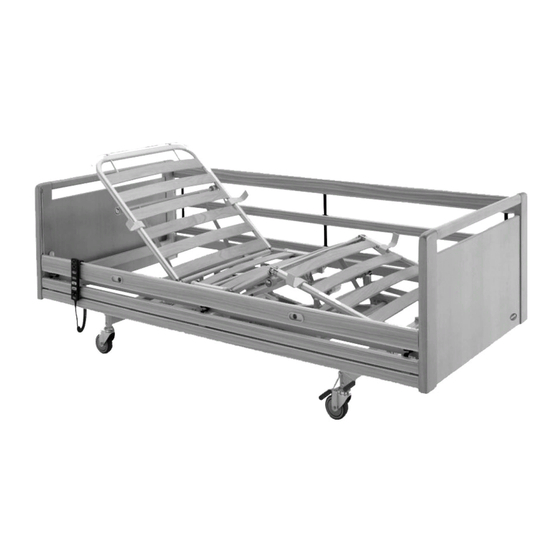

Invacare® SB® 755
en Bed
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB 755 and is the answer not in the manual?

Questions and answers

Related Manuals for Invacare SB 755

Summary of Contents for Invacare SB 755

  • Page 1 Invacare® SB® 755 en Bed User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
  • Page 2 All rights reserved. Republication, duplication or modification i n w hole o r i n p art i s p rohibited w ithout p rior written permission from Invacare. Trademarks are identified b y ™ and ® . A ll t rademarks a re o wned b y o r l icensed t o Invacare...

  • Page 3: Table Of Contents

    Contents 9.4 Test specifications for immunity to RF wireless communications equipment..... . 23 1 General ......... 1.1 Introduction .

  • Page 4: General

    This product features the CE mark, in compliance with the be found in the country-specific sales documents. Medical Device Regulation 2017/745 Class I. Invacare reserves the right to alter product specifications This product features the UKCA mark, in compliance with without further notice.

  • Page 5: Safety

    – Ensure all cables are routed and secured Invacare provider or qualified technician before properly. attempting to use this product. – Ensure there are no loops of excess cable –...

  • Page 6: Mattresses

    – Only use original accessories for the product in use. – Due to regional differences, refer to your local Invacare catalog or website for available WARNING! accessories or contact your local Invacare Risk of falling representative.

  • Page 7: Labels And Symbols On The Product

    If such use is necessary, the bed and the other equipment must be closely observed to verify UK Conformity Assessed that they are operating normally. This bed can be used together with Invacare approved accessories and medical electrical Abbreviations for technical data: equipment connected to the heart (intracardially) •...
  • Page 8 Invacare® SB® 755 Label on 3/4 length side rails Transport and storage conditions Operation conditions Indicates the maximum space between side rail and the head bed end. See the mounting instruction in the service manual of the bed or the instruction delivered with the side rail.

  • Page 9: Product Overview

    Due to regional differences, refer to your local The bed is intended for indoor use only. Invacare website or catalog for details about available options or contact your Invacare provider. Maximum user weight is 200 kg and safe working load is 235 kg.
  • Page 10 Invacare® SB® 755 • Emma, Piggy and Olivia – bed ends without guideways • Lifting pole – to be mounted on one of the lifting pole for full length side rails tubes at the head end of the bed (fixed or swivelling) •...

  • Page 11: Usage

    Usage 4.3 Operating side rails 4 Usage WARNING! Risk of entrapment or suffocation 4.1 General Safety Information There’s a risk of entrapment or suffocation between mattress support, side rail and bed end. WARNING! – Always ensure correct fitting and tightening of Risk of personal injury and damage to property.

  • Page 12: Britt V And Line Side Rails

    Invacare® SB® 755 4.3.2 Britt V and Line side rails 4.3.3 Verso II side rails Lock / Upper position Pull up the top wooden side rail bar, until the locking pin locks with an audible click Release Lift the top wooden side rail bar and press the two locking rings together.

  • Page 13: Soft Control

    Castors might make marks on different types of 4.7 Lifting pole absorbing floor surfaces - such as untreated or badly treated floors. To prevent marks, Invacare® WARNING! recommends to place a suitable kind of protection Risk of injury between the castors and the floor.

  • Page 14: Place The Lifting Pole

    Invacare® SB® 755 4.8 Emergency positions 4.7.1 Place the lifting pole The lifting pole can be placed either on the left or the right In case of a medical emergency, it might be required to side of the head end of the bed.

  • Page 15: Maintenance

    – Never use a solvent (cellulose thinner, acetone Contact your Invacare provider or in-house service etc.) that changes the structure of the plastic department for service.

  • Page 16: Disinfection Instructions

    Invacare® SB® 755 • Cleaning agent: We recommend using a mild detergent 1. Ensure the surfaces are cleaned before disinfection. with neutral or near neutral pH (5-9). 2. Moisten a soft cloth and wipe-disinfect all accessible surfaces and keep them moistened for the exposure Commercially available consumer products like time stated on the label of the disinfectant.

  • Page 17: After Use

    After Use 6.2 Reconditioning 6 After Use This product is suitable for reuse. To recondition the product for a new user, carry out the following actions: 6.1 Disposal • Inspection Be environmentally responsible and recycle this product • Cleaning and disinfection through your recycling facility at its end of life.

  • Page 18: Troubleshooting

    Invacare® SB® 755 7 Troubleshooting 7.1 Troubleshooting Symptom Possible cause Remedy Bed section does not move End of stroke reached Operate opposite button Bed not plugged in Plug in mains cable Ensure hand control correctly connected Hand control not connected to control unit.

  • Page 19: Technical Data

    With smaller or bigger castors, the heights differ Plus 2 side tube. steel accordingly. Release side rail button in Invacare® reserves the right to change the stated the head measurements and angles without warning. section. 165 cm x 46 Scala 3/4 length Mounted...

  • Page 20: Allowed Mattress Sizes

    Invacare® SB® 755 8.5 Allowed mattress sizes Mattress support 25 kg 34 kg 37 kg (upper half) Allowed mattress Heights and Lengths Mattress Allowed Heights and Lengths depend on the side support 23 kg 33 kg 36 kg rail model used...

  • Page 21: Electrical System

    Technical Data Allow the product to reach operation temperature Sound level 55 dB (A) before usage: Degree of The control unit, motors and hand • Warming up from minimum storage temperature protection control are protected according to IPx6 might take up to 24 hours. or IPx6w (depend on configuration).

  • Page 22: Electromagnetic Compatibility (Emc)

    Invacare® SB® 755 9 Electromagnetic compatibility (EMC) 9.1 General EMC information Medical Electrical Equipment needs to be installed and used according to the EMC information in this manual. This product has been tested and found to comply with EMC limits specified by IEC/EN 60601-1-2 for Class B equipment.
  • Page 23 Electromagnetic compatibility (EMC) Immunity test Electromagnetic environment – guidance Test / Compliance level < 0% U for 0,5 cycle at Voltage dips, short Mains power quality should be that of a typical commercial or hospital 45° steps interruptions and environment. If the user of this product requires continued operation during voltage variations 0% U for 1 cycles...
  • Page 24 Invacare® SB® 755 Test Frequency Service Maximum Immunity test Band (MHz) Modulation Distance (m) (MHz) power (W) level (V/m) GSM 1800; CDMA 1900; 1720 Pulse GSM 1900; 1845 1700 - 1990 modulation DECT; LTE Band 1970 217 Hz 1, 3, 4, 25;...
  • Page 25 Notes...
  • Page 26 Notes...
  • Page 27 Notes...
