The fabric support strap. The strap is attached to the bracket slot with a single cage
3
nut and screw.
The cable is routed to the cable management plate, and down to the interconnect.
4
The cable connector (shown in slot 5 in this example for the DL380 G5 and DL385
5
G2 servers or slot 1 for the RX2660 server), which you must secure level and square
to the HCA port to prevent EMI leakage.
The rear right rack column.
6
3. The bracket's mounting holes should align with a square hole in each of the rear rack columns.
(A minor vertical adjustment might be necessary, but the bracket must remain approximately
aligned with the top of the PCI port). Mark the rack column holes with a marker pen or tape.
4. Clip two cage nuts into back of each rack column, using the square holes that you marked
in step 3.
5. Using a #2 Phillips screwdriver, secure the bracket to the rack column with two M6 x 16-mm
fasteners.
Proceed to Section

2.1.2 ProLiant DL585 G1 and ProLiant DL585 G2 Mounting Instructions

Use this procedure for the ProLiant DL585 servers, or as specified in the installation instructions
for your system. Working at the rear of the rack, follow these steps to install the bracket:
1. For systems with vertical PCI slots, such as the ProLiant DL585, align the top surface of the
bracket (callout 1 in
(callout 2).

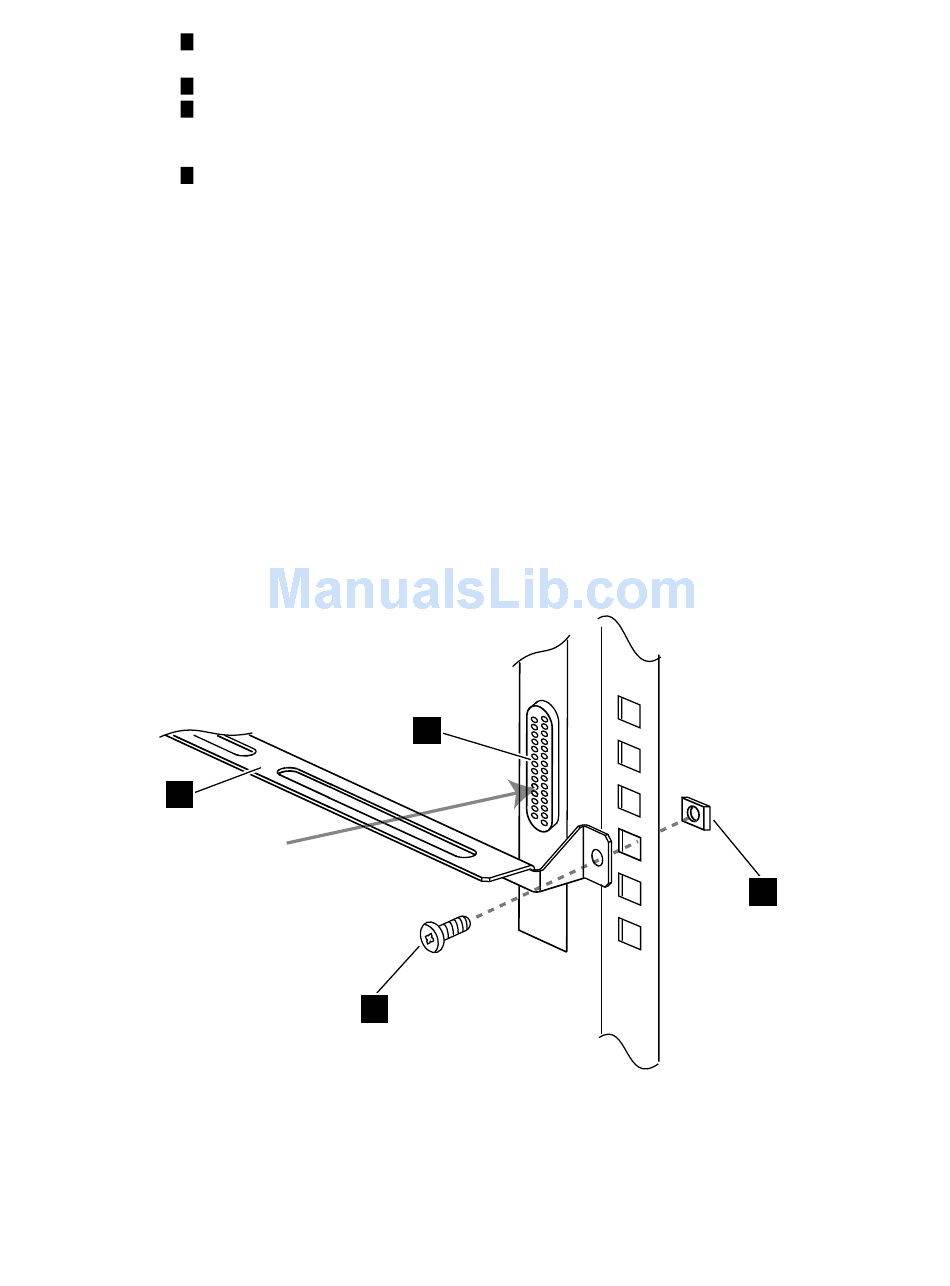

Figure 2-2 Aligning the Bracket with the Port of DL 585 Servers (Vertical PCI Slot)
1
10 Installing the Kit
(Figure 2-2 shows an example on how to insert a cage nut.)
2.1.3.
Figure 2-2) so that it is .25-inch (6 mm) below the center of the port
3
2
4
