Intermec Antares 2400 Series Instruction Sheet

P/N 064214-004
®
TRAKKER Antares
Vehicle-Mount Holder Instruction Sheet
The vehicle-mount holder is a convenient way to use and store the TRAKKER Antares 2420 or
2425 terminal on a vehicle. It is designed to attach to a vertical or horizontal surface and will
securely hold your terminal when the vehicle is moving.

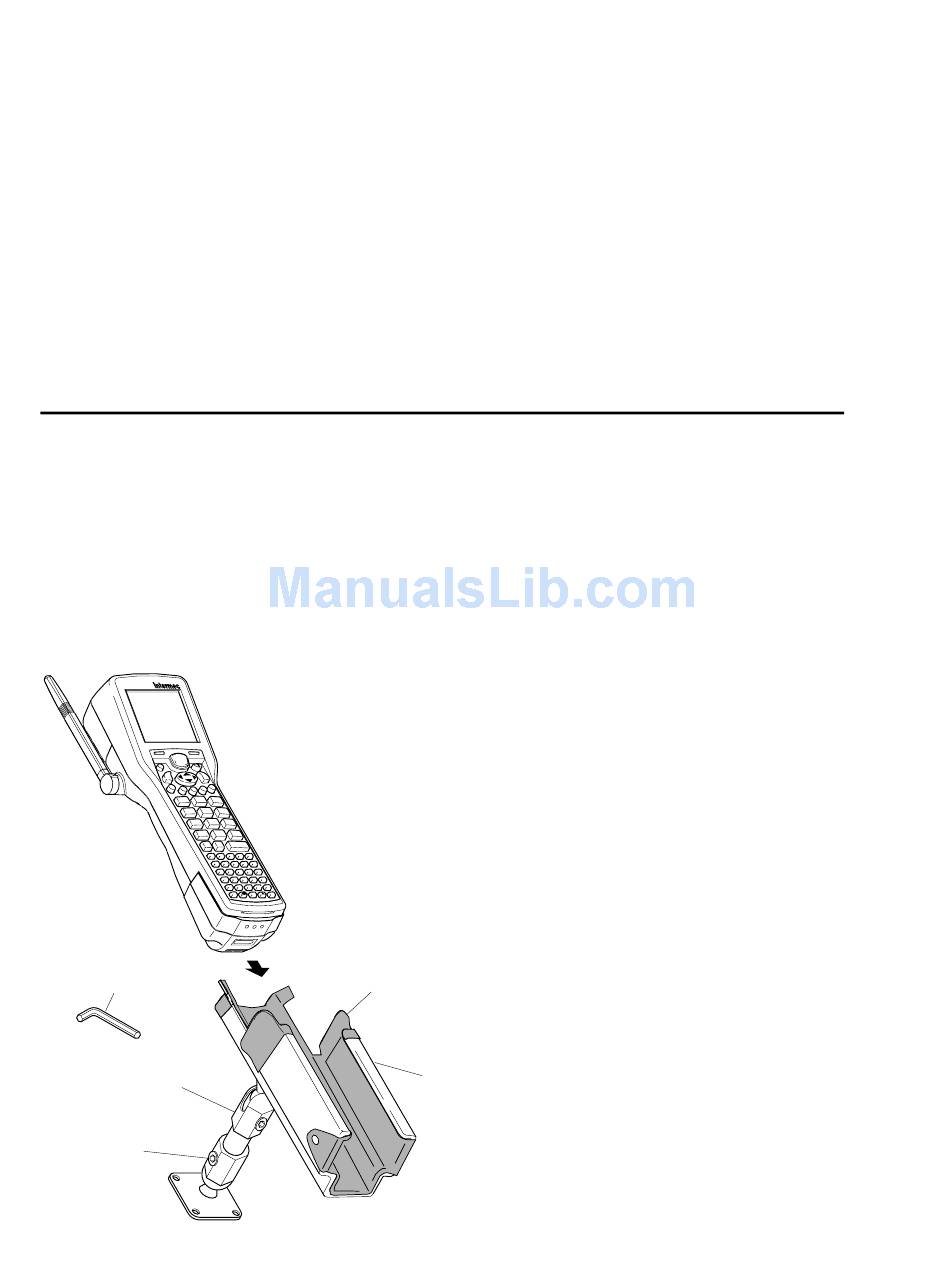

The vehicle-mount holder is a two-piece unit consisting of a locking swivel stand and a terminal
holder that is lined with a removable foam insert. Also included is an Allen wrench for adjusting
the stand. The mounting hardware (bolts, nuts, and washers) is not supplied.
To order a replacement foam insert, contact your local Intermec representative.
I/O
F5
F1
F4
F2 F3
7
8 9
5
4
1 2
Fn L Fn R
A B
F
K
Allen
wrench
Locking swivel
stand
Ball joint
screw
™
2400 Series
6
3
0
Enter
C D E
G H I J
L M N O
P Q R S T
U V W X Y
Z
Tab Esc
Removable
foam insert
242XI.001
Adjusting the Locking
Swivel Stand
An Allen wrench is included to
adjust the locking swivel stand.
Loosen the ball joint screws using
the Allen wrench and adjust to the
desired position. Tighten the screws
to 60 in-lb (6.78 N
stand.
Installation Tips
When you attach the vehicle-mount
holder to a vehicle, make sure there
is enough clearance to insert or
remove the terminal from the holder.
All mounting hardware (bolts, nuts,
Terminal
washers, etc.) should be of sufficient
holder
strength to secure the vehicle-mount
holder in place.
Use the vehicle-mount holder's base
as a template for the screw position.
The holes are 2 inches (5.08 cm) apart
and use No. 8 (M3.5) screws.
.
m) to secure the
