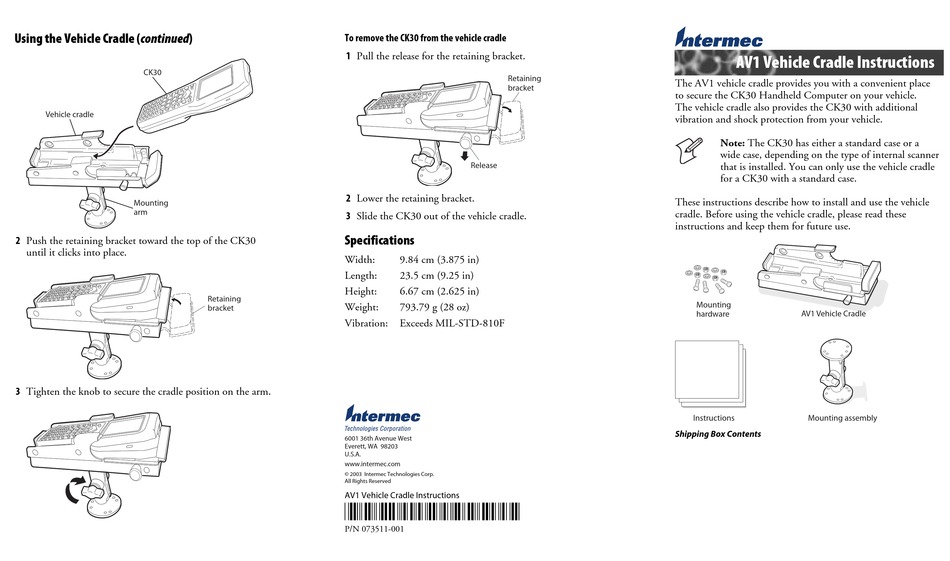

Intermec AV1 Instructions

Using the Vehicle Cradle ( )
CK30
Vehicle cradle
Mounting
arm
2 Push the retaining bracket toward the top of the CK30
until it clicks into place.
3 Tighten the knob to secure the cradle position on the arm.
To remove the CK30 from the vehicle cradle
1 Pull the release for the retaining bracket.
2 Lower the retaining bracket.
3 Slide the CK30 out of the vehicle cradle.
Specifications
Width:
Length:
Height:
Retaining
Weight:
bracket
Vibration:
6001 36th Avenue West
Everett, WA 98203
U.S.A.
www.intermec.com
© 2003 Intermec Technologies Corp.
All Rights Reserved
AV1 Vehicle Cradle Instructions
*073511-001*
P/N 073511-001
Retaining
bracket
Release
9.84 cm (3.875 in)
23.5 cm (9.25 in)
6.67 cm (2.625 in)
793.79 g (28 oz)
Exceeds MIL-STD-810F
AV1 Vehicle Cradle Instructions
The AV1 vehicle cradle provides you with a convenient place
to secure the CK30 Handheld Computer on your vehicle.
The vehicle cradle also provides the CK30 with additional
vibration and shock protection from your vehicle.
Note: The CK30 has either a standard case or a
wide case, depending on the type of internal scanner
that is installed. You can only use the vehicle cradle
for a CK30 with a standard case.
These instructions describe how to install and use the vehicle
cradle. Before using the vehicle cradle, please read these
instructions and keep them for future use.
Mounting
AV1 Vehicle Cradle
hardware
Instructions Mounting assembly
Shipping Box Contents
