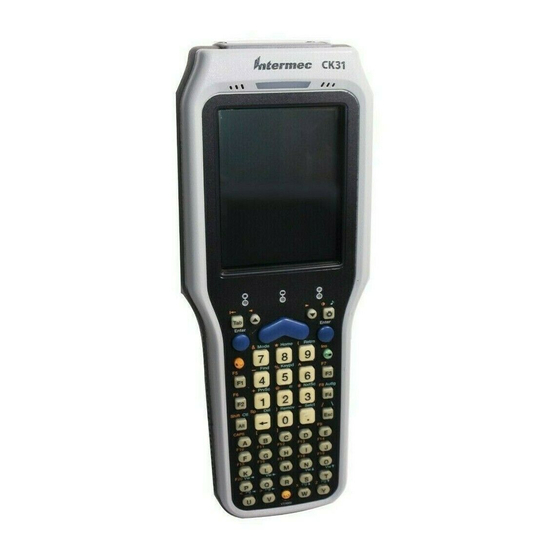

Intermec CK31 Instructions

To remove the CK31 from the vehicle cradle
1 Pull the release for the retaining bracket and lower the
retaining bracket.
Release
2 Slide the CK31 out of the vehicle cradle.
Using a Tethered Scanner with the Cradle
If you want to use a tethered scanner while you have the CK31
inserted into the vehicle cradle, you can remove the bottom
bracket.
To remove the bottom bracket
1 Remove the two nuts that secure the bottom bracket to the
vehicle cradle.
Nut
(2 places)
Bottom
bracket
2 Screw the two plastic caps onto the bolts that secured the
bottom bracket to the vehicle cradle.
Cap
(2 places)
Retaining
bracket
3 Insert the CK31 with the tethered scanner.
Specifications
Width:
Length:
Height:
Vibration:
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
©
2005 Intermec Technologies
Corporation. All rights reserved.

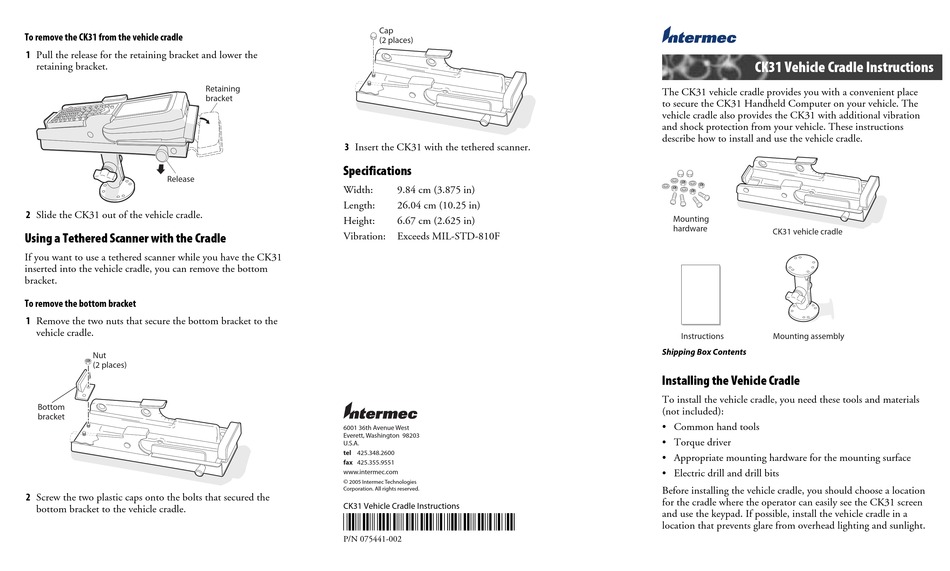

CK31 Vehicle Cradle Instructions
*075441-002*
P/N 075441-002
9.84 cm (3.875 in)
26.04 cm (10.25 in)
6.67 cm (2.625 in)
Exceeds MIL-STD-810F
CK31 Vehicle Cradle Instructions
The CK31 vehicle cradle provides you with a convenient place
to secure the CK31 Handheld Computer on your vehicle. The
vehicle cradle also provides the CK31 with additional vibration
and shock protection from your vehicle. These instructions
describe how to install and use the vehicle cradle.
Mounting
hardware
CK31 vehicle cradle
Instructions Mounting assembly
Shipping Box Contents
Installing the Vehicle Cradle
To install the vehicle cradle, you need these tools and materials
(not included):
• Common hand tools
• Torque driver
• Appropriate mounting hardware for the mounting surface
• Electric drill and drill bits
Before installing the vehicle cradle, you should choose a location
for the cradle where the operator can easily see the CK31 screen
and use the keypad. If possible, install the vehicle cradle in a
location that prevents glare from overhead lighting and sunlight.
