I I M M P P O O R R T T A A N N T T : : If installing on a concrete floor, concrete fasteners are
required and are not included in the Anti-Tip kit.

INSTALLATION

Finished flooring should be protected with appropriate mate-
rial to avoid damage from moving the unit.
If unit has been laid on its back or sides, place unit upright
and allow minimum of 24 hours before connecting power.
1. Plug the unit into the 15 amp grounded outlet located in the installa-
tion opening. With power applied to the unit, check that lighting and
cooling function operate properly, then turn off power to the wall out-
let at the circuit breaker.
WARNING
Shut off power to the wall outlet before installing unit into the
opening.
2. Check that the following are level and square:
- front face and interior opening
- installation opening and floor surface
- countertop bottom front edge
I I M M P P O O R R T T A A N N T T : : The floor under the unit must be at the same level as the
surrounding finished floor.
3. If all surfaces are level, refer to Figure 3 and perform the following:
a. Measure from the floor to the bottom of the front edge of the
countertop.
b. Measure the rear of unit cabinet from floor to top of cabinet, at
back corners.
c. Adjust rear legs so B measurement equals A measurement.
Using an adjustable wrench or pliers, turn legs counterclockwise
to raise the unit or clockwise to lower the unit.
I I M M P P O O R R T T A A N N T T : : Levelling legs should not extend more than 3/4" from bot-
tom of unit.
4. Slide the unit into position. Make sure the rear levelling legs slide
under the anit-tip brackets. Push the unit into the opening until the
bottomfront edge of the unit is flush with the surrounding cabinetry,
or until the rear legs are tight against the anti-tip brackets.
I I M M P P O O R R T T A A N N T T : : The rear levelling legs must be engaged under the anti-tip
brackets.
5. Shim the front of the unit so the front face is flush with the surround-
ing cabinetry. Adjust the front legs to support the countertop at the
shimmed height. Using an adjustable wrench or pliers, turn legs
counterclockwise to raise the unit or clockwise to lower the unit.
Countertop should be resting on top of the unit.
© 2008
CAUTION
15" Signature Series Operation / Installation Manual
"B" Measurement
Void area in cabinetry for unit
"A" Measurement
I I M M P P O O R R T T A A N N T T : : If countertop is not resting entirely unit top, shim the coun-
tertop to prevent damage to the countertop.
To prevent damage to the countertop and unit underneath, do
not place heavy objects on countertop directly above the unit.
6. Check interior door openings inside unit and ensure unit is level.
The louvered toe plate must be removed to service the unit.
The floor cannot interfere with removal. The louvered sec-
tions must not be covered or obstructed to prevent proper air
circulation.

SHELVING

I I M M P P O O R R T T A A N N T T : : To achieve maximum performance, interior louver openings
and fan guard openings should never be obstructed.
Refrigerator
The single door unit comes standard with black vinyl coated adjustable
full extension pullout shelves.

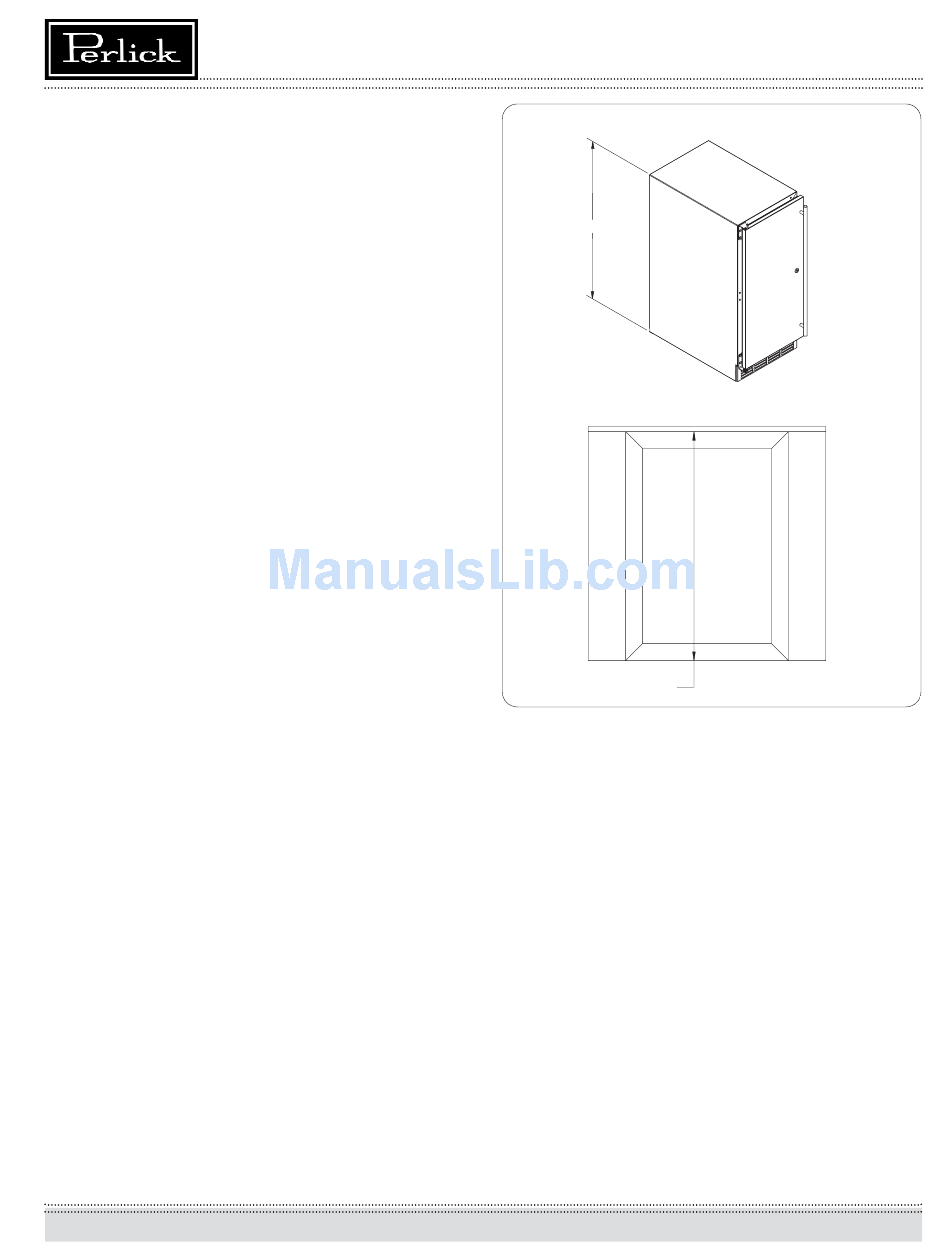

Figure 3. Levelling
CAUTION
