ANTI-TIP BRACKETS

WARNING
Unit may tip forward if loaded racks/shelves are all pulled
out at the same time. To prevent tipping and provide a stable
installation, the unit must be secured in place with the anti-tip
brackets provided with the unit.
A set of metal anti-tip brackets and necessary hardware is supplied
with the unit. The anti-tip brackets, when properly installed, should
secure the rear legs and prevent the unit from tipping forward.
Some installation sites may require modification to provide a
secure surface for attaching brackets. Refer to Figure 3 (below) for
mounting bracket locations for 15" Signature Series models.
IMPORTANT NOTE: If installing on a concrete floor, concrete
fasteners are required and are not included in the Anti-Tip Kit.

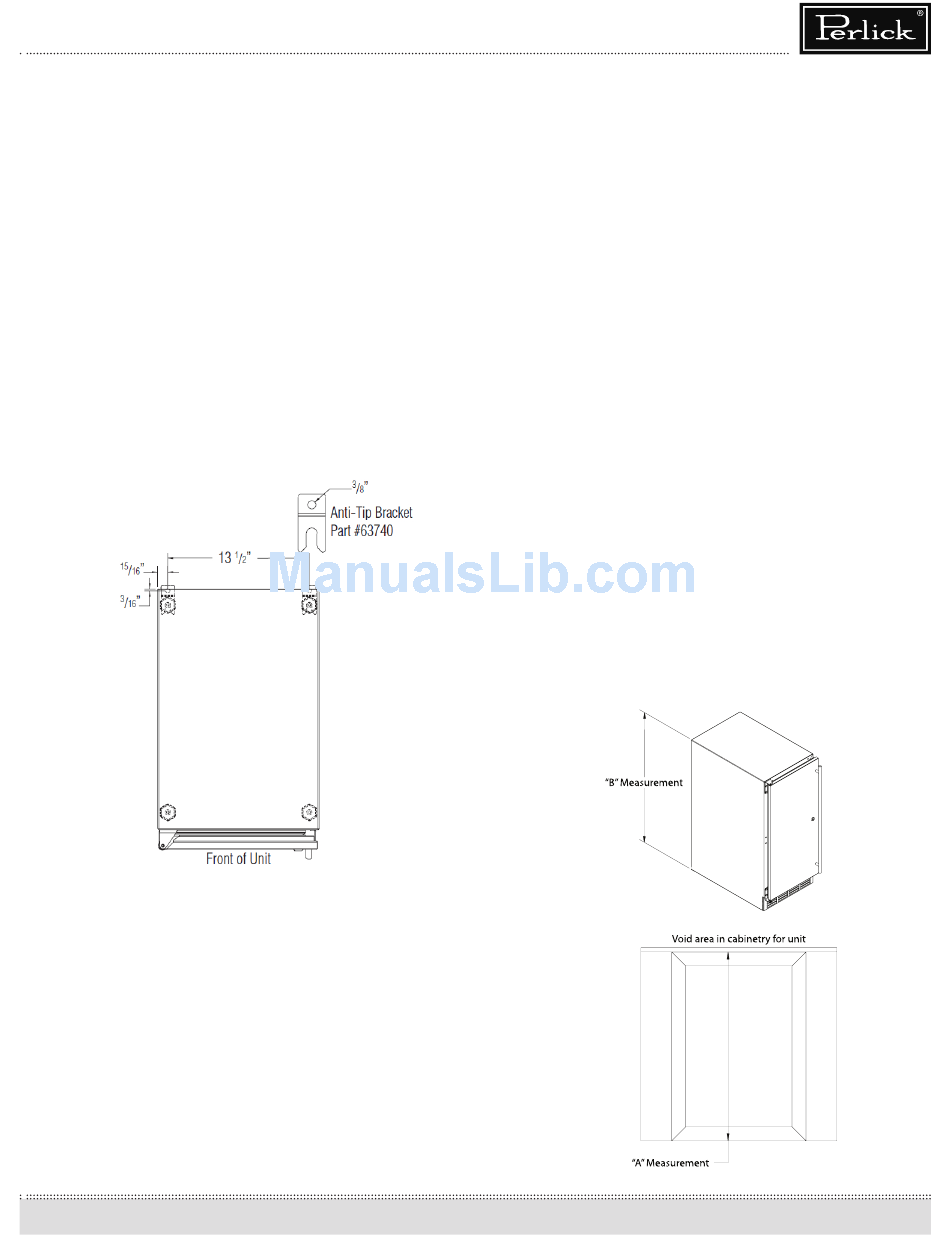

Figure 3 - 15" Anti-Tip Kit Drawing

INSTALLATION

CAUTION
Finished flooring should be protected with the appropriate
material to avoid damage from moving the unit.
If unit has been laid on its back or sides, place unit upright and
allow minimum of 24 hours before connecting power.
1. Plug in the unit into the 15 amp grounded outlet located
in the installation opening. With power applied to the unit,
check that the lighting and cooling function operate properly,
then turn off power to the wall outlet at the circuit breaker.
Operation & Installation Manual
Signature Series (HP15 model)
WARNING
Shut off power to the wall outlet before installing unit into the
opening.
2. Check that the following are level and square:
•
front face and interior opening
•
installation opening and floor surface
•
countertop bottom front edge
IMPORTANT NOTE: The floor under the unit must be at the same
level as the surrounding finished floor.
3. If all surfaces are level, refer to Figure 4 (below) and perform
the following:
a. Measure from the floor to the bottom of the front edge of
the countertop.
b. Mesure the rear of the unit cabinet from floor to top of
cabinet, at back corners.
c. Adjust rear legs so B measurement equals A measurement.
Using an adjustable wrench or pliers, turn legs counter-
clockwise to raise the unit or clockwise to lower the unit.
IMPORTANT NOTE: Leveling legs should not extend more than
3/4" from bottom of the unit.
4. Slide cabinet into position. Make sure the rear levelling legs
slide under the anti-tip brackets. Push the unit into the open-
ing until the bottom front edge of the unit is flush with the
surrounding cabinetry, or until the rear legs are tight against
the anti-tip brackets.
Figure 4 - Leveling
7
