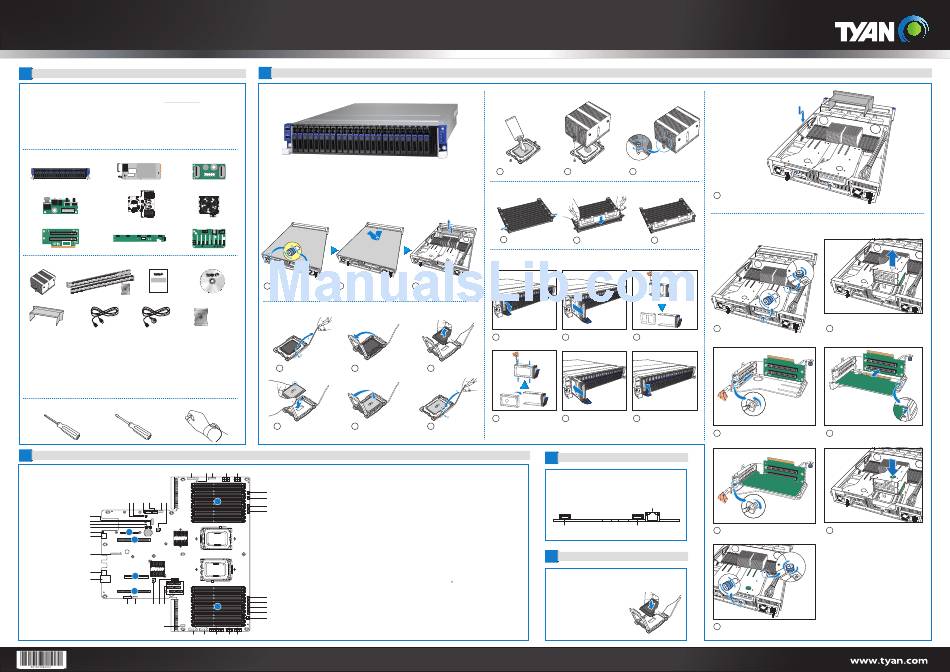

TYAN TA70-B8237 Quick Installation Manual

TA70-B8237 Quick Installation Guide
Document # D2234-100/ Revision 1.0
1
General Information
Read Me First
1. The Barebone User's Manual is available for download from our Web site at http://www.tyan.com. Make sure to read all
precautions and instructions before you start installing the server system.
2. Refer all servicing to qualified personnel to avoid the risk of damage to the server system.
3. Exercise normal ESD (Electrostatic Discharge) procedures during system integration. TYAN/MiTAC recommends wearing
gloves and an anti-static wrist strap to avoid possible damage to the equipment.
4. Current processor socket design places the pins on the motherboard instead of the processor itself. Exercise caution when
installing the processors as the manufacturer's warranty does not cover damage inflicted upon the motherboard, including
damage to the CPU sockets.
Box Content
0 1 2 3 4 5 6 7 8 9 10 1 1 12 13 14 15 16 17 18 19 20 21 22 23
2U barebone, (24) hot swap HDD bays (1+1), 750W power
supply unit
M1701T70-FPB
TYAN ® S8237 system board
(pre-installed)
30
30
(2) M2212-R16-2F Riser card M1807TA7-FB (3) M1256T70-BP6-8 HDD BP
Accessories
Quick Installation
Guide
FL00EUI-A
CPU heatsink x 2 Sliding Rails x 2 & Screw Pack x 1 Quick Installation Guide x 1 Driver's and Utilities CD x 1
AIr Duct x 1 AC Power cord (US) x 2 AC Power Cord (EU) x 2 Screw Pack x 2
Required Hardware Components
Minimum Hardware Requirements
To avoid integration difficulties and possible board damage, your system must meet the following minimum requirements:
• Processor: AMD® Opteron® 6100 Series Processors (Magny-Cours), AMD® Opteron® 6200 Series Processors (Interlagos), AMD®
Opteron® 6300 Series Processors (Abu Dhabi)
• Memory Type: Minimum of one 1GB, 240-pin DDR3 800/1066/1333/1600/1866-MT/s DIMMs.
• Hard Disk Drives: SATA/SAS
• Rack Mount Kit (Industry 19" rack-mountable)
NOTE: For an up to date list of compatible hardware, please visit the system's support page on www.tyan.com
Tools Required
Phillips Screwdriver Flat-head Screwdriver Anti-Static Wrist Strap
2
Motherboard Placement
31
Motherboard Placement
35 34 3332
e d
1
a
b
c
2 C
3
D SR5670
4
SP5100
5
E
6
F
7 8 9 10 11
12
13 14
3
System Installation
Open the Chassis
M1702T70-USB
Preparing the Chassis
Read normal ESD (Electrostatic Discharge) procedures.
Place your TYAN ® Server Chassis on a flat anti-static surface to perform the following integration procedures. Read
ESD procedures before reaching inside to install components.
(5) System fans
Loosen the 2 thumb screws on Take off the top cover.
1 2
the back side.
Install the Processor
FL00EUI-A
Open the socket lever. Open the CPU
1 2
socket cover.
Install the processor Close the CPU
4 5
and make sure the socket cover.
gold arrow is located in
the right direction.
30 29 28 27
CONNECTORS
1.
TYAN Module Header (J96)
2. ID LED (LED1)
26
3. USB2.0 Port (USB5)
25
A 4. NCSI Header (J4)
5. USB2.0 Port (USB4)
24
6.
LAN Port # 3 (LAN3)
23
7. VGA Header (J27)
8. IMC IPMB Header (J6)
9. System BIOS (U108)
10. SATA SGPIO Header (J63)
11.
SATA Connector (SATA0~SATA5)
12. USB Front Panel Header (J91)
13/14. 4-pin Power Connector (PW2/PW1)
CPU 0
15. 16-pin Power Connector (PW3)
SLOTS
CPU 1 A CPU0 DIMM SLOT [Channel A/B/C/D]
B CPU1 DIMM SLOT [Channel A/B/C/D]
C PCI-E X 8 MEZZ Card
D PCIE Gen2 slot (x8)
E PCI-E X 1 IMC Card
22
F PCIE Gen2 slot (x8)
21
B
20
19
Note:
18
- There is risk for the customers when setting the jumper by yourselves.
- Customers need to add an external PCI-E VGA card.
15 16 17
Install the CPU Heatsink
1 2
Apply the thermal grease. Install the CPU heatsink.
Install the Memory
1
2
Unlock the clips. Insert the memory module.
Install the Hard Disks
Take off the air duct.
3
1 Press the locking lever and 2 Slide the HDD tray out.
pull the locking lever open.
Remove the CPU
3
protective cap.
4 Place a hard drive into 5 Reinsert the HDD tray into
the drive tray. the chassis.
Close the
6
Use four screws to
socket lever.
secure the HDD.
4
I/O Ports
Locate the External I/O Port
16/17. 8-pin Power Connector (PWR3/PWR2)
18. 4-pin Power Connector (PW4)
19/20. Fan Connector (J23/J24)
21/22. Fan Connector (J21/J15)
23/24. Fan Connector (J14/J10)
25/26. Fan Connector (J9/J55)
27/28. 8-pin Power Connector (PWR5/PWR4)
29. Front Fan Header (J99)
30. Chassis Intrusion Header (JP16)
31.
Front Panel Header (J64)
32. Super I/O ROM (U118) USB2.0 Port
33. USB Front Panel Header (J90)
34. Vertical Type-A USB Connector (USB0)
35. COM Header (J8)
5
Caution
JUMPERS
a COM Debug Jumper (JP14)
b Clear CMOS Jumper (JP8)
CPU Cover for DOA/RMA
c Chassis Con g Jumper (JP9/JP10)
d/e
COM Debug Jumper (JP11/JP12)
Note: Please save and replace the CPU
protection cap when returning
the server board for service.
Installing the Air Duct
3
Secure the heatsink screws.
1
Place the Air Duct onto the chassis.
Installing the Add-On card (Optional)
3
Lock the clips.
1 Unscrew the riser
card assembly.
3 Unscrew the HDD tray bracket.
6 Press the locking lever
to secure the tray.
Repeat the same procedures
to install other HDD trays.
Unscrew to remove the PCI bracket from the riser
3
bracket.
Ethernet
(LAN3)
shared with IPMI
USB2.0 Port
5 Secure the add-on card onto the riser bracket.
7 Secure the add-on module to the chassis using a
thumb screw.
2 Lift the riser bracket up.
Insert the add-on card onto the riser bracket.
4
6 Insert the riser bracket with the add-on module onto
the chassis.
NOTE:
1. Connect the add-on power cable to the connector of
the add-on module.
2. There are two riser brackets inside the chassis. To install
other add-on cards onto the riser brackets, please refer to
the barebone user's manual on our web site at
http://www.tyan.com for more details.
