Sony Installation
Sony Projector Connections
_ If the installation includes looping (master/slave) switchers, see Chapter 5.
If Video Loop Back is part of the installation, see pages 2-10 and 2-11.
Extron • System 8/10 P
LUS

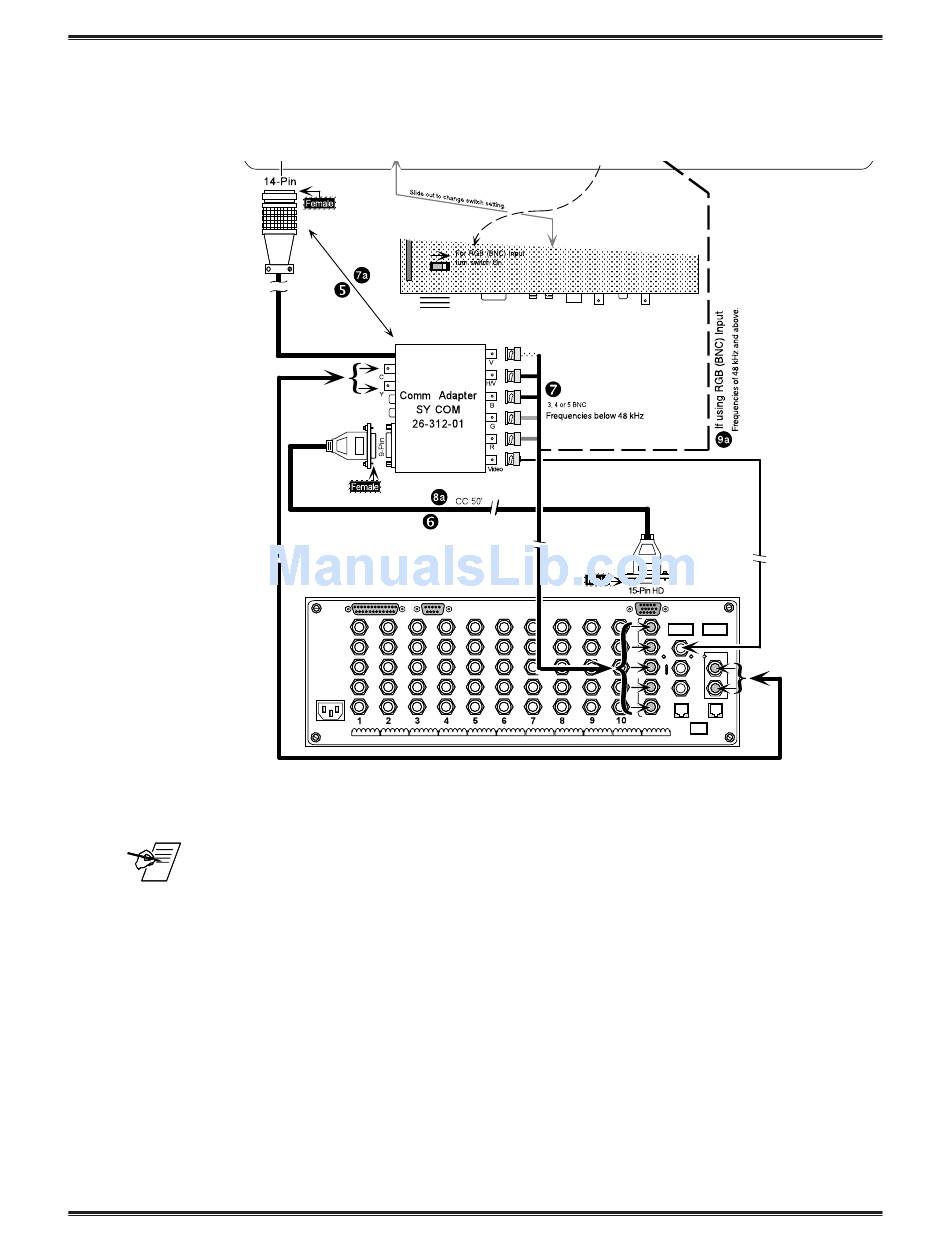

Use the illustration below when connecting the System 8/10 P
projector. Refer to Sony documentation to continue the installation.
• User's Manual • P/N 68-408-01 Rev. A
Configuration and Connections
to a Sony
LUS
Page 2
