Doyon SM200 Installation And Maintenance Manual

Planetary dough mixer
Hide thumbs Also See for SM200:

Advertisement

Table of Contents

See also: Instruction Manual
ÉQUIPEMENT DOYON INC.
1255, rue Principale
Linière, Qc, Canada G0M 1J0
Tel.: 1 (418) 685-3431
Canada: 1 (800) 463-1636
US: 1 (800) 463-4273
FAX: 1 (418) 685-3948
Internet:
http://www.doyon.qc.ca
e-mail:
doyon@doyon.qc.ca
SM200, SM201, SM300, SM401, SM402NA
Product / Produit:
Serial number / Numéro de série:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Doyon SM200

Summary of Contents for Doyon SM200

  • Page 1 1255, rue Principale Linière, Qc, Canada G0M 1J0 Tel.: 1 (418) 685-3431 Canada: 1 (800) 463-1636 US: 1 (800) 463-4273 FAX: 1 (418) 685-3948 Internet: http://www.doyon.qc.ca e-mail: doyon@doyon.qc.ca SM200, SM201, SM300, SM401, SM402NA Product / Produit: Serial number / Numéro de série:...

  • Page 2: Table Of Contents

    SECTION « G ». ELECTRIC SCHEMATICS SM200 & SM201 120 Volts 60 Hz ......
  • Page 3 SM201 & 401 220 Volts 50/60 Hz ......SM402NA 220 Volts 50/60 Hz ....... . Warranty .

  • Page 4: Installation And Maintenance

    Normal use and adequate maintenance will guarantee a reliable service for years to come. The planetary dough mixer is available in five different models: SM200, 20 quart with hub attachment. SM201, 20 quart without hub attachment. SM300, 30 quart with hub attachment.
  • Page 5 C O N S T R U C T I O N You now have the most performant planetary dough mixer on the market in its category. This planetary mixer is manufactured using the highest quality components and materials. S H I P P I N G For your safety, this equipment has been verified by qualified technicians and carefully crated before shipment.
  • Page 6 W A R N I N G FOR YOUR SAFETY BEFORE CLEANING OR ANY MAINTENANCE PROCEDURE MAKE SURE THE MAIN POWER IS OFF. IMPORTANT INSTALLATION AND SERVICE A qualified technician must do servicing. The mixer must be connected to the utility and electrically grounded in conformity to the effective local regulations.
  • Page 7 SM MIXERS CHART Tool SM402NA SM401 SM300 SM201 SM200 Bowl capacity (qts or liters) Standard #12 attachment Transmission driven by Belt Belt Gear Belt Gear Dough weight Cake Falt beater 45 lb/20kg 30lb/13.5kg 25lb/11.3kg 20lb/9kg 20lb/9kg Sponge cake Whip 30lb/13.5kg...

  • Page 8: Warnings

    I N S T A L L A T I O N IN GENERAL Open the crate and remove all materials used for packing as well as the accessories. Put the mixer on a straight floor and make sure the mixer is level. For a optimal stability and security use the hole on each leg to fix the mixer on the floor or the table Each unit is set up to be used with the electrical supply specified on the nameplate fixed on the side of the mixer.

  • Page 9: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE ANSWERS TO MOST FREQUENT QUESTIONS Always cut the main power off before replacing any parts. Questions Solutions The mixer does not turn on when powered. Check if the electric cord is connected. Check the breaker of the building. Check the breaker on the back of the mixer.

  • Page 10: Mixer Cleaning And Maintenance

    MIXER CLEANING AND MAINTENANCE LUBRICATION The motor has grease-packed ball bearings and requires little attention. The transmission gearing is packed with special grease that will last for several years. When grease is needed for replacement, it should be ordered from our factory. The bowl lift are to be cleaned and lubricated with vegetable grease.

  • Page 11: Planetary Dough Mixer Description

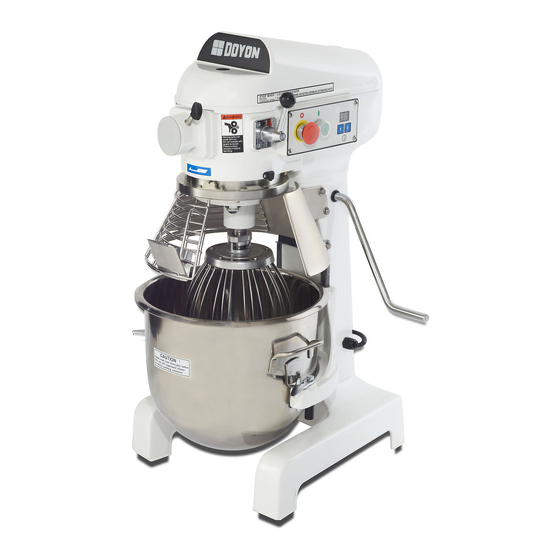

    PLANETARY DOUGH MIXER DESCRIPTION SM200 20-quart mixer with stainless steel bowl, hook, beater and whip Security bowl guard with Hub attachment for meat grinder and vegetable cutter. Motor: 1/2 HP.120 Volts 12 Amp. 60 Hz NEMA 5-15P. Transmission engages by gear.
  • Page 12 INSTALLATION OF VEGETABLE OR MEAT CUTTER ATTACHMENT Insert the attachment with a slight twist to the left so that the stop stud of the attachment is tight against the side of the hole in the mixer. The attachment speed is selected by the speed selector handle.
  • Page 14 Item Part Number Description Quantity CL1010 LOCK SCREW CL1007 KNIFE DISC LOCK ON CL1005 DOOR LATCH CL1012 UPPER HINGE PIN CL1002 DOOR CL1013 LOWER HINGE PIN CL1003 PUSHER DOOR AND HANDLE CL1018 ADJUSTEMENT SCREW FOR DOOR CL1024 LOCK NUT CL1023 TENSION SPRING CL1022 KNIFE ADJUSTINGNUT FOR DISC...
  • Page 16 Item Numéro Pièce Description Quantité MGHST6 PUSHER 6’’ MG12PAN ---- MG12CYL CYLINDER (LOOKS LIKE A ELBOW) MG12HW WORN GEAR (LIKE A SCREW) MG012KN(KNH) KNIFE (CROSS) MG12-XXX CHOPPER DISC MG12HR RING MG12PIN PIN THE AVOID THE CHOPPER DISC TO TURN MG12FW FIBER WASHER MG12STD CHOPPER FEED SCREWS STUD...
  • Page 17 FOR MORE INFORMATION, PLEASE CONTACT OUR OFFICE : DOYON EQUIPMENT INC. 1255, rue Principale Linière, QC, Canada G0M 1J0 Tel. : (418) 685-3431 Canada : 1-800-463-1636 U.S. : 1-800-463-4273 FAX : (418) 685-3948 Internet: http://www.doyon.qc.ca E-mail : doyon@doyon.qc.ca...
  • Page 18 SECTION DIMENSIONS...
  • Page 24 SECTION COMPONENT PARTS...
  • Page 25 SM200...
  • Page 26 Item Part Number Description Quantity 200001 BOLT 200002 COVER 200003 200004 BEARING COVER 200005 RETAINING TWIN BEARING 200006 TRANSMISSION COVER 200007 SPACER 200008 CLUTCH ASSEMBLY 200011 46 TEETH BEVEL GEAR 200012 29 TEETH GEAR 200013 BRASS OR METAL BUSHING 200014 2 TO 3 SPEED BUSHING 200015 METAL BUSHING...
  • Page 27 BASE 200082 PLANETARY SHAFT 200083 BARREL SWITCH 200084 ROCKER SWITCH 200085 START SWITCH (ELI555 & ELP994) 200086 STOP SWITCH (ELI555 & ELP991) 200087 BOWL LIMIT SWITCH 200088 BOWL SUPPORT GUARD SWITCH 200089 BREAKER (ELB099) Model : SM200 View : Explode...
  • Page 28 SM201...
  • Page 31 Item Part Number Description Quantity 201001 COVER 201002 BELT 255L 201003 CASTING TRANSMISSION 201004 SPEED CHANGING SHAFT 201005 SPINDLE CASE 201006 BOWL SUPPORT 201007 BASE 201008 HEX-SCREW 201009 SPEED INDICATOR 201010 PEDESTAL 201011 BELT 60 TEETH GEAR 201012 MOTOR BELT GEAR 201013 TRANSMISSION COVER 201014...
  • Page 32 Model : SM201 View:Explode...
  • Page 33 SM300...
  • Page 34 E 10...
  • Page 35 E 11...
  • Page 36 E 12...
  • Page 37 E 13 Item Part Number Description Quantity 300002 BEARING COVER 300003 3/4-16 NUT 300004 BEARING (#6204) QURB10 300007 TRANSMISSION COVER 300008 CLUTCH SPACER 300009 37 TEETH CLUTCH 300012 46 TEETH BEVEL GEAR 300013 24 TEETH GEAR 300014 BRASS BUSHING 300015 2ND AND 3RD SPEED CLUTCH 300016 MAIN SHAFT...
  • Page 38 E 14 300065 SEAL 30-52-8 (#11640) 300066 CUP DRIP 300071 BOWL GUARD 300077 LEFT SIDE BOWL HANDLE 300080 300081 MOTOR WORM GEAR 300083 BEARING (#6203) QURB09 300084 300085 MOTOR ROTOR 300086 CENTRIFUGAL SWITCH 300088 PLATE 300089 BEARING (#6203) QURB09 300090 FLANGE 300092 COVER...
  • Page 39 E 15 SM401...
  • Page 40 E 16...
  • Page 41 E 17 Item Part Number Description Quantity 401001 COVER 401002 BELT 300L 401003 TRANSMISSION CASE 401004 SEE 401029 401005 SPINDLE CASE 401006 ARCH 401007 BASE 401008 BOLT 401009 SPEED INDICATOR 401010 PEDESTAL 401011 70 TEETH GEAR BELT 401012 13 TEETH MOTOR GEAR BELT 401013 TRANSMISSION COVER 401014...
  • Page 42 E 18 SM402NA...
  • Page 43 E 19...
  • Page 44 E 20...
  • Page 45 E 21...
  • Page 46 E 22 Item Part Number Description Quantity 402N001 COVER SCREW 402N002 COVER SCREW 402N003 TRANSMISSION COVER 402N004 ON / OFF MAIN SWITCH 402N005 BOWL GUARD MICRO SWITCH 402N006 THUM SCREW 402N007 HUB ATTACHMENT 402N008 ATTACHMENT CAP 402N009 THRUST WASHER 402N010 BEVEL GEAR 35 TEETH 402N011 KNEADER...
  • Page 47 E 23 402N053 SPEED HANDLE ASSEMBLY 402N054 SPEED HANDLE ASSEMBLY 402N055 OPERATE PLATE 402N056 1 1/2 HP MOTOR 402N057 CASE TRANSMISSION 402N058 CAPACITOR 402N059 WHEEL BELT 18 TEETH 402N060 TRANSMISSION BELT 402N061 TRANSMISSION COVER 402N062 BEARING (#6204) QURB10 402N063 BEARING (#6204) QURB10 402N064 BEARING (#6206) QURB11 402N065...
  • Page 48 E 24 402N105 STOP NUT 402N106A 29 TEETH GEAR (OLD MODEL) 402N106B 30 TEETH GEAR (OLD MODEL) 402N107 13 TEETH TRANSMISSION SHAFT 402N108 C CLIP 402N109 STOP NUT 402N110 STOP NUT 402N111 402N112 402N113 SLEEVE BEARING #TA 45 35 FOR 402N007 402N114 OIL SEAL #TA 45 35 FOR 402N007 402N115...
  • Page 49 SECTION ELECTRIC SCHEMATIC...

  • Page 55: Limited Warranty

    Doyon Equipment Inc. does hereby exclude and shall not be liable to purchaser for any consequential or incidental damages including, but not limited to, damages to property, damages for loss of use, loss of time, loss of profits or income, resulting from any breach or warranty.
