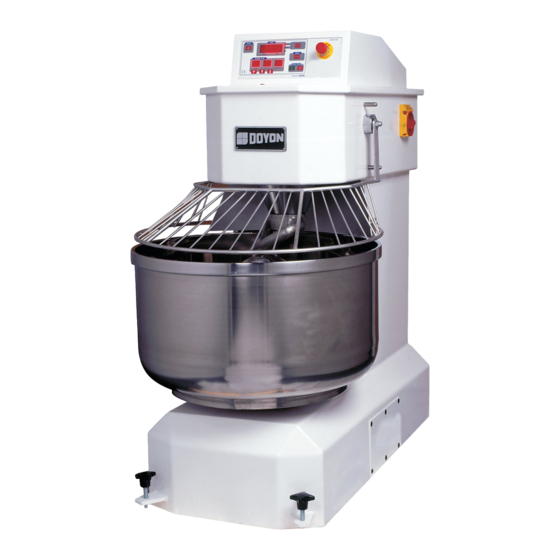

SPIRAL MIXER DOYON AEF 015/035/050/080/100/120
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
TO GET THE BEST PERFORMANCE OF YOUR MACHINE, PLEASE READ
CAREFULLY THIS MANUAL.
CHAPTER 1 - RECEPTION OF THE MERCHANDISE. . . . . . . . . . . . . . . . . . . . .
NAMEPLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 2 - GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 3 - TECHNICAL DATA
3.1. - General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2. - Technical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3. - Electrical characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4. - Damage situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5. - Electric installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6. - Security system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.7. - Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.8. - Emergency stop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 4 - SPIRAL MIXER OPERATION
4.1. - Electric information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2. - First start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3. - Work start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.4. - How to stop the spiral mixer. . . . . . . . . . . . . . . . . . . . . . . . . . 10
AEF 035/050/080/100/120
4.1. - General characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2. - Electric information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3. - Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.4. - Manual working process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.5. - Automatic working process . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6. - Programming the automatic working time . . . . . . . . . . . . . . .
4.7. - How to stop the spiral mixer . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TABLE OF CONTENTS
2
2
2
3
4
4
4
4
6
6
6
9
9
11
11
13
15
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Doyon AEF015
Summary of Contents for Doyon AEF015
-
Page 1: Table Of Contents
SPIRAL MIXER DOYON AEF 015/035/050/080/100/120 IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. TO GET THE BEST PERFORMANCE OF YOUR MACHINE, PLEASE READ CAREFULLY THIS MANUAL. CHAPTER 1 – RECEPTION OF THE MERCHANDISE..... - Page 2 AEF015.........
-
Page 3: Chapter 1 - Reception Of The Merchandise
6. Volts 7. Frequency Doyon Spiral Mixers are designed to be used by qualified people in the Bakery production. The particular shapes and speeds of the spirals and bowls allow you to have in a short period of time, very smooth dough, even when small quantities of water are used. Our spiral mixers are able to work with small quantities of flour (for instance, the mixer of 220 Lbs. -
Page 4: General Description
3.1 – GENERAL DESCRIPTION Specifications of spiral mixers: Model Inch (cm) AEF 015 38 ¾ "(98.5) AEF 035 46 ¼ "(118.5) AEF 050 51"(129.5) AEF 080 54"(137) AEF 100 54"(137) AEF 120 56"(142) AEF-A.DOC CHAPTER 3 TECHNICAL DATA Fig.1 Flour Capacity... -
Page 5: Technical Characteristics
3.2. – TECHNICAL CHARACTERISTICS • Steel body. • Independent electric motors for stainless steel spiral and bowl (except AEF015). • Belt driven transmission. • Two speeds on stainless steel spiral. • Two speeds on stainless steel bowl. • Safety guard with micro switch. - Page 6 Figure # 3 Control panel Machine structure Security bars Spiral Bottom body Stainless steel bowl Machine floor fixer Roller Side board Main switch AEF-A.DOC 02/2003...
-
Page 7: Security System
3.6 – SECURITY SYSTEM The potentially most dangerous area on these machines is the one that surrounds the moving spiral. So, there is a safety guard that obstructs the entry in this area. This safety guard is designed in a way to allow the user to watch the dough. If you lift the safety guard, the machine will activate the micro switch and stop immediately. - Page 8 AEF 035/050/080/100/120 Fig.4 Figure # 4 1. Switch on and off button 2. Display to visualise the working minutes 3. Display to visualise the working seconds 4. Light of 2 speed 5. Light of 1 speed 6. Speed selector button V1/V2 7.
- Page 9 Figure #5 1. Micro switch 2. Control panel 3. Electric motor. 4. Electric motor 5. Security bars 6. Current transformer 7. Switch 8. Contactor 9. Electric plug 10. Electric cable / cord 11. Main switch AEF-A.DOC 02/2003...
-
Page 10: Electric Information
6. When the machine is new, you should, before starting production, try it with some dough. This will remove the lubricator’s residuum, that may remain in the bowl and on tools. AEF-A.DOC CHAPTER 4 DOYON SPIRAL MIXER AEF 015 02/2003... -
Page 11: Work Start
4.3- WORK START • Turn the selector switch (1-0-2) to the desired speed, 1 • Close the safety bars (point 3, fig.3). If you lift up the bars, the machine will stop immediately. • Press the start button to start the working cycle and a light will lighten up (fig.2). •... -
Page 12: General Characteristics
DOYON SPIRAL MIXER AEF 035/050/080/100/120 4.1 – GENERAL CHARACTERISTICS Electric commands come with two modes: manual and automatic mode When in stand by, the displays shows four bars: • 50 Different Programs capacity • In each program you may adjust the time of work for the 1 •... -
Page 13: Manual Operation
9. After that, push the Start button “I” (point 15, fig.4), the machine will restart. Then press the red button “0” (point 16, fig 4) to stop the machine. If it doesn’t stop, push the emergency stop, unplug it and call a technician. When the machine is new, you should, before starting production, try it with some dough. -
Page 14: Automatic Operation
• At any time, it is possible to stop the machine by using the emergency stop (point 8, fig • The maximum working time of each speed is 60 minutes, and then the machine will stop automatically. 4.5 – AUTOMATIC OPERATION •... -
Page 15: Working Cycle
• The display (point 2 and 3, fig.4) shows the elapsed time of the active speed. Display (point 4 and 5, fig.4) shows the active speed. • It is possible to adjust the programmed time by using the buttons 11[ ]. -
Page 16: Programming The Automatic Working Time
4.5.2 – CHANGING PROGRAMMED TIME DURING WORKING CYCLE. • At any time during the working cycle, you can change the programmed time, by using the buttons 11[ ] or 12[ means that at the end of the cycle, the program will return to the original values. 4.5.3 –... -
Page 17: How To Stop The Spiral Mixer
• Edit the program by pressing the button 10 [ • Use buttons 11 [ • Press button 10 [ ] and 12 [ • To finish, press button 10 [ • The program is now memorised. • Note : When entering the data in the selected program, you will have approximately 10 seconds between each step to enter the desired settings. -
Page 18: When The Machine Is New
MAINTENANCE AND CLEANING Attention: Before doing maintenance and cleaning, switch off the machine with the main switch and unplug it, some operations might be dangerous. If you need to remove some protections, do not start working without them. 5.1. - WHEN THE MACHINE IS NEW 1. -
Page 19: Every 6 Months
5.3 – EVERY 6 MONTHS 5.3.1 – CONTROL OF BELT’S STRETCHING It is necessary to control the belts’ stretching every 6 months in all transmissions. If the belts are too loose, the machine will lose power. a) The transmission’s belts of the spiral can be examined by opening the cover of the machine. -
Page 20: Safety Instructions
6.1 – SAFETY INSTRUCTIONS • The machine must be used only for the functions that it has been conceived for. Doyon Equipment will not be responsible for the damages caused by an improper, bad or irrational use of the machine. -
Page 21: Electric Hazards
3. ELECTRIC HAZARDS The electric installation follows the Canadian, American and European security rules. Nevertheless, respect the basic security rules in a way to avoid the risk of fire, electric shocks, personal and material damages. Only qualified people may access the parts that have electric current, which are obliged to: Stop the machine Turn off the main switch Unplug the machine... -
Page 22: Aef015
AEF-A.DOC 02/2003... -
Page 23: Aef 035/050/080/100/120
AEF-A.DOC 02/2003... -
Page 24: Limited Warranty
The purchaser is responsible for having the equipment properly installed, operated under normal conditions with proper supervision and to perform periodic preventive maintenance. If any parts are proven defective during the period of one year from date of purchase, Doyon Equipment Inc. hereby guarantees to replace, without charge, F.O.B. Linière, Quebec, Canada, such part or parts.
