Kramer SPK-CC688 Specifications

SPK-CC688
Two−way Ceiling Speakers with 8−Inch Metal Back Can & Transformer (8Ω)
FEATURES
Type - 2−way ceiling speaker with metal closed back can and transformer.
Woofer - 6.5" polypropylene cone woofer.
Tweeter - 1" silk dome tweeter.
- 8Ω.
Impedance
Metal Back Can - 8" deep.
- 8Ω direct, 70V, 100V.
Transformer
Power Selector - Five−position tab selector behind the grille.
Frequency Response - 20Hz to 20kHz.
Sensitivity - (SPL) 89dB (1W @1m with 1kHz).
Recommended Power - RMS 50W, 100W max.
Grille - Aluminum grilles with UV treatment compliance.
Dimensions - External diameter: 25cm (9.8in); mounting depth: 24.4cm (9.6in); cutout diameter: 22.1cm (8.7in).
Package - 2 speakers (1 pair), ceiling mounting kit (C−ring & V−rail kit), template and user manual.
Weight Per Single Speaker
Shipping Weight (Pair) - 9.7kg (21.4lbs) approx.
- 3.4kg (7.1lbs) approx.

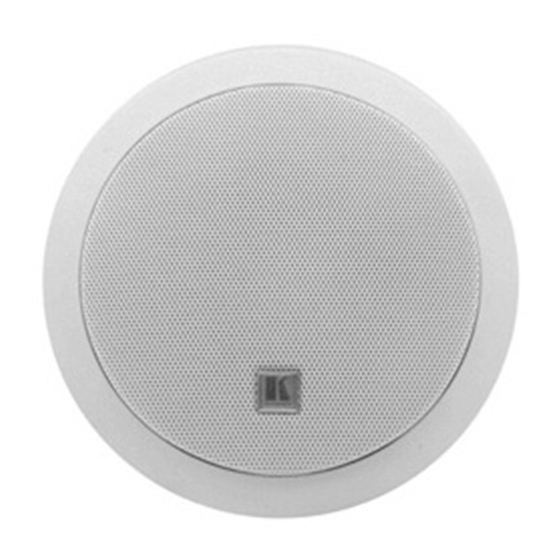

The SPK−CC688 are two−way speakers
designed for mounting in the ceiling. They
have a closed back design with a 8−inch
metal can and aluminum grilles. The
dual−driver coaxial speakers are designed
with transformer and behind−the−grille
power selector switch with either direct 8Ω or
70/100V room balancing.
