Summary of Contents for Kramer SPK-C611
- Page 1 !" # # $ # # !# % & !
- Page 2 This page is intentionally left blank...
-
Page 3: Table Of Contents
Installing the Open Back Ceiling Speakers Painting the Speaker Technical Specifications Figures Figure 1: Open-back Ceiling Speakers in a Boardroom Setup Figure 2: SPK-C611 Open-back Ceiling Speakers Figure 3: Position Mounting Tab Figure 4: Installing the Open-back Ceiling Speakers SPK-C611 – Contents... - Page 4 This page is intentionally left blank...
-
Page 5: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 6: Getting Started
Achieving the Best Performance To achieve the best performance: • Use only good quality connection cables (such as the Kramer BC-2S) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) •... -
Page 7: Overview
Overview The SPK-C611 speakers include a pair of high performance Open-back Ceiling speakers that can be mounted on the ceiling. The optional Kramer Suspended Ceiling Speaker Mounting Kit (SKIC) can safely secure the speakers to the ceiling as well. Figure 1... -
Page 8: Your Spk-C611

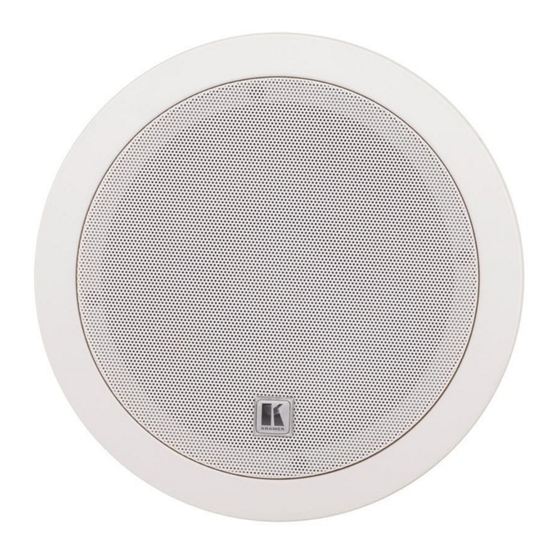

Your SPK-C611 Figure 2 defines the SPK-C611: Figure 2: SPK-C611 Open-back Ceiling Speakers The speaker black and red stereo sockets connect to the black and red sockets of the amplifier. SPK-C611 - Your SPK-C611... - Page 9 C-ring alone is used to reinforce the ceiling material. Be sure that the tiles can support the speaker. Smaller sized tiles or fiberglass-type tiles cannot support the weight of the speakers. When this is the case, the speakers will need additional support. SPK-C611 - Your SPK-C611...
-
Page 10: Installing The Open-Back Ceiling Speakers
4. Route the wiring from the amplifier to the speakers’ cutout holes, taking care not to place them next to electrical wires or at least at a distance of about two feet from an AC line. SPK-C611 - Installing the Open-back Ceiling Speakers... -
Page 11: Installing The Open Back Ceiling Speakers
2. Position the mounting tabs (see Figure 3) inward. Figure 3: Position Mounting Tab 3. Insert the supplied screws into the screw openings from the front of the speakers. SPK-C611 - Installing the Open-back Ceiling Speakers... -
Page 12: Figure 4: Installing The Open-Back Ceiling Speakers
Align the rails so that the ends extend over the T-channel grid. 3. Insert a screw through each tab on the C-ring to secure the rails. 4. Connect the speaker wires to the speaker terminals. SPK-C611 - Installing the Open-back Ceiling Speakers... -
Page 13: Painting The Speaker
When painting after installation: • Use the circle that you cut out of the template as a paint mask • After you finish painting, remove the paint mask SPK-C611 - Installing the Open-back Ceiling Speakers... -
Page 14: Technical Specifications
3.7kg (8.16lbs) approx. DIMENSIONS (OD): 23cm (9.06") CUT OUT SIZE (MOUNT 19.5cm (7.68") DIMENSION): MOUNT DEPTH: 7cm (2.76") ACCESSORIES: Ceiling mounting kit Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com SPK-C611 - Technical Specifications... - Page 16 " " 2900- 300204 P/N: Rev:...
