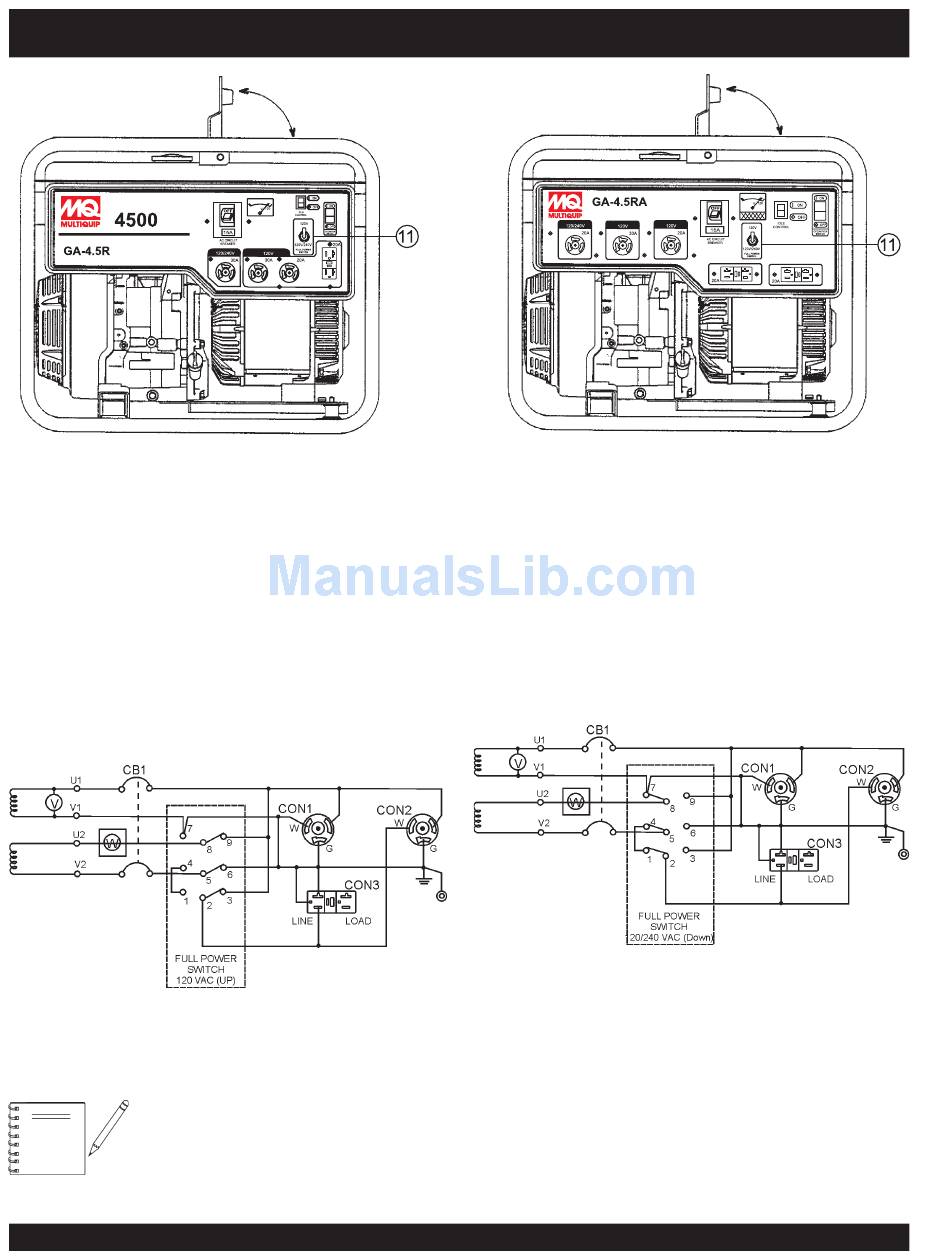

11. Full Power Switch – The generators are provided with a
full power switch. Figures 2C and 2D show simplified wiring
diagrams of the dual voltage system.
When the full power switch is in the 120 volt (up) position,
you can access the full rated power of the generators at
120 volts from the GFCI duplex receptacle and the120V
twist-lock receptacle, or a combination of both receptacles
as long as the total load does not exceed the generating
set capacity.
Figure 2C. Full Power Switch 120VAC (Up)
Simplified Wiring Diagram
When the full power switch is in the
120V position, the 240V twist-lock
NOTE
receptacle cannot be used .
PAGE 16 — GA-4.5R/GA-4.5RA A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #1 (11/27/06)
GA-4.5R/GA-4.5RA — CONTROLS AND INDICATORS
Figure 2B. Generator Controls and Components (continued)
When the switch is in the 240 volt (down) position, you can
acess half of the rated power of the generating set at 120
volts from the GFCI duplex receptacle and up to half of the
rated power of the set at 120 volts from 120V twist-lock
receptacle; or full rated power of the set at 240 volts from
the 240V twist-lock receptacle.
Figure 2D. Full Power Switch 120/240 VAC (Down)
Simplified Wiring Diagram
