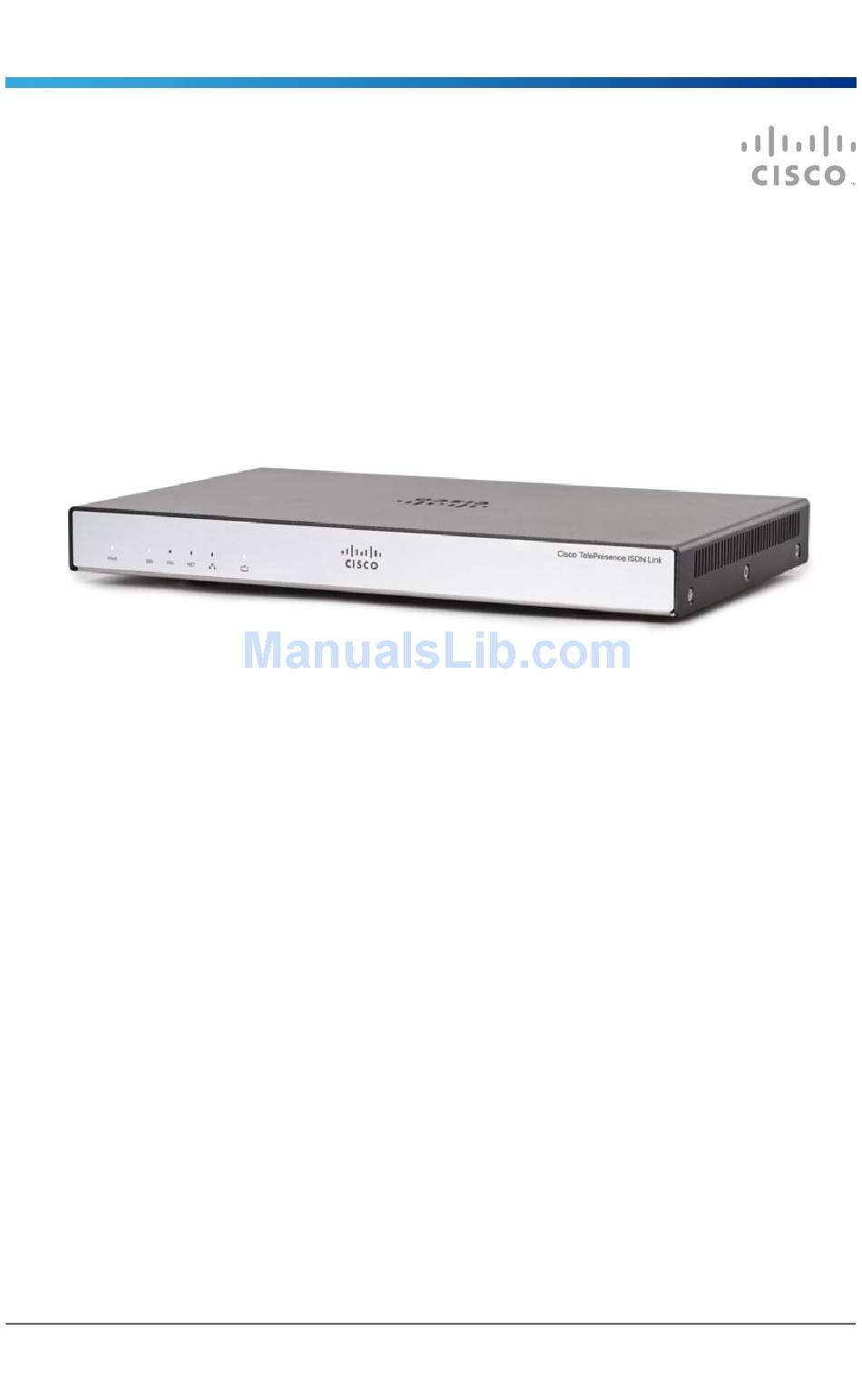

- Page 1 Cisco TelePresence ISDN Link Installation guide Package contents: • ISDN Link • Power Adapter • LAN Cable • Foot bumpers • Installation Guide 78-20749-02 | JANUARY 2013. Copyright © 2013 Cisco Systems, Inc. All rights reserved.
-
Page 2: Front Panel
The LED lights up and remains lit when the ISDN Link is powered up. When the ISDN Link is not configured correctly this LED will be red. This will typically happen when you power up the unit for the first time. -
Page 3: Rear Panel
Connect to a PC/laptop for configuration. Use: 115200 bps, 8 data bits, 1 stop bit, no parity. Power External power adapter with 12 V/1.25 A DC output supports 100/240 VAC and 50/60 Hz inputs. 78-20749-02 JANUARY 2013 Page 3 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved. -
Page 4: Installation
Select one of the three options for the For system configuration, connect a ISDN line connection: Category 5e Ethernet cable between the Ethernet port on the ISDN Link and the Connect the ISDN cable(s) between LAN network. the ISDN BRI port(s) and the ISDN... - Page 5 Installation guide Automatic pairing mode Pairing is a process in which the ISDN Link and endpoint communicate with each other in order to establish a connection. The ISDN Link is shipped with pairing mode set to Auto, which enables the ISDN Link to be discovered by an endpoint. When pairing is completed the ISDN Link is dedicated to the endpoint it has been paired with.
- Page 6 Cisco TelePresence ISDN Link Installation guide Configuring the ISDN Link Navigate to Configuration > Peripherals > Manage ISDN Link > ISDN Link Configuration. Click ISDN Link Configuration to open the configuration menu. 78-20749-02 JANUARY 2013 Page 6 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved.
- Page 7 ISDN status information to confirm there are no errors before proceeding. If any errors, or if the power LED is red, please check your configuration. 78-20749-02 JANUARY 2013 Page 7 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved.
- Page 8 You can skip this page if you already have configured the ISDN Link. On this page you can see a few more configuration examples for the ISDN Link. The ISDN Link is configured from the TelePresence system’s web interface. Navigate to Configuration >...
- Page 9 Installation guide Configuring the endpoint for ISDN (H320) When paired to ISDN Link, the default call setttings for the TelePresence endpoint can be configured for ISDN (H320), or you can set the call protocol and call rate each time you make a call.
- Page 10 Audio Only. Tap the green Call button to make the call. Connecting the call may take up to 30 seconds. 78-20749-02 JANUARY 2013 Page 10 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved.
- Page 11 (call) Connecting the call may take up to 30 seconds. A message will show on screen while the call is connecting. 78-20749-02 JANUARY 2013 Page 11 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved.
- Page 12 You can skip this page if using the ISDN Link in automatic pairing mode. Manual pairing mode of the ISDN Link is managed from a command line interface. Connect to the ISDN Link through the serial port (COM) or through SSH over the network.
-
Page 13: Wall Mounting
Bottom view of the unit. Connectors facing down. Table stand Mount the the four foot bumpers on its feets if you would like to place the ISDN Link on a table. 78-20749-02 JANUARY 2013 Page 13 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved. -
Page 14: Safety Information
Cisco TelePresence product ISDN Link documentation For more information about configuring and using your Cisco TelePresence ISDN Link, see the user documentation that is available on our web site: http://www.cisco.com/go/isdnlink-docs Safety Information Before connecting the power supply, read the Regulatory Compliance and Safety Information (RCSI) document that is available on our web site: http://www.cisco.com/en/US/docs/telepresence/endpoint/isdn-link/... -
Page 15: China Rohs Hazardous Substance Table
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 78-20749-02 JANUARY 2013 Page 15 of 16 Copyright © 2013 Cisco Systems, Inc. All rights reserved. - Page 16 Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registred trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the Unites States and certain other countries. All other trademarks mentioned in this document or web site are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.
