120 portable charger 7a/12a, 120vac, 60hz

Advertisement

Quick Links

WARNINGS AND CAUTIONS:

Carefully read these instructions and the charging instructions in your vehicle owner's manual before charging your electric vehicle. Failure to do so can
result in death, injury or property damage.
The Portable Charger is a high powered electrical device. The AC Supply plug must fit securely into a grounded AC outlet that is in good condition.
Failure to heed these warnings can cause death, injury or property damage.
– DO NOT use the Portable Charger with a damaged AC outlet.
– DO NOT use an extension cord to provide power to the Portable Charger.
– DO NOT operate the Portable Charger with a visibly damaged AC Supply Plug or Charge Cord/Connector. Inspect equipment before each use.
If any damage is detected, contact a Technical Service Representative.
NOTE FROM THE MANUFACTURER
This user guide includes the latest information at the time of printing.
Leviton reserves the right to make changes to this product without further
notice. Changes or modifications to this product by other than an authorized
service provider could void the product warranty. If you have questions about
the use of this product, contact your Customer Service Representative
(refer to the Customer Support section located in these instructions) or visit
www.leviton.com/evrgreen.

ELECTRIC VEHICLE COMPATIBILITY

Leviton's Level 1 120 Portable Charger is listed by Underwriters Laboratories
(UL) under Electric Vehicle Supply Equipment (EVSE).The compact physical
design of your Portable Charger takes up a minimum amount of wall space,
providing the greatest flexibility for mounting locations or portable storage.
This device incorporates multiple levels of safety for the user, the vehicle
and the charging equipment. It conforms to all industry standards and
recommended practices.
The Portable Charger requires a 15A or 20A, 120VAC circuit via three-
pronged wall outlet.
For maximum performance, it is strongly recommended that you use a
dedicated circuit for the Portable Charger. This means there should be no
other major appliances connected to the same circuit. If it is not a dedicated
circuit, the current rating of the outlet circuit breaker could be exceeded and
cause it to trip or open. For non-dedicated circuits, the Portable Charger can
be used in the default reduced level mode, but the charging time is increased.

FEATURES

SAE J1772
TM
Compliant - Ensures compatibility with all battery electric
vehicles (BEV) or plug-in hybrid electric vehicles (PHEV) conforming to
this standard.
Easy to read user interface.
Self-Testing Sequence - Upon plugging in the Portable Charger, a self-
test will occur to ensure that the unit is working properly. This sequence
will also occur each time the Charge Connector is plugged into the vehicle
charge port to ensure a proper connection; prior to initiating charging.
Default 7 Amp Charging - Charging will always initiate at 7 amps,
minimizing risk of overloading a non-dedicated circuit.
12 Amp "Accelerated" Charging - User selectable increased charge
rate available when plugged into a circuit dedicated for use with one
device.
Ground Monitoring Circuit - Constantly checking for presence of proper
safety ground.
Contactor Monitoring Circuit - Constantly checking the integrity of AC
charging path.
Auto-Restart - In the event of power outage or temporary fault condition,
allows charging to resume without intervention.
NEMA Type 4 Enclosure - Protects against exposure to weather.
Portable Unit - Easy to transport for charging anywhere.
Compact Design - Convenient cord-stowage and carry handle.
Excessive Cable Strain Detection - On detection of excessive pressure
on Charge Cord the Portable Charger issues a warning and de-energizes
the Charge Cord.
UL listed.

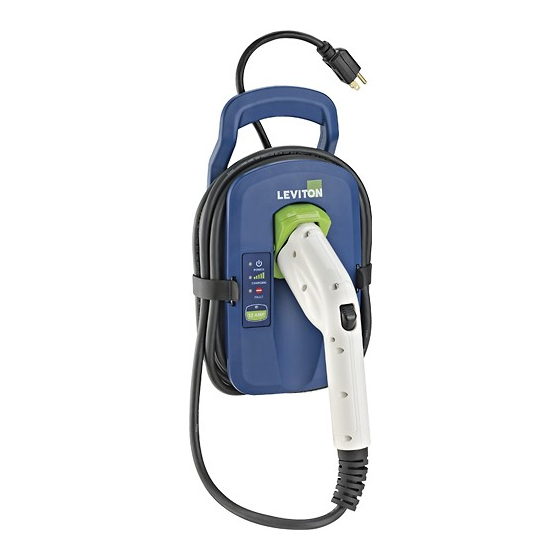

Level 1 - 120 Portable Charger
Cat. No. EVC11-300 - 7A/12A @ 120VAC, 60Hz

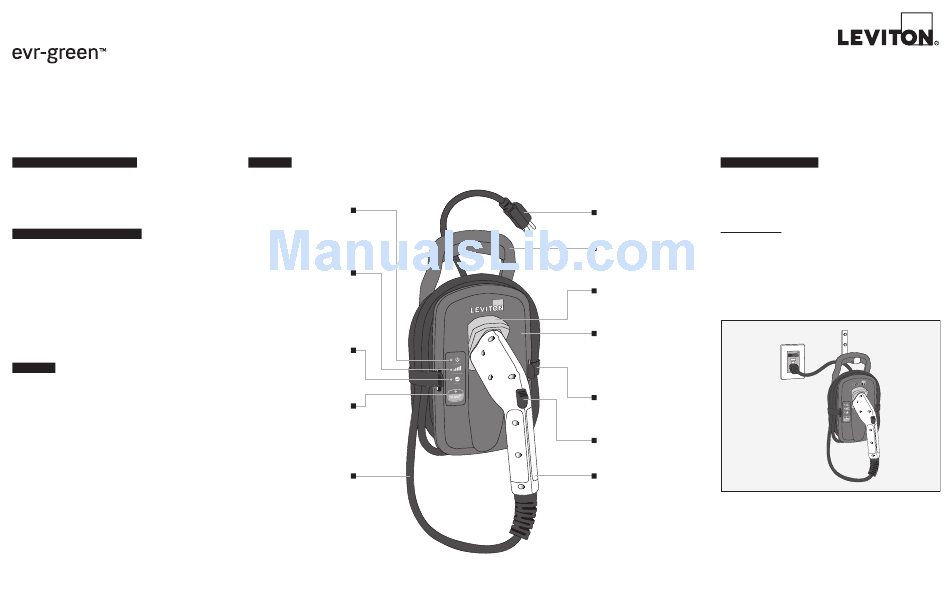

OVERVIEW

Power LED (Green)

The Power LED illuminates when
power is present. This notifies the
user that the Portable Charger is
active and ready to charge the
electric vehicle.

Charging LED (Amber)

The Charging LED illuminates
when the Charge Connector
is connected to the electric
vehicle and charging is in
progress. NOTE: The Charging
LED turns off momentarily
during the self-test.

Fault LED (Red)

The Fault LED flashes when a
fault is present. During a fault
condition the Charging LED
turns off.
12 Amp LED (Green)
When selecting 12A (1.5kW)
charging mode, the 12 Amp
LED illuminates. If 12 Amp LED
is not illuminated, charging
rate is restricted to a default
maximum of 7A (.84kW).
Charge Connector Cord
18 foot long UL recognized
Type EV cable suitable for
charging electric vehicles.
User Guide
WARNINGS AND CAUTIONS:
Ensure that the Charge Cord is positioned so it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Always stow the Portable
Charger in a safe place after each use.
Use this Portable Charger to charge electric vehicles equipped with an SAE J1772™ compliant charge port ONLY. Refer to the vehicle owner's manual to
determine if the vehicle is equipped with an SAE J1772™ compliant charge port.
DO NOT attempt to repair or service the Portable Charger yourself. Refer to the Customer Support section for service information.
Retain this guide for future reference.
AC Supply Plug
UL Recognized cord with a
NEMA 5-15P configuration plug.
Carry Handle
Convenient handle for easy
transport and hanging while in use
or storage.

Charge Connector Dock

For convenient storage of Charge
Connector when the Portable
Charger is not in use.
Enclosure
Durable, weatherproof enclosure is
constructed of an environmentally
responsible material that features
up to an 85% lower carbon
footprint than other thermoplastic
materials.
Cord Management
Cord straps secure Charge
Cord to enclosure for convenient
storage and transport.

Charge Connector Release Button

Used to disconnect from dock or
vehicle charge port.

Charge Connector

J1772
TM
compliant Charge
Connector delivers power to vehicle
for charging.
DI-000-EVC11-00A-X4
Using the Level 1 - 120 Portable Charger to charge your electric vehicle is as
simple as plugging in any appliance.
1. Connect the Portable Charger to an Electrical Outlet:
The Portable Charger can be plugged into any grounded 15A or 20A,
120VAC electrical outlet. The Power LED will illuminate whenever
electricity is flowing to the Portable Charger.

Power Up Sequence

Both the Charging and Fault LEDs will illuminate momentarily and then
turn OFF. The Portable Charger will initiate a self-test sequence.
The Fault LED will illuminate momentarily indicating the self-test is in
progress. When the Fault LED turns off and only the Power LED is on, the
Portable Charger is ready for use.
NOTE: DO NOT let the Portable Charger hang from the AC Supply
Plug. Hanging the Portable Charger on a suitable hook is recommended
where applicable (see figure below). Ensure that the Portable Charger is
supported while in use to avoid strain on the AC Supply Plug and Cord.
J1772 is a trademark of SAE International
