Evr-Green DC
Electric Vehicle Charging Station for Public Use
CAT. NO: CPDCF
DC Universal
Concrete Mount Template
Express 250
DC Fast Charging Station
Symbols Used in This Document ............................... 3
Bring Tools and Materials ........................................... 4
Conduit and Anchor Bolt Locations .......................... 4
Upgrade Paths Between Stations.............................. 9
Assemble the DC Universal CMT...............................10
Install the DC Universal CMT ......................................11
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evr-Green DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leviton Evr-Green DC

  • Page 1: Table Of Contents

    ® Evr-Green DC Electric Vehicle Charging Station for Public Use CAT. NO: CPDCF DC Universal Concrete Mount Template Symbols Used in This Document ....... 3 Bring Tools and Materials ........... 4 Conduit and Anchor Bolt Locations ......4 Upgrade Paths Between Stations......9 Express 250 Assemble the DC Universal CMT.......10...
  • Page 2 ChargePoint Charging Stations IMPORTANT SAFETY INSTRUCTIONS: SAVE THESE INSTRUCTIONS WARNING: 1. Read and follow all warnings and instructions before installing and operating the ChargePoint® Charging Station. Install and operate only as instructed. Failure to do so may lead to death, injury, or property damage, and will void the Limited Warranty.
  • Page 3: Symbols Used In This Document

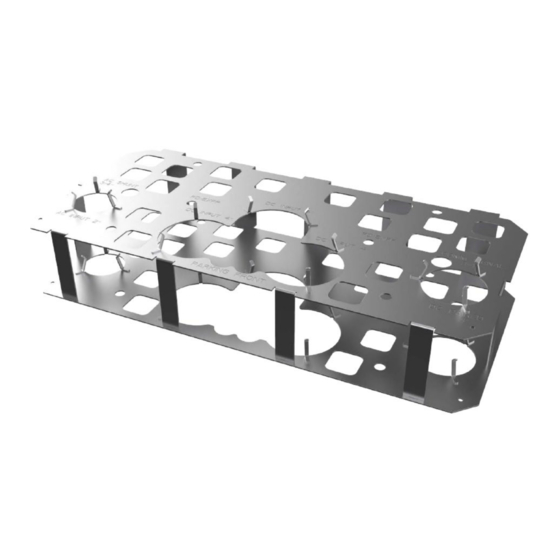

    DC Universal Symbols Used in This Document This guide and product use the following symbols: Risk of electric shock. DANGER: Risk of personal harm or death. WARNING: Risk of equipment or property damage. CAUTION: Crucial step for installation success. Important: Introduction The ChargePoint DC Universal CMT is a Concrete Mounting Template (CMT) that supports three different ChargePoint DC fast charging stations for electric vehicles:...
  • Page 4: Bring Tools And Materials

    ChargePoint Charging Stations The DC Universal CMT kit, available from ChargePoint, includes: • CMT metal template • 16 mm thread, 305 mm long threaded mounting bolts with plastic caps on one end (x4) • M16 nuts (x8) • M16 washers (x8) An example cross section of the CMT in a concrete pad is shown below: Various conduit (location varies by...
  • Page 5 DC Universal Express 250, Standalone Each Express 250 station requires AC power input from the site’s electrical panel (callout a in the image below). A ground conductor also runs in the AC conduit (a). Optional shunt trip wiring can be run from the station to the breaker panel if included on the site drawings (b).
  • Page 6 ChargePoint Charging Stations Express 250, Paired If two Express 250 stations are “paired”, they share DC power to allow faster (higher amperage) charging to a vehicle as needed. In addition to the wiring and anchor bolts shown in the Standalone section above, two extra conduits are run between the stations: an Ethernet wire for communication (d), and DC conductors (e).
  • Page 7 DC Universal DC Dispenser The DC Dispenser receives DC input from an upstream component called a Power Block that centralizes AC to DC power conversion for multiple stations. DC Dispenser anchor bolts are positioned at the center and the front edge of the CMT (c). DC input from a Power Block to the middle of each station: maximum 102 mm (4 inch trade size) (x2) 48 VDC or Ethernet from a Power Block to the front edge of each station: maximum 25 mm (1 inch trade size) (up to 3 conduits)
  • Page 8 ChargePoint Charging Stations Express Plus Station The Express Plus stations receive DC input from an upstream component called a Power Block that centralizes AC to DC power conversion for multiple stations. Express Plus Station anchor bolts are positioned at the center and the front edge of the CMT (c). DC input from a Power Block to the middle of each station: maximum 102 mm (4 inch trade size) (up to 3) 48 VDC or Ethernet from a Power Block to the front edge of each station: maximum 25 mm (1 inch...
  • Page 9: Upgrade Paths Between Stations

    DC Universal Upgrade Paths Between Stations The DC Universal CMT supports future upgrades from an Express 250 to a DC Dispenser, a DC Dispenser to an Express Plus Station, or an Express 250 to an Express Plus Station. For any station that is intended to be removed and replaced by a future ChargePoint station: Install anchor bolts in the CMT in the correct position for the current station only.
  • Page 10: Assemble The Dc Universal Cmt

    ChargePoint Charging Stations Assemble the DC Universal CMT The CMT has sharp edges. Wear cut-resistant gloves. CAUTION: Before pouring concrete, assemble the CMT with its anchor bolts, washers, and nuts. Refer to the diagrams above for the correct anchor bolt locations per station. Holding a mounting bolt by its plastic cap, insert the bare end into a corner bolt hole in the top plate of the template.
  • Page 11: Install The Dc Universal Cmt

    DC Universal Install the DC Universal CMT Failure to install the ChargePoint® charging station in accordance with these WARNING: instructions and all local building practices, climate conditions, safety standards, and all applicable codes and ordinances may lead to risk of death, injury, or property damage, and will void the Limited One-Year Parts Exchange Warranty.
  • Page 12 Visit our Website at: Leviton Manufacturing Co., Inc. 201 N Service Rd, Melville, NY 11747 www.leviton.com/evrgreen Telephone: 1-800-323-8920 • FAX: 1-800-832-9538 email: commercial@leviton.com Tech Line: 1-800-824-3005 (M-F 8AM-10PM; Sat 9AM-7PM; Sun 9AM-5PM) Q-1450-CONCRETE-MOUNT © 2022 Leviton Manufacturing Co., Inc. All rights reserved. 052422...
