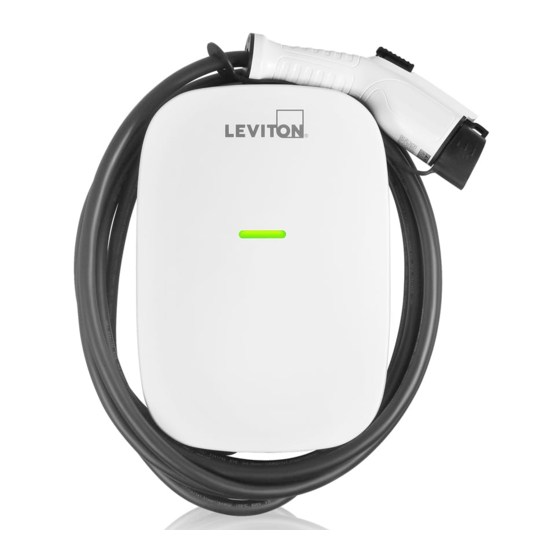

- Page 1 Electric Vehicle Charging Station Installation Manual Cat. Nos. EV48G, EV48S, EV80G, and EV80S 48A / 80A EVSE No LCD Screen 48A / 80A EVSE with LCD Screen (EV48G and EV80G) (EV48S and EV80S) PK-A3487-10-00-5A...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Warnings and Cautions ........................4 Safety Standards and Specifications ..................5 3 Tools Needed ..........................6 Basic Interface ..........................7 Dimensions ............................8 Indication Light Statuses ......................9 Installation ............................ 10 7.1 Wiring ............................10 7.2 Wall-Mounted Bracket Installation ..................11 Operating Procedures ......................... 12 Error and Warning Messages ...................... -
Page 4: Warnings And Cautions
• Connect only to a circuit providing branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 (United States), the Canadian Electrical Code, Part I, C22.1. Canada), or NOM-001-SEDE (Mexico). Model Circuit Breaker/Fuse Rating EV48G, EV48S EV80G, EV80S 100A CAUTIONS: • No user serviceable parts inside. -
Page 5: Safety Standards And Specifications
Installation Type Wall mount or pedestal mount Altitude < 2,000 m EV48G and EV48S: 6.5 ± 0.5 kg Weight EV80G and EV80S: 7.5 ± 0.5 kg EV48G and EV80G: 14.2 in. x 9.8 in. x 3.4 in. (360.50 mm x 249.94 mm x 86.94 mm) -
Page 6: Tools Needed
3 TOOLS NEEDED Tools Required before You Install Product Name Quantity the Wall-Mounted Charger: • Wire stripper AC Charger (With Charging Cable) • Phillips screwdriver • Adjustable Wrench User Manual • Voltmeter or digital multimeter (for measuring AC voltage at the installation site) Wall Mounted Bracket •... -
Page 7: Basic Interface
4 BASIC INTERFACE EV48G EV48S EV80G EV80S LCD Screen LED Light Indication LED Light Indication RFID Card RFID Card Reader Reader Rear Notch SAE J1772 AC Charging Connector Charging Cable Inlet AC Power Inlet LAN Cable Inlet... -
Page 8: Dimensions
5 DIMENSIONS EV48G and EV80G Charger Dimensions 3.4 in. (8.7 cm) 9.8 in. Mounting Bracket (24.9 cm) 2.83 in. (7.2 cm) 14.2 in. Ø 0.35 in. (36.1 cm) (0.89 cm) 4.8 in. (12.2 cm) EV48S and EV80S Charger Dimensions 3.9 in. -
Page 9: Indication Light Statuses
6 INDICATION LIGHT STATUSES Charger Indication Light Status Standby - BLUE light BLUE Light The Ready light stays steady in standby mode. Waiting for Charge - GREEN light GREEN Light After the vehicle connector is connected to the vehicle inlet, the Charge light remains lit. Charging - GREEN light flashes GREEN Light The Charge light flashes while charging. -
Page 10: Installation
7 INSTALLATION Wiring 240V Single-Phase 208V 3-Phase, Wye-Connected CAUTION: The two phases used must CAUTION: The 208V feed is from a Y-connection each measure 120V to GROUND (GND). power grid, and the AC charger can connect to Earth-ground must be connected to the L1 and L2, L2 and L3, and L1 and L3. -
Page 11: Wall-Mounted Bracket Installation
7 INSTALLATION 7.2 Wall-Mounted Bracket Installation 1. Mark the four places on the wall for the four screw holes for the bracket. Drill the screw holes with the following dimensions: Diameter 0.33 in. (8.5 mm) and Depth: 2.05 in. (52 mm). 2. -
Page 12: Operating Procedures
8 OPERATING PROCEDURES Overview • User authorization, if required. • Connect to vehicle charging inlet. • Charging messages. • Charging complete. Operating Procedures 1. Standby - BLUE light - If you are using the EV48S or EV80S READY model, you may need to enter user credentials. 2. -
Page 13: Error And Warning Messages
9 ERRORS AND WARNING MESSAGES BLUE GREEN Error RED LED Message 1 flash, followed Input OVP Auto-Recover by 3 second pause 2 flashes, followed Input UVP Auto-Recover by 3 second pause 3 flashes, followed Output OCP Auto-Recover by 3 second pause 4 flashes, followed Auto-Recover by 3 second pause... -
Page 14: Daily Maintenance
10 DAILY MAINTENANCE WARNING: Avoid moisture or water in the charger. If there is water or moisture, immediately power OFF the charger, and notify professional personnel to perform maintenance before its next use. CAUTIONS: • If possible, keep the charger clean and in a clean area with low humidity. Do not install it in an environment that is near the sea, or with high-oil, high-humidity, or high-dust. -
Page 15: Standard Statements And Warranty
FOR MODELS 48S AND 80S LIMITED 3 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for three years from the purchase date.
