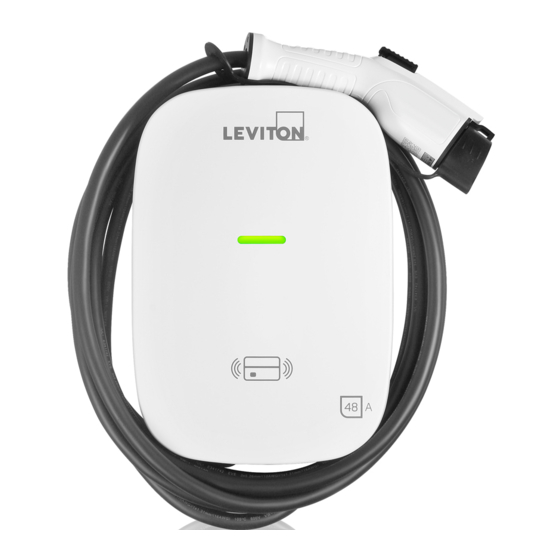

evr-green
®
Electric Vehicle Charging Station
Installation Manual
Cat. Nos. EV320, EV32W, EV480, EV48W, EV48S
32A / 48A EVSE
PK-A3429-10-00-5B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evr-green EV480 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leviton evr-green EV480

  • Page 1 evr-green ® Electric Vehicle Charging Station Installation Manual Cat. Nos. EV320, EV32W, EV480, EV48W, EV48S 32A / 48A EVSE PK-A3429-10-00-5B...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warnings ............................4 Safety and Specifications ......................5 Tools Needed ..........................6 Basic Interface ..........................7 Dimensions ............................8 Status Light Key ..........................9 6.1 Status Description of the Charger Indication Light ..............9 Installation ............................10 7.1 Wiring ............................10 7.2 Wall-Mounted Bracket Installation ..................11 Operating Instructions ........................12 8.1 Operating Procedures ......................12 8.2 Operating Steps ........................12...
  • Page 4: Warnings

    1 WARNINGS Safety Instructions WARNING: TO AVOID FIRE, SHOCK OR DEATH, TURN OFF POWER at the circuit breaker or fuse, and test that the power is off before wiring! Do not remove circuit protective devices or any other component until power is turned off. WARNING: TO AVOID FIRE, SHOCK, SERIOUS INJURY, DEATH, OR DAMAGE TO THE CHARGER, carefully read the charging instructions in your vehicle’s manual before charging and heed the following warnings:...
  • Page 5: Safety And Specifications

    2 SAFETY AND SPECIFICATIONS Design Safety Standards UL2594: Electric Vehicle Supply Equipment UL 2231-1: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: General Requirements UL 2231-2: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: Particular Requirements for Protection Devices for Use in Charging Systems UL 2251: Plugs, Receptacles and Couplers for Electric Vehicles UL 62: Flexible Cords and Cables UL 991: Tests for Safety-Related Controls Employing Solid-State Devices...
  • Page 6: Tools Needed

    3 TOOLS NEEDED Tools required before installing Product Name Quantity the Wall-Mounted charger: • Wire stripper AC Charger (With Charging Cable) • Phillips screwdriver • Adjustable Wrench User Manual • Voltmeter or digital multimeter (for measuring AC voltage at the installation site) Wall Mounted Bracket •...
  • Page 7: Basic Interface

    4 BASIC INTERFACE EV48S LED Light Indication SAE J1772 AC Charging Connector Rear Notch Charging Cable Inlet AC Power Inlet LAN Cable Inlet EV320 EV32W EV480 EV48W...
  • Page 8: Dimensions

    5 DIMENSIONS Main Size of Charger - EV48S Mounting Bracket 9.8 in. 5.1 in. 2.83 in. Ø 0.35 in. 13.8 in. 4.8 in. Main Size of Charger - EV320, EV32W, EV480, and EV48W 3.4 in. Mounting Bracket 9.8 in. 2.83 in. 14.2 in.
  • Page 9: Status Light Key

    6 STATUS LIGHT KEY 6.1 Status Description of the Charger Indication Light Status of Charger Indication Light Standby - Blue Light The READY light stays steady in READY standby mode. Waiting for Charge - Green Light After the vehicle connector is CHARGE connected to the vehicle inlet, the CHARGE light is constantly lit.
  • Page 10: Installation

    7 INSTALLATION 7.1 Wiring 240V Single Phase - 208V 3-Phase, Wye-Connected - WARNING: The two phases used must WARNING: The 208V feed is from a each measure 120V to Ground. Earth y-connection power grid, and the AC charger ground must be connected to neutral at can connect to L1 and L2, L2 and L3, L1 and only one point, usually at the breaker panel.
  • Page 11: Wall-Mounted Bracket Installation

    7 INSTALLATION 7.2 Wall-Mounted Bracket Installation • Set the positions of the four (4) screw holes and drill them, with a diameter of .33 in. (8.5 mm) and a depth of 2.05 in. (52 mm). • Use 4 sets expansion screw and M6 screw to fix the wall-mounted bracket on the wall. •...
  • Page 12: Operating Instructions

    8 OPERATING INSTRUCTIONS 8.1 Operating Procedures • User authorization • Connect to Vehicle Charging Inlet • Charging Message • Charging completed NOTE: Device may need to be activated or de-activate with RFID cards. EV320 will be shipped with RFID inactive. EV32W, EV480, EV48W and EV48S will be shipped standard with RFID active. NOTE: RFID access control is disabled by default on all units.
  • Page 13: To Restrict User Activation Via Rfid Card

    8 OPERATING INSTRUCTIONS 8.3 To Restrict User Activation via RFID Card Activation and Usage NOTE: Activation of RFID access control is ONLY required when access to charging will be restricted only for RFID card holders. If no restriction is required (open charging) this step is NOT required. 1.
  • Page 14 8 OPERATING INSTRUCTIONS 8.3 To Restrict User Activation via RFID Card (Continued) 3. To enable charging with RFID card(s) • Charging can be enabled with your standard RFID cards Enable charging. TAP your RFID card to the front of the charger over the image of the RFID.
  • Page 15: Error And Warning Messages

    9 ERROR AND WARNING MESSAGES Status Blue Green Remark 1 flash followed Input OVP Auto Recover by 3 sec pause 2 flashes followed Input UVP Auto Recover by 3 sec pause 3 flashes followed Output OCP Auto Recover by 3 sec pause 4 flashes followed Auto Recover by 3 sec pause...
  • Page 16: Maintenance And Repair

    10 MAINTENANCE AND REPAIR 10.1 Daily Maintenance WARNINGS • Avoid moisture or water in the charger. If there is water or moisture, it is necessary to immediately power off to avoid immediate danger, and notify professional personnel to carry out maintenance before next use.
  • Page 17: Fcc And Warranty

    LIMITED WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option.
