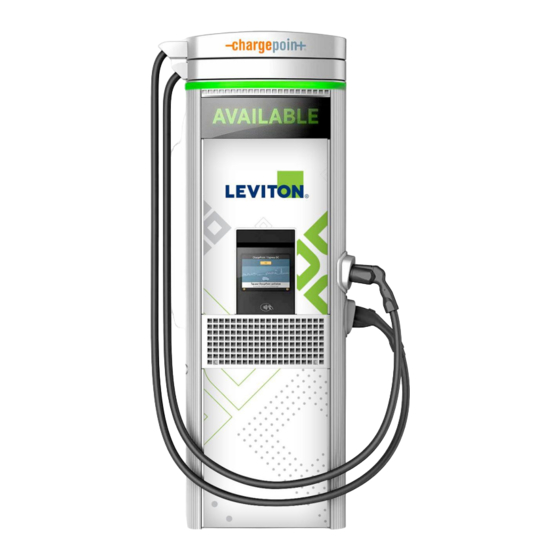

- Page 1 ® Evr-Green DC Electric Vehicle Charging Station for Public Use CAT. NO: CPDCF Operation and Maintenance Guide Express 250 DC Fast Charging Station...
- Page 2 SAVE THESE IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions that must be followed during installation of a ChargePoint® Charging Station. Grounding Instructions The ChargePoint® Charging Station must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor is to be run with circuit conductors and connected to the equipment grounding terminal or lead on the Electric Vehicle Supply Equipment (EVSE).
-
Page 3: Table Of Contents
Contents Express 250 Basic Operation ....... 1 Power On the System .........1 Power Off the System . -
Page 5: Express 250 Basic Operation
Express 250 Basic Operation ® This guide describes how to operate and maintain the ChargePoint Express 250 DC fast charging station as a station owner or facility manager. For full charging station specifications and ratings, refer to the Express 250 Data Sheet at: chargepoint.com/support/guides/ Power On the System The Express 250 charging station is powered on by the installation team at the site’s electrical panel,... -
Page 6: Power Off The System
Power Off the System The Express 250 does not need to be powered off except during service. The charging station does not have a separate power switch. The service technician turns off power at the electrical panel before beginning work. There is no need for a software command to power off the station; hardware is not harmed by disconnecting the circuit’s breaker. -
Page 7: Scope Of Maintenance
Scope of Maintenance Responsibility for Maintenance The ChargePoint Express 250 charging station needs minimal preventative maintenance over its lifetime. ChargePoint’s network connection monitors for system health and sends an alert when corrective maintenance might be required. Maintenance can be performed by ChargePoint technicians if the station is covered by an Assure maintenance agreement;... -
Page 8: Preventative Maintenance
Preventative Maintenance ChargePoint, or a ChargePoint certified technician, should perform service checks at the intervals listed below. Any maintenance that requires any removal of panels must be DANGER: RISK OF SHOCK. done when the system is de-energized. Turn off the circuit breaker and do not restore power until maintenance is complete and the unit is completely reassembled. -
Page 9: Reporting
Reporting This section describes how to find reporting and diagnostic information about your charging stations. All information is located in the ChargePoint dashboard: na.chargepoint.com/admin/dashboard eu.chargepoint.com/admin/dashboard Generate a Report The ChargePoint dashboard offers a full set of reports for the station owner. Log into the dashboard and select Reports from the top menu bar:... -
Page 10: Find Diagnostic Information
Major features of the reporting view include: • Report selection by data type in the secondary top menu (Analytics, Financial, Logs, etc.) • Time scope slider below the chart (day, week, etc.) • More advanced filters to apply from the bottom tab (by station name, organization, etc.) •... - Page 11 Warranty information and disclaimer The Warranty you received with your Charging Station is subject to certain exceptions and exclusions. For example, your use of, or modification to, the ChargePoint® Charging Station in a manner in which the ChargePoint® Charging Station is not intended to be used or modified will void the limited warranty. You should review your warranty and become familiar with the terms thereof.
- Page 12 Visit our Website at: Leviton Manufacturing Co., Inc. 201 N Service Rd, Melville, NY 11747 www.leviton.com/evrgreen Telephone: 1-800-323-8920 • FAX: 1-800-832-9538 email: commercial@leviton.com Tech Line: 1-800-824-3005 (M-F 8AM-10PM; Sat 9AM-7PM; Sun 9AM-5PM) Q-1450-OPERATION-MAINT © 2022 Leviton Manufacturing Co., Inc. All rights reserved. 052422...
