206 Schwinn
Recumbent Exercise Bike
®
Parts List
Full Size Hardware Chart
Product Illustration
Assembly Instructions
206 Recumbent Exercise
Bike

Advertisement

loading
Need help?

Need help?

Do you have a question about the 206 Recumbent Bike and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schwinn 206 Recumbent Bike

Summary of Contents for Schwinn 206 Recumbent Bike

  • Page 1 206 Schwinn Recumbent Exercise Bike ® Parts List Full Size Hardware Chart Product Illustration Assembly Instructions 206 Recumbent Exercise Bike...

  • Page 2: Important Precautions

    9. Read all warnings posted on the exercise bicycle. 10. User weight limit on the Schwinn 206 is 300 lbs. This Schwinn 206 is intended for home use only. Do not use this equipment in any non-residential environment. WARNING: Before beginning this or any exercise program, consult your physician.
  • Page 3 Open wrench 13mm, 14mm, 15mm (supplied) Phillips screwdriver (supplied) Also, to ensure quick and easy set up of the 206 Recumbent Bike, please verify the size and quantity of each of the enclosed assembly hardware. Included is a handy full size hardware chart and parts list of each of the required assembly hardware.

  • Page 4: Parts List

    Parts List Check Quantity Description Reference # Allen Bolt M8 x P1.25 x 45mm Flat Washer Seat Pin Adjustment Knob Seat Seat Back Handlebar Assembly Flat Washer ф8*ф16*2T Seat Frame Assembly Seat Rail Rear Stabilizer Tube End Cap (for #9) Buffer Buffer Plate Flat Washer for 12/13...
  • Page 5 Hardware Chart Stage#1 Stage#2 Allen Bolt M8xP1.25x16mm Allen Bolt M8xP1.25x Allen Bolt M8xP1.25x16mm Flat Washer ф 8* ф 19*2T Flat Washer Flat Washer for ф 8* ф 16* 2T Stage#3 Flat Washer ф 8* ф 19* 2T Curved Washer Acorn Nut M8 Carriage Bolt M8xP1.25x75mm Stage#5 Stage#4...

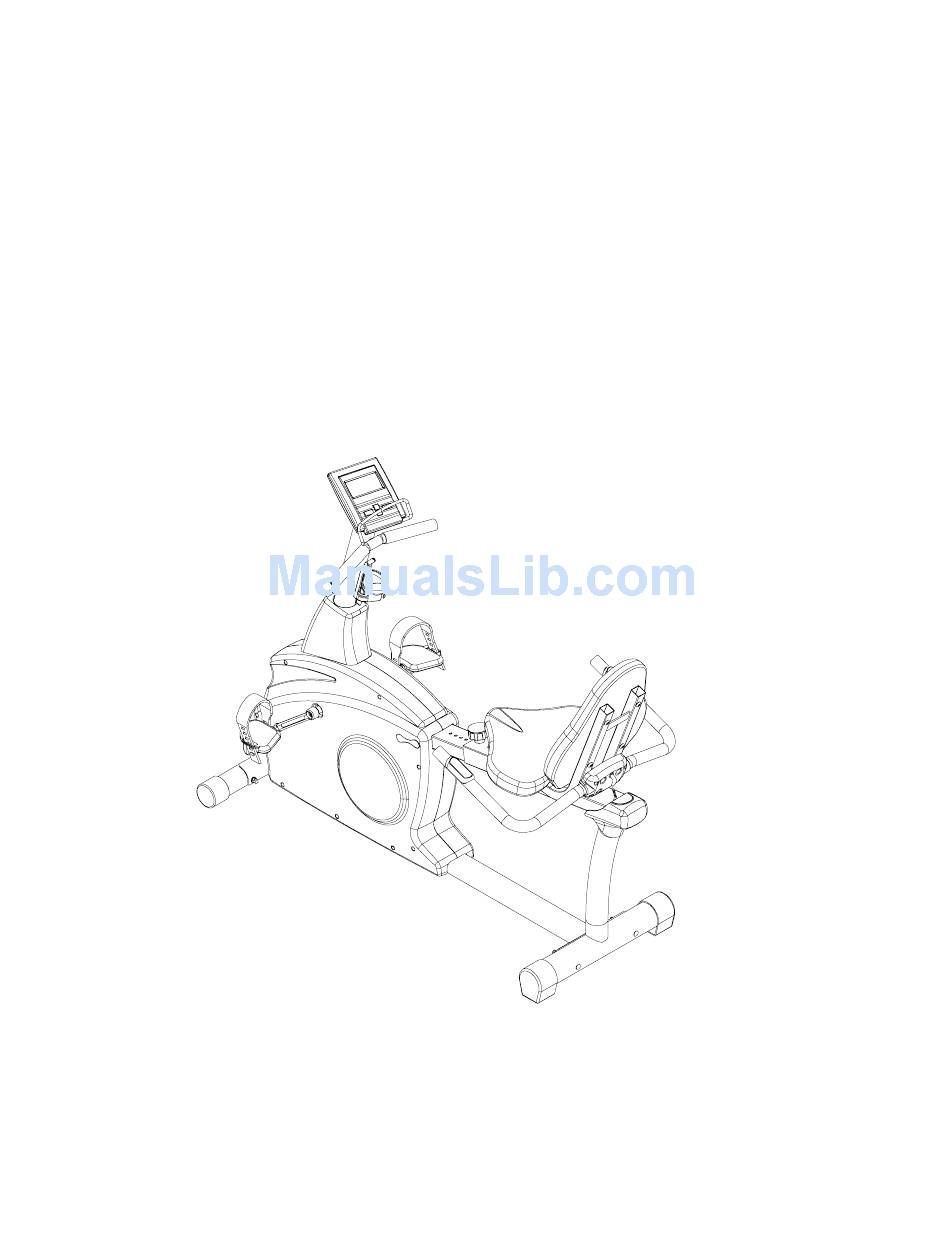

  • Page 6 206 Assembly Drawing with Reference Numbers...

  • Page 7: Replacement Parts List

    Replacement Parts List Reference # Description Seat Pin Adjustment Knob Seat Seat Back Handlebar Assembly Seat Rail Rear Stabilizer Tube Seat Rail End Cap Buffer Buffer Plate Flat Washer Screws Carriage Bolt M8 x P1.25 x 75mm Front Stabilizer Tube (w/wheels) Acorn Nut Pedals (Left &...
  • Page 8 Instructions IMPORTANT!: To ensure ease of assembly please verify the size and quantity of all the required assembly hardware and parts with the enclosed parts list and full size hardware chart. Each step of the assembly process has been ro b ken d wn in 5 ea y-to-f llow stages.
  • Page 9 Step 3: Attach SEAT BAC K (#5) to SEAT FRAME (#8 ) with 4 ALLEN BOL (#1) and 4 WASHERS (#2). Tighten Bolts. Note: Finished seat should look like picture below:...
  • Page 10 Assembly Stage #2 Attach Rear Stabilizer and Seat Rai l to Seat Assembly Assembly hardware required: (4) M8 Allen Bolts 16mm (item #22) (4) Flat Washers Ø8 * Ø19 * 2T(item#2) Step 4: Attach SEAT RAIL (#9) to REAR STABILIZER TUBE (#10) with 4 FLAT WASHERS (#2) and 4 ALLEN BOLTS (#22).
  • Page 11 Assembly Stage #3 Attach Front Stabilizer Tube and Pedals to Main Unit Assembly Hardware Required: ) M8 Bolt 75mm long (item #16) (2) Curved Washers (item #19) Acorn Nut (item #20) Step 8: Attach FRONT STABILIZER TUBE (#17) to the MAIN UNIT (#31) with the M8 BOLT 75mm (#16), CURVED WASHER (#19), and ACORN NUT (#20).
  • Page 12 Assembly Stage #4 Attach Se at Rail and Lower Base Frame to M ain Unit Assembly Hardware Required: (7) Allen Bolts 16 mm long (item #22) (3) Flat Washers (item #2) (2) Allen Bolts 90 mm long (item #24) (2) Curved Washers (item #19) (4) Flat Washer (item #7) p 10: Slide the LOWER BASE FRAME (#32) into the MAIN UNIT (#31), attach h 3, 16mm BOLTS (#22) and 3 FLAT WASHERS (#2).
  • Page 13 - IMPORTANT - Before proceeding to step 11 please complete the following steps. Failure to do so could lead to damage to the handgrip heart rate wires! 1) Remove END CAP (#11) from the end of the seat rail. The coiled wire seen above the seat rail needs to be re-routed out the back of the seat rail .
  • Page 14 Assembly Stage #5 Attach Console Mast to Main Unit Step 16 Assembly Hardware Required: (4) Allen Bolts 16 mm long (item #22) (4) Curved Washers (item #19) (4) Computer Screws (item #33) (2) Water Bottle Cage Screws M5*12 mm (item #56) tep 13: Run CONSOLE MAST (#30) through the CONSOLE MAST COVER (#27) nd onto the MAIN UNIT (#31).
  • Page 15 Step 15: Attach UPPER COMPUTER CABLE (#28) and HR CABLE (#29) to under de of COMPUTER (#34). Place COMPUTER (#34) on top of CONSOLE MAST (#30), the reading rack should wrap around the bottom of the COMP UTER. Attach COMPUTER to CONS OLE MAST with COMPUTER MOUNTIN G SCREWS (#33).
  • Page 16 Troubleshooting the Schwinn 206 Recumbent Exercise Bike IP: Use assembly diagram(s) as reference when troubleshooting unit. PROBLEM: Computer will not start, function, or is blank… (SOLUTION): 1. Ensure the unit is plugged into a 110v outlet. 2. Check the wiring connections a nd connector orientation made to the computer.
