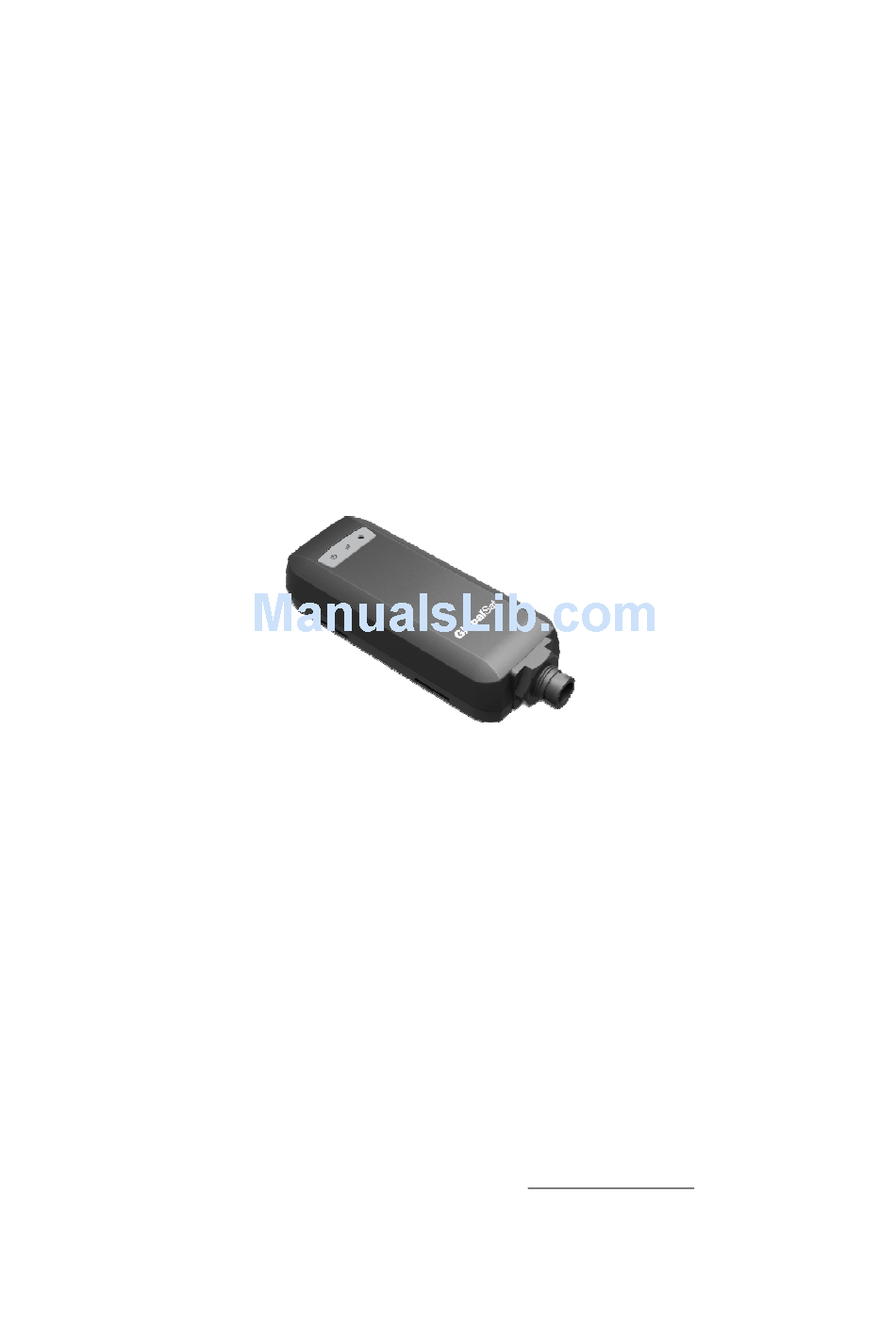

Motorcycle/ Vehicle Tracker
GlobalSat WorldCom Corporation
st
16F., No. 186, Jian 1
Rd, Zhonghe Dist.,
New Taipei City 23553, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
www.globalsat.com.tw
GTR-388A12/GTR-388E12
Quick Start Guide
V1.1
USGlobalSat Incorporated
14740 Yorba Court
Tel:
888.323.8720
sales@usglobalsat.com
www.usglobalsat.com
Chino, CA 91710
909.597.8532
/ Fax:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Globalsat GTR-388A12
Summary of Contents for Globalsat GTR-388A12
-
Page 1: Quick Start Guide
GTR-388A12/GTR-388E12 Motorcycle/ Vehicle Tracker Quick Start Guide V1.1 GlobalSat WorldCom Corporation 16F., No. 186, Jian 1 Rd, Zhonghe Dist., USGlobalSat Incorporated 14740 Yorba Court Chino, CA 91710 New Taipei City 23553, Taiwan 909.597.8532 Tel: 888.323.8720 / Fax: Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 sales@usglobalsat.com... -
Page 2: Table Of Contents
CONTENT 1. Introduction ........................3 1.1 Introduction ....................... 3 1.2 Features ........................3 1.3 Hardware specification .................... 4 1.4 Appearance ........................ 5 1.5 LED indicator ......................5 1.6 Cable description ...................... 6 1.7 Accessories ........................ 7 1.7.1 Standard Items ......................7 1.7.2 Optional Items ...................... -
Page 3: Introduction
1. Introduction 1.1 Introduction GTR-388A12/GTR-388E12 is designed as a durable and multi-functional 3G GPS tracker. It integrates highly sensitive GPS module and 3G communication module with a powerful microcontroller that fits into a compact enclosure. The device is capable of being waterproof and ideal for use in a motorcycle, golf carts and vehicles. -
Page 4: Hardware Specification
1.3 Hardware specification Item Description Model GTR-388A12 GTR-388E12 Back-up Battery Li-Polymer 820mAh Temperature Operation -30℃ ~ + 60℃ (0℃ ~ + 45℃ for charging) Storage -40℃ ~ + 60℃ Dimension 107.5 mm X 38.7 mm X 23.5 mm GPS receiver... -
Page 5: Appearance
1.4 Appearance Reset button For fixing device with Velcro tape Screws of back cover 1.5 LED indicator Normal mode: LED status Description Device is being boot but SIM card isn’t Red blinking ready Red solid SIM card is ready, but not register to network Yellow solid Registered to network, but not connected to... -
Page 6: Cable Description
1.6 Cable description Wire Color Description Green SOS (Negative Trigger) Blue Fuel sensor input (Analog Input, 0~28 V, 12 bits resolution) Yellow Digital Input (Negative Trigger) Main Power, 9~36 V Black Ground White Digital Output (Negative Trigger), 300 mA Orange Ignition Detection Input (Positive Trigger) Black Ground... -
Page 7: Accessories
1.7 Accessories 1.7.1 Standard Items Hardwire cable Main Unit Velcro Tape X2... -
Page 8: Optional Items
1.7.2 Optional Items External Emergency Button 12V/24V Relay OBDII Power Cable... -
Page 9: Operation
2 Operation For first time users, please follow the steps below to complete the pre-installation. 2.1 Install the SIM card Unscrew the cover of device. Open the SIM holder, place SIM card with the copper contacts face-down and the notch on the SIM card at the left side of the SIM holder. Push the SIM holder’s lid according to the direction of the arrow. -
Page 11: Connect The Main Power
2.2 Connect the Main Power Connect the red wire from the cable to a power source of 9V~36 V. Connect the black wire to ground. 2.3 Switch on/off Tracker After connecting the power, please press the reset button to turn on GTR-388A12/GTR-388E12. -
Page 12: Fix The Device
2.4 Fix the device You could fix the GTR-388A12/GTR=388E12 with the Velcro tape as the picture above. You could tear down the cover of double side tape and stick GTR-388A12/GTR-388E12 to the installation position. There is a magnet behind the double side tape. You could install the GTR-388A12/GTR-388E12... -
Page 13: Installation
3 Installation 3.1 Installing the Emergency button There is a line of cable for connecting a push button for emergency help. One end of the button must be connected to the SOS line and the other end must be connected to the ground line. -
Page 14: Connecting Ignition Detection Line On Car
3.2 Connecting ignition detection line on car Lock Ignition (On) Connect the orange wire from the cable to ACC position of vehicle. Connect the black wire to ground. -
Page 15: Connecting Relay
3.3 Connecting Relay Connect the white wire from GTR-388A12/GTR-388E12’s cable to the yellow wire of relay. For the other connections, please refer to the diagram above. -
Page 16: Installation Reminder
Therefore, if you put a tracker in the car, please make sure to place it with good ventilation. For Vehicle: GTR-388A12/GTR-388E12 could be placed or installed on the marked position as the pictures below. If you’d like to install GTR-388A12/GTR-388E12 at the OBDII connector of vehicles, please connect GTR-388A12/GTR-388E12 with the OBDII power cable firstly, then you could connect the OBDII power cable to the OBDII connector of vehicle as the picture below. - Page 17 For Motorcycle • For motorcycle rider, GTR-388A12/GTR-388E12 could be installed at the marked position as the picture as below.
