Fireplace Installation

WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of fire, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of fire, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of fire,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of fire, do not store or use gaso-
line or other flammable vapors or
liquids in the vicinity of the heater.

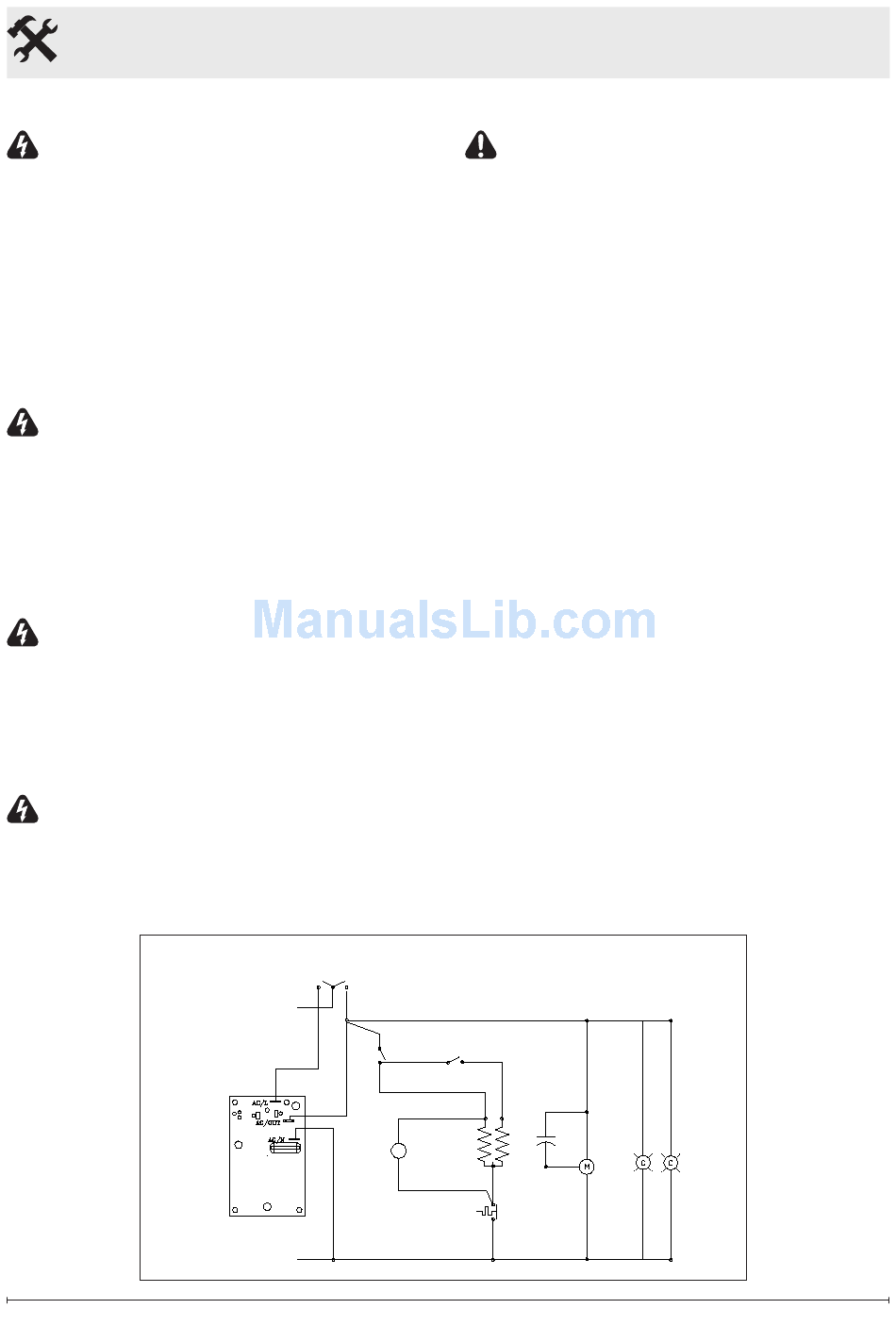

Wiring
3-POSITION
SWITCH
L
MOTOR
REMOTE
CONTROL RECEIVER
N
CAUTION:
risk of fire, keep electrical cords,
drapery, furnishings, and other
combustibles at least 3 ft (0.9 m)
from the front of the heater.
!
NOTE: A 15 Amp, 120 Volt
alternating current (VAC) circuit
is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
1. Make sure the unit's
3-Position Switch is switched
OFF ("O") (refer to operating
instruction section).
2. Plug the unit into a 15
Amp/120 VAC outlet.
HIGH HEAT
LOW HEAT
SWITCH
SWITCH
CAPACITOR
M
ELEMENT
THERMAL
CUTOUT
High temperature,
LOWER
LIGHTS
FLICKER
MOTOR
7
