3. Installing the Units
Installing the Imaging Units
C4004U011AA
C4004U047AA
C4004U048AA
4004-7715-01

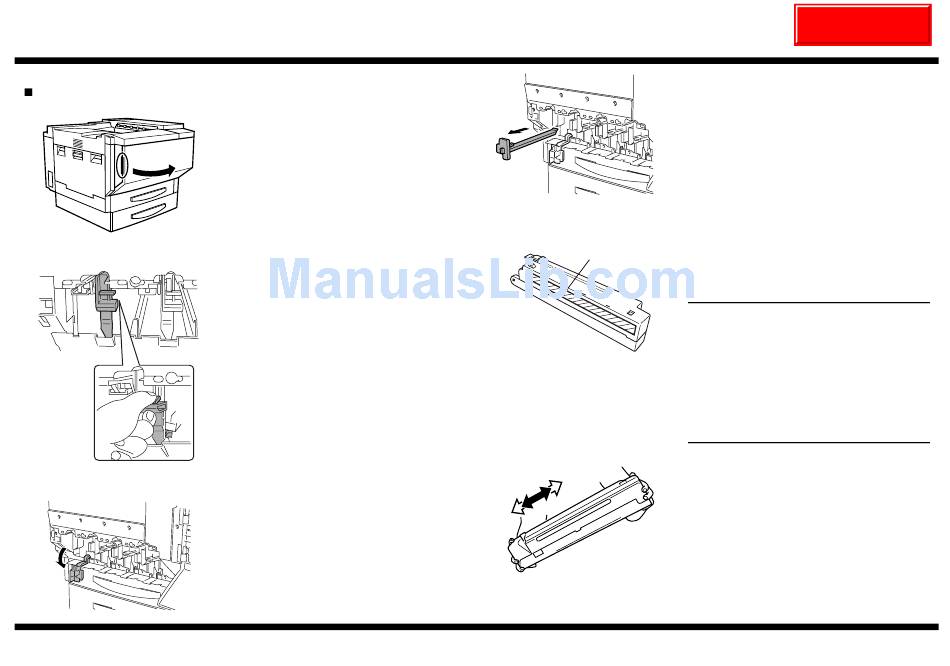

1. Grasp the handle of the front door, and then
carefully swing the door open to the right as
shown.
2. Pinch the release lever for the yellow imag-
ing unit. (The colors of the imaging units are,
from the left, yellow, magenta, cyan, and
black.)
3. Swing the release lever toward you.
CF2001P
C4004U144AA
Protective tape
C4004U049AB
C4660U001AB
– 4 –
NEXT
NEXT
4. Remove the packing material from the imag-
ing unit slot.
5. Remove the yellow imaging unit from its box
and its protective plastic bag, and then place
the imaging unit on a stable, level surface,
such as a table.
NOTE
• The imaging unit can easily be damaged
by light. Therefore, leave the imaging unit
in its protective plastic bag until immedi-
ately before it is to be installed.
• After removing the imaging unit from its
protective plastic bag, make sure that it is
not exposed to light, and immediately
install it into the printer.
6. Hold the imaging unit in both hands, tilt it to
the left, and then lightly shake it twice in the
direction of the tilt. Next, hold the unit tilted to
the right, and then lightly shake it twice in the
direction of the tilt.
