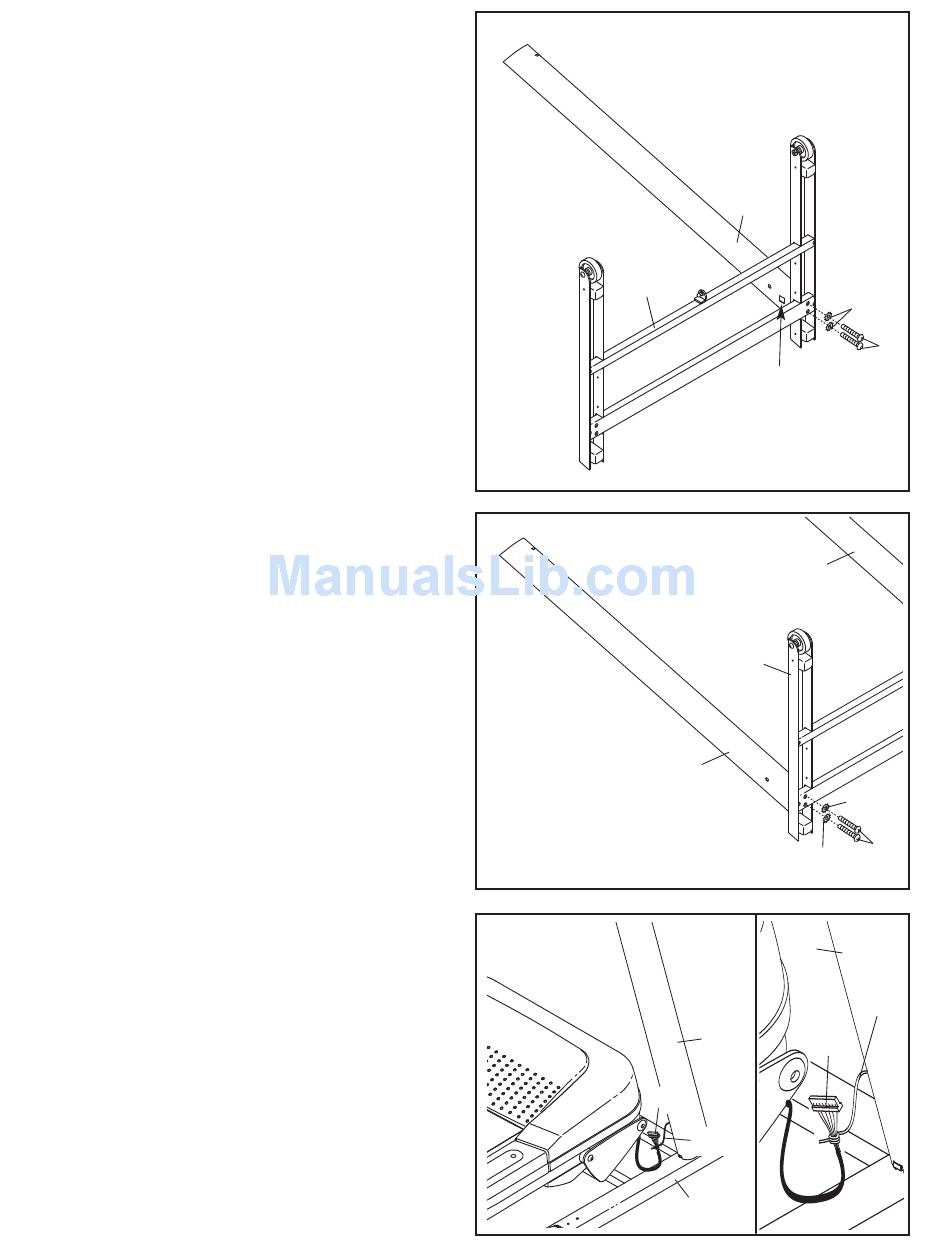

2. Identify the Right Upright (36), which has a
square hole in the location shown.
Orient the Right Upright (36) and the Base (48)
as shown. Attach the Right Upright to the Base
with two Upright Bolts (40) and two Upright Star
Washers (39); do not tighten the Upright Bolts
yet.
3. Orient the Left Upright (31) as shown. Attach the
Left Upright to the Base (48) with two Upright
Bolts (40) and two Upright Star Washers (39); do
not tighten the Upright Bolts yet.
Raise the Uprights (31, 36).
4. Position the Base (48) near the front of the tread-
mill as shown.
Locate the wire in the Right Upright (36). See the
inset drawing. Tie the wire securely to the con-
nector on the Upright Wire (28). Then, insert the
connector into the square hole in the Right
Upright.
