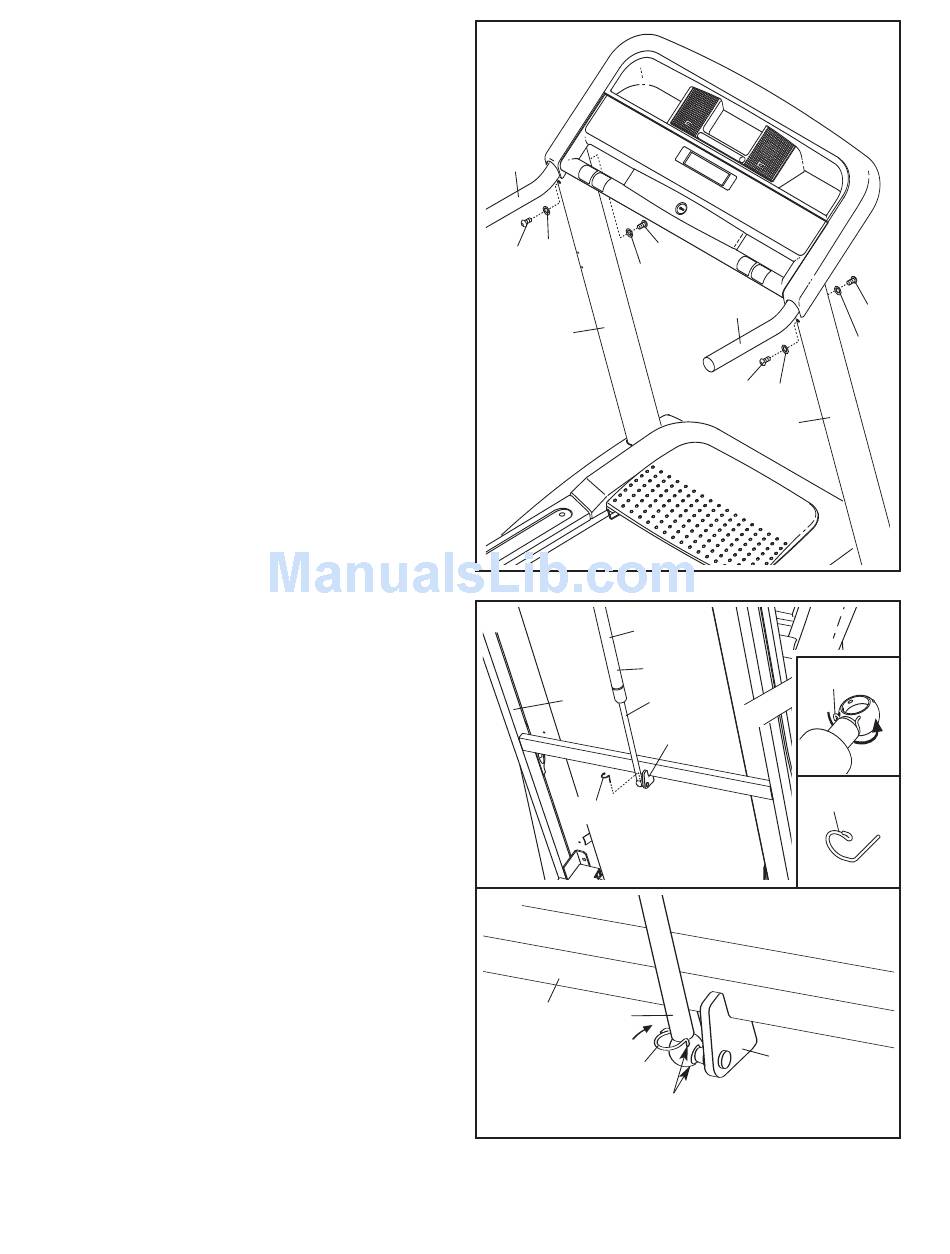

10. Tighten the four Handrail Bolts (20) with the four
Handrail Star Washers (19) into the Left and
Right Uprights (31, 36) and the Left and Right
Handrails (18, 11). Start all four Handrail Bolts
before tightening any of them.
11. Have a second person raise and hold the tread-
mill Frame (74).
Identify the Gas Spring (21). Note that the Gas
Spring has a cylinder end and a rod end. See the
two small inset drawings. Locate the Spring Clip
(105) in the rod end of the Gas Spring. Using
your fingernail or the end of a screwdriver, press
on the end of the Spring Clip to loosen it, rotate
the Spring Clip, and then pull the Spring Clip out
of the Gas Spring. Be careful to avoid losing the
Spring Clip. Note: Extra Spring Clips are in-
cluded.
Next, hold the rod end of the Gas Spring (21)
near the bracket in the center of the Frame (74).
Press the end of the Gas Spring as far as possi-
ble onto the ball on the bracket.
See drawing 11a. Insert the Spring Clip (105)
into the two indicated small holes in the rod end
of the Gas Spring (21). Then, rotate the Spring
Clip until it clips onto the Gas Spring.
10
18
20 19
19
31
11
Cylinder
74
105
11a
74
21
105
10
20
11
20
19
36
21
105
Rod
Bracket
105
Bracket
Holes
20
19
