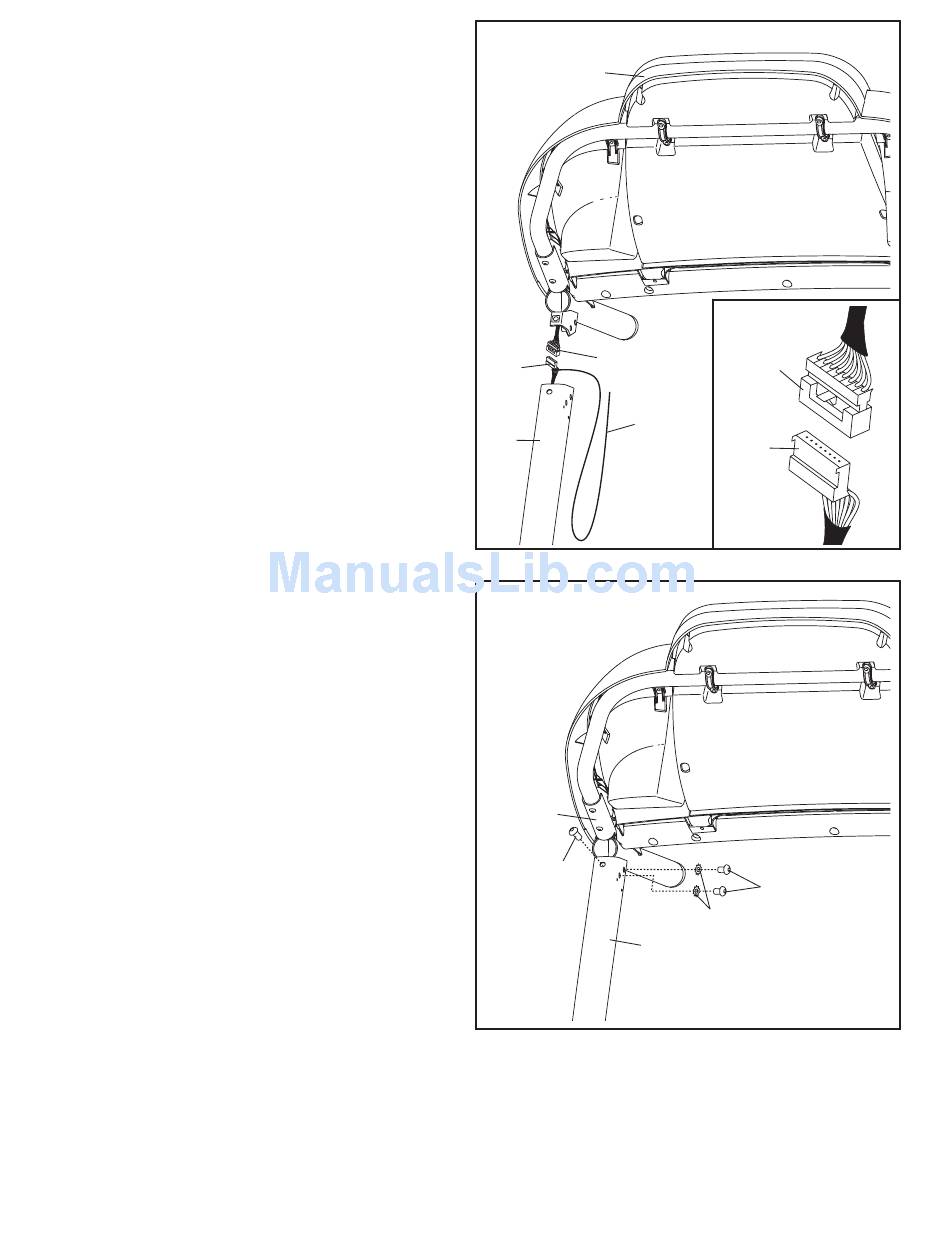

9. Have a second person hold the console assem-
bly near the Right Upright (76).
Connect the Upright Wire (63) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and
try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the long tie from the
Upright Wire and the tie from the console wire.
Then, insert the connectors into the Right Upright
(76).
Set the console assembly on the Right Upright
(76) and the Left Upright (not shown). Make sure
that no wires are pinched.
10. Start an M8 x 25mm Screw (5) and two 5/16"
x 5/8" Screws (79) with two M8 Star Washers
(6) into the Right Upright (76) and the Right
Handrail (64) as shown. Do not tighten the
Screws yet.
Attach the Left Handrail (not shown) as de-
scribed above. Then, firmly tighten all six
Screws.
