American Dryer Corp. ML-190 Parts Manual

2001
Hide thumbs Also See for ML-190:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

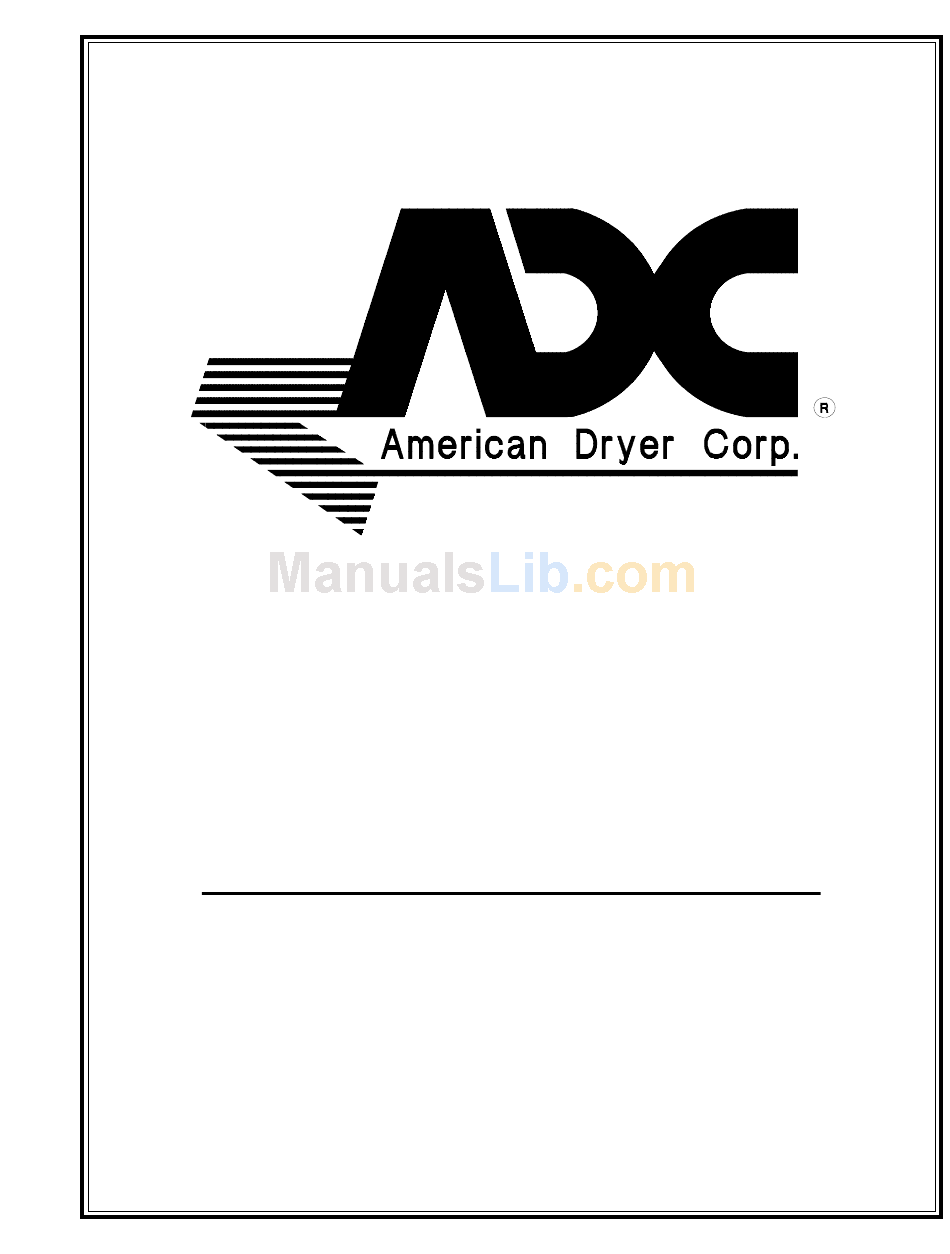

ML-190
Parts Manual
2001
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
ADC Part No. 450409-6

Advertisement

Table of Contents
loading

Related Manuals for American Dryer Corp. ML-190

Summary of Contents for American Dryer Corp. ML-190

  • Page 1 ML-190 Parts Manual 2001 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com ADC Part No. 450409-6...
  • Page 2 POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. Important ML-190 MODEL NO. ______________...

  • Page 3: Table Of Contents

    Table of Contents Control Door Assembly ... 4 Microprocessor Control Panel Assembly ... 5 Front Panel / Main Door Assemblies ... 6 Main Door Switch ... 7 Tumbler Assembly ... 8 Lint Door Assembly ... 9 Lint Drawer / Lint Drawer Switch Box Assemblies... 10 Rear Wheel and Tumbler Support Assembly for Models Mfd.

  • Page 4: Control Door Assembly

    Control Door Assembly Illus. No. Part No. Qty. Description 882439 Control Door Assembly (white) (includes illus. nos. 1 and 2) 882440 Control Door Assembly (coral wrinkle blue) (includes illus. nos. 1 and 2) 882541 Spring Turn Latch (2-piece) 117603 Noise Suppressor Tape (sold by the foot) 150309 #10-16 x 1/2”...

  • Page 5: Microprocessor Control Panel Assembly

    Illus. No. Part No. Qty. Description 112537 Phase 6 Non-Coin Keypad 112276 Non-Coin Stick-On Label (English ONLY) … Not Illustrated 112275 Non-Coin Stick-On Label (Spanish, Italian, and Hebrew) … Not Illustrated 112277 3-Language Non-Coin Stick-On Label (English, Spanish, and Hebrew) … Not Illustrated 112278 5-Language Non-Coin Stick-On Label (Italian, Dutch, French, German, and Chinese) …...

  • Page 6: Front Panel / Main Door Assemblies

    Front Panel / Main Door Assemblies Illus. No. Part No. Qty. Description 881685 Main Door Hinge (white) 882296 Main Door Hinge (coral wrinkle blue) 881740 1/4-20 x 5/8” Carriage Bolt (white) 882339 1/4-20 x 5/8” Carriage Bolt (coral wrinkle blue) 151012 #10-32 Nylon Acorn Nut (white) 881688...

  • Page 7: Main Door Switch

    Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 153010 #6 Star Washer 137005 Single-Pole Door Switch 150443 1/4-20 x 3/4” Stainless Steel Cap Screw 881687 Main Door Switch Housing ONLY (white) 882291 Main Door Switch Housing ONLY (coral wrinkle blue) 881702...

  • Page 8: Tumbler Assembly

    Tumbler Assembly Illus. No. Part No. Qty. Description 819042 Tumbler Assembly (includes illus. nos. 1 through 3) 170156 Tumbler Perforated Side 150123 1/4-20 x 1/4” Socket Button Head Cap Screw 881619 Rotational Sensor Magnet American Dryer Corporation 450409 - 6...

  • Page 9: Lint Door Assembly

    Illus. No. Part No. Qty. Description 882443 Lint Door Assembly (white) (includes illus. nos. 1, 2, and 4) 882444 Lint Door Assembly (coral wrinkle blue) (includes illus. nos. 1, 2, and 4) 117605 Neoprene Sponge Tape (sold by the foot) 150309 #10-16 x 1/2”...

  • Page 10: Lint Drawer / Lint Drawer Switch Box Assemblies

    Lint Drawer / Lint Drawer Switch Box Assemblies Illus. No. Part No. Qty. Description 882449 Lint Drawer Assembly Complete (white) 882450 Lint Drawer Assembly Complete (coral wrinkle blue) 820925 Lint Screen Assembly ONLY 122116 Lint Drawer Switch ONLY 122605 4-Pin Socket Connector 122701 Socket Terminal ONLY 122801...

  • Page 11: Rear Wheel And Tumbler Support Assembly For Models Mfd. As Of March 31, 2000

    Illus. No. Part No. Qty. Description 835339 Tumbler Shaft Support Bracket 102394 1/8” Thick VHMW Polyethylene 153005 3/8” Split Lock Washer 150600 3/8” 16 x 1.5 hhmb 153004 3/8” x 100 Flat Washer 180018 4” Diameter x 1-1/2” Wide Hi-Impact Wheel 819046 Tumbler Support Adjustment Plate 819065...

  • Page 12: Tumbler Bearing / Rotational Sensor Assemblies For Models Mfd. Prior To March 31, 2000

    Tumbler Bearing / Rotational Sensor Assemblies For Models Mfd. prior to March 31, 2000 Illus. No. Part No. Qty. Description 100244 1-15/16” Tumbler Bearing 153011 9/16” Flat Washer 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 319065 Rotational Sensor Mounting Bracket 815960 Rotational Sensor Assembly 319016...

  • Page 13: Idler Shaft Assembly

    Illus. No. Part No. Qty. Description 319062 Idler Shaft 882461 Idler Shaft Assembly (includes illus. nos. 1 and 4) 821465 11” Wheel and Hub 101227 1-1/2” Taper Lock 880217 1-1/2” Pillow Block Bearing 152011 1/2-13 Hex Nut 153026 1/2” Lock Washer 153050 1/2”...

  • Page 14: Drive Shaft Assembly

    Drive Shaft Assembly Illus. No. Part No. Qty. Description 319062 Tumbler Shaft 882461 Tumbler Shaft Assembly (includes illus. nos. 1 and 4) 821465 11” Drive Wheel 101227 1-1/2” Bushing 880217 1-1/2” Pillow Block Bearing 152011 1/2-13 Hex Nut 153026 1/2” Lock Washer 153050 1/2”...

  • Page 15: Speed Reducer Shaft Assembly

    Illus. No. Part No. Qty. Description 319062 Speed Reducing Shaft 882461 Speed Reducing Shaft Assembly (includes illus. nos. 1 and 4) 101160 2B x 3.4” Pulley 101150 1-1/2” Bushing with Setscrew 880217 1-1/2” Pillow Block Bearing 152011 1/2-13 Hex Nut 153026 1/2”...

  • Page 16: Microprocessor Temperature Sensor Bracket Assembly

    Microprocessor Temperature Sensor Bracket Assembly Illus. No. Part No. Qty. Description 815931 Microprocessor Temperature Sensor Bracket Complete (includes illus. nos. 1 through 10) 820967 Microprocessor Temperature Sensor Bracket ONLY 150005 #6-32 x 1/4” Round Head Machine Screw 153010 #6 Star Washer 130302 225°...

  • Page 17: Totally Enclosed, Non-Venting Drive Motor Assembly

    Totally Enclosed, Non-Venting Drive Motor Assembly Illus. No. Part No. Qty. Description 835297 Motor Adjustment Plate 150501 5/16-18 x 3/4” Hex Head Tap Bolt 153002 5/16” Lock Washer 153001 5/16” Flat Washer 100043 3 hp 208-230/460v (3ø) 60 Hz Totally Enclosed, Non-Venting Motor 380-416v (3ø) 50 Hz Totally Enclosed, Non-Venting Motor 181019 3 hp 575v (3ø) 60 Hz Totally Enclosed, Non-Venting Motor...

  • Page 18: Blower Motor Mount Assembly

    Blower Motor Mount Assembly Illus. No. Part No. Qty. Description 181030* 7-1/2 hp 208-230/460v (3ø) 60 Hz Motor ONLY 181039 7-1/2 hp 575v (3ø) 60 Hz Motor 101147 2B x 4.0 Motor Pulley (60 Hz Only) 101152 SH x 1-3/8” Bushing 100706 5/16”...

  • Page 19: Fan (Squirrel Cage) Shaft Mount Assembly

    Illus. No. Part No. Qty. Description 100612 1-1/4” Bore x 15” Diameter x 6” Blower / Fan (squirrel cage) 821078 Fan Shaft Mount Assembly Complete (includes illus. nos. 1 through 19) 821073 Fan Shaft Mount ONLY 117604 Neoprene Sponge Tape (sold by the foot) 152006 1/2-20 Left Hand Jam Nut 153065...

  • Page 20: Direct Spark Ignition Gas Burner Assembly

    Direct Spark Ignition Gas Burner Assembly American Dryer Corporation 450409 - 6...
  • Page 21 Illus. No. Part No. Qty. Description 142929 1-1/2” to 1” Reducing Coupling 332117 Pipe Bracket 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 142583 1” x 40” Nipple 882537 Flame-Probe Wire 142808 1” x 3” Nipple 142602 1” Union 152013 #6-32 Hex Nut 142507...

  • Page 22: Hot Surface Ignition Burner Assembly

    Hot Surface Ignition Burner Assembly American Dryer Corporation 450409 - 6...
  • Page 23 Illus. No. Part No. Qty. Description 142929 1-1/2” to 1” Reducing Coupling 332117 Pipe Bracket 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 142817 1” x 28-1/2” Pipe 141302 1” Union Shutoff 142724 1” x 2” Nipple 142602 1” Union 142581 1”...

  • Page 24: Sail Switch Assembly

    Sail Switch Assembly Illus. No. Part No. Qty. Description 105500 Sail Switch Actuator Rod 319202 Sail Switch Damper (flat) 154002 1/8” Push-On Fastener 802800 Sail Switch Box with Cover and Bracket ONLY 802801 Sail Switch Box Assembly Complete (includes illus. nos. 1 through 4 and 6 through 10) 150300 #10-16 x 1/2”...

  • Page 25: Steam Damper Assembly

    Illus. No. Part No. Qty. Description 165017 Steam Coil ONLY 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 Steam Damper Hinge Assembly 820994 Steam Damper Assembly (includes illus. nos. 7, 10, and 11) 153007 1/4”...

  • Page 26: Top Console Assembly

    Top Console Assembly Illus. No. Part No. Qty. Description 882447 Top Console Assembly ONLY (white) for Gas Models ONLY 882448 Top Console Assembly ONLY (coral wrinkle blue) for Gas Models ONLY 882445 Top Console Assembly ONLY (white) for Steam Models ONLY 882446 Top Console Assembly ONLY (coral wrinkle blue) for Steam Models ONLY 112284...

  • Page 27: Pneumatic Valve Assembly For Gas Models Only

    Illus. No. Part No. Qty. Description 143250 1/8” M.P.T. Brass Plug 150002 #6-32 x 1” Slotted Machine Screw 100498 3-Way Micro Valve ONLY – 24 VAC 821105 Pneumatic Valve Assembly Complete (includes illus. nos. 1 through 8) 143149 1/4” Poly x 1/8” M.P.T. Elbow 100472 1/4”...

  • Page 28: Pneumatic Valve Assembly For Steam Models Only

    Pneumatic Valve Assembly For Steam Models ONLY Illus. No. Part No. Qty. Description 100496 1/8” Needle Valve 143238 1/8” Close Nipple 100498 3-Way Micro Valve ONLY – 24 VAC 821104 Pneumatic Valve Assembly Complete (includes illus. nos. 1 through 10) 143223 1/8”...

  • Page 29: Air Jet Assembly

    Illus. No. Part No. Qty. Description 332700 Air Jet Tube ONLY 143287 1/4” x 1/8” M.P.T. Male Run Tee 143259 1/4” x 1/8” F.P.T. Bulkhead Fitting 143100 1/4” Aluminum Tube (sold by the inch) 821081 Air Jet Mounting Plate ONLY (includes illus.

  • Page 30: Microprocessor Reversing Contactor Mounting Panel Assembly

    Microprocessor Reversing Contactor Mounting Panel Assembly American Dryer Corporation 450409 - 6...
  • Page 31 Microprocessor Reversing Contactor Mounting Panel Assembly Illus. No. Part No. Qty. Description 132439 17-25-Amp Blower (Impellor / Fan) Overload 132465 Reversing (Impellor / Blower / Fan) Contactor – 24 VAC 151001 #8-32 Pal Nut 150008 #6-32 x 1-1/4” Slotted Round Head Machine Screw 120701 4-Position Power Distribution Block 132434...

  • Page 32: Back Guard Assemblies

    Back Guard Assemblies American Dryer Corporation 450409 - 6...
  • Page 33 Illus. No. Part No. Qty. Description 821956 20” Round Duct Transition Piece Assembly 821793 20” Round Duct Transition Piece with Damper Assembly –––––– Wiring Diagram For Machine 112046 “Computer Ground” Label 114005 “Danger – Hot” Label 112519 “Routine Maintenance” Label 112295 “High Voltage”...
  • Page 34 ADC Part No. 450409 6 - 08/13/08 - 0...
