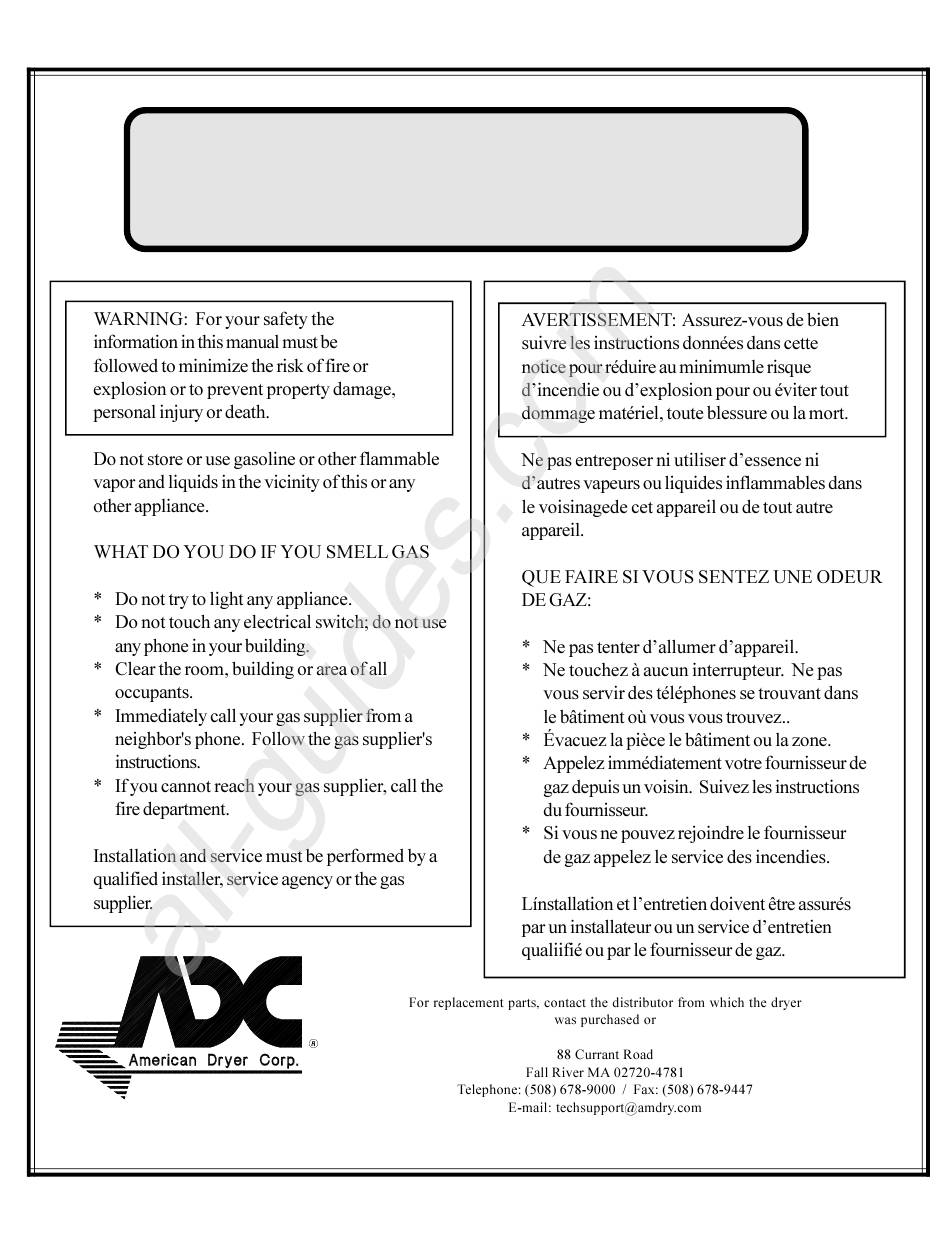

- Page 1 All manuals and user guides at all-guides.com ML-82 (Gas - DSI /Steam Models) Installation Manual American Dryer Corporation 041700WM/tcosta ADC Part No. 113143...
- Page 2 Important For your convenience, log the following information: ML-82 DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________ DISTRIBUTOR’S NAME ___________________________________________________________________________________...
- Page 3 All manuals and user guides at all-guides.com IMPORTANT CAUTION CAUTION WARNING...
-
Page 4: For Your Safety
All manuals and user guides at all-guides.com FOR YOUR SAFETY WARNING WARNING IMPORTANT... - Page 5 All manuals and user guides at all-guides.com Table of Contents...
- Page 6 All manuals and user guides at all-guides.com...
- Page 7 All manuals and user guides at all-guides.com SECTION I IMPORTANT INFORMATION must be...
- Page 8 All manuals and user guides at all-guides.com must be must never be DO NOT DO NOT...
- Page 9 All manuals and user guides at all-guides.com DO NOT DO NOT...
-
Page 10: Specifications/Component Identification
All manuals and user guides at all-guides.com SECTION II SPECIFICATIONS/COMPONENT IDENTIFICATION 37" 94 cm ASKET UMBLER IAMETER 36" 91.5 cm ASKET UMBLER EPTH 1/2 HP .373 kw ASKET UMBLER OTOR 3 HP 2.238 kw LOWER OTOR 21-1/2" 54.61 cm PENING IAMETER 22.4 cu. -
Page 11: Specifications
All manuals and user guides at all-guides.com Specifications ML-82 (Gas and Steam ONLY) - Page 12 All manuals and user guides at all-guides.com...
- Page 13 All manuals and user guides at all-guides.com...
-
Page 14: Installation Procedures
All manuals and user guides at all-guides.com SECTION III INSTALLATION PROCEDURES must be should be... - Page 15 All manuals and user guides at all-guides.com must be 012999JEV-GS/cj P/N: 114092...
- Page 16 All manuals and user guides at all-guides.com must be...
- Page 17 All manuals and user guides at all-guides.com must...
- Page 18 All manuals and user guides at all-guides.com EXAMPLE: must be MUST BE...
- Page 19 All manuals and user guides at all-guides.com should not exceed must be must be DO NOT...
- Page 20 All manuals and user guides at all-guides.com THE DUCT SIZE MUST NOT BE REDUCED ANYWHERE DOWN STREAM OF THE DRYER should not exceed...
- Page 21 All manuals and user guides at all-guides.com should be must be must be DO NOT should be...
- Page 22 All manuals and user guides at all-guides.com should be should not exceed must be must be DO NOT...
- Page 23 All manuals and user guides at all-guides.com...
- Page 24 All manuals and user guides at all-guides.com DO NOT use aluminum wire which could cause a fire hazard. must be...
- Page 25 All manuals and user guides at all-guides.com M LG-82 (Gas) M LS-82 (Steam) LECTRIC ERVICE PECIFICATIONS PER DRYER IMPORTANT: 208 VAC and 240 VAC ARE NOT THE SAME. When ordering, specify exact voltage. NOTE: A. Fuse ratings are dual-element, time-delay, current limiting, class RK1 or RK5 ONLY. B.
- Page 26 All manuals and user guides at all-guides.com MUST BE...
- Page 27 All manuals and user guides at all-guides.com DO NOT operate dryer must be...
-
Page 28: Type Of Gas
All manuals and user guides at all-guides.com YPE OF Natural Liquid Propane 8.7 mb 26.1 mb Manifold Pressure* 3.5 inches W.C. 10.5 inches W.C. Inline Pressure 6.0 - 12.0 inches W.C. 14.92 - 29.9 mb 10.5 inches W.C. 26.1 mb Shaded areas are stated in metric equivalents * Measured at gas valve pressure tap when the gas valve is on. - Page 29 All manuals and user guides at all-guides.com must be must be must be...
- Page 30 All manuals and user guides at all-guides.com...
- Page 31 All manuals and user guides at all-guides.com must be must be Operating Steam Pressure Maximum 125 psig 861.84 kPa Minimum 100 psig* 689.47 kPa Heat Input (Normal Load) 7 Bhp Consumption (Approximate) 239 lbs/hr 108.41 kg/hr Shaded areas are stated in metric equivalents * Minimum operating pressure for optimum results.
- Page 32 All manuals and user guides at all-guides.com must be...
- Page 33 All manuals and user guides at all-guides.com Compressed Air Supply Air Pressure Normal 80 PSI 5.51 bars Minimum Supply 70 PSI 4.82 bars Maximum Supply 90 PSI 6.20 bars Shaded areas are stated in metric equivalents...
- Page 34 All manuals and user guides at all-guides.com...
- Page 35 All manuals and user guides at all-guides.com THE SUPPLY VOLTAGE MUST MATCH THE ELECTRIC SERVICE EXACTLY...
- Page 36 All manuals and user guides at all-guides.com must be must be...
- Page 37 All manuals and user guides at all-guides.com should not be must be must be...
-
Page 38: Gas Models
All manuals and user guides at all-guides.com GAS MODELS STEAM MODELS... -
Page 39: Service/Parts Information
All manuals and user guides at all-guides.com SECTION IV SERVICE/PARTS INFORMATION... -
Page 40: Warranty Information
All manuals and user guides at all-guides.com SECTION V WARRANTY INFORMATION... - Page 41 All manuals and user guides at all-guides.com must be Damage claims are the responsibility of the shipper.
-
Page 42: Routine Maintenance
All manuals and user guides at all-guides.com SECTION VI ROUTINE MAINTENANCE SUGGESTED CLEANING SCHEDULE EVERY THIRD or FOURTH LOAD WEEKLY... -
Page 43: Every 6 Months
All manuals and user guides at all-guides.com STEAM DRYERS 90 DAYS EVERY 6 MONTHS DO NOT 7 DAYS AFTER INSTALLATION and EVERY 6 MONTHS THEREAFTER... - Page 44 All manuals and user guides at all-guides.com...
-
Page 45: Procedure For Functional Check Of Replacement Components
All manuals and user guides at all-guides.com SECTION VII PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS... - Page 46 All manuals and user guides at all-guides.com...
- Page 47 All manuals and user guides at all-guides.com must read normal operation...
- Page 48 All manuals and user guides at all-guides.com must shut off must lockout must proceed...
-
Page 49: Section Viii
All manuals and user guides at all-guides.com SECTION VIII DATA LABEL LOCATION/INFORMATION... - Page 50 All manuals and user guides at all-guides.com...
-
Page 51: Burner And Lint (Tumbler) Chamber Manual Reset Hi-Limit Instructions
All manuals and user guides at all-guides.com SECTION IX BURNER and LINT (TUMBLER) CHAMBER MANUAL RESET HI-LIMIT INSTRUCTIONS I M P O R TA N T MANUAL RESET HI-LIMIT INSTRUCTIONS FOR PHASE 6 MODELS (GAS MODELS ONLY) IMPORTANT This dryer is equipped with a burner hi- limit and tumbler/lint chamber hi-limit ther- mostat which must be reset manually. - Page 52 All manuals and user guides at all-guides.com I M P O R TA N T MANUAL RESET HI-LIMIT INSTRUCTIONS FOR PHASE 6 MODELS (STEAM MODELS ONLY) IMPORTANT This dryer is equipped with a lint chamber hi-limit thermostat which must be reset manually. WARNING: Discontinue power to dryer before attempting to reset hi-limit.
- Page 53 All manuals and user guides at all-guides.com ADC 113143 1 -05/01/00-25 2 -05/09/00-25 3 -05/26/00-50...
