Summary of Contents for American Dryer Corp. ML-122

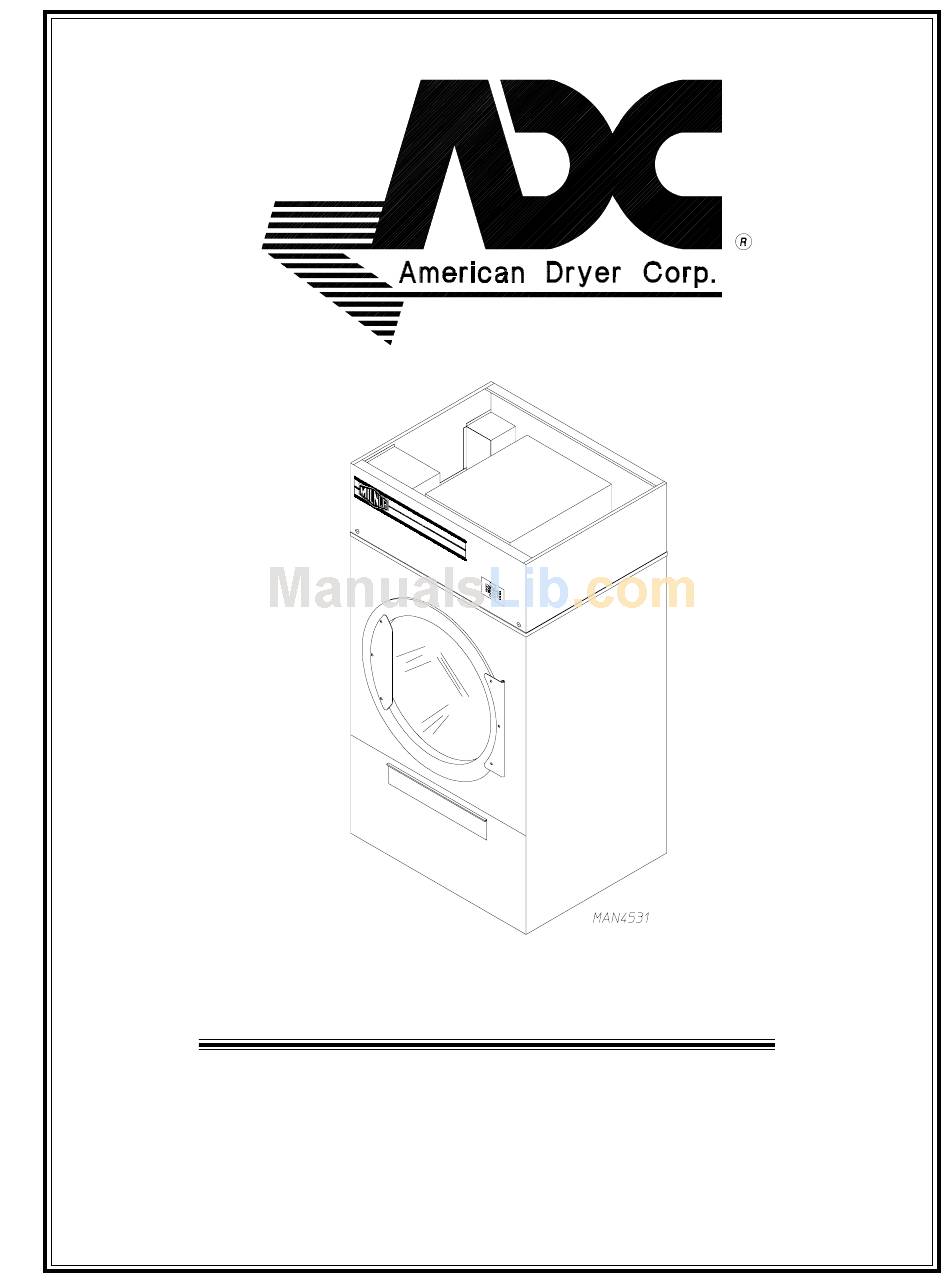

- Page 1 ML-122 Parts Manual American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com 070599DMG/cms ADC Part No. 450411...
- Page 2 These instructions must be posted in a prominent location near the dryer. POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de yout autre appareil. Important MODEL NO. __________________________________________ ML-122...
-
Page 3: Table Of Contents
Table of Contents Control Door Assembly ... 2 Phase 6 Microprocessor Panel Assembly ... 3 Wrapper Assembly ... 4 Front Panel Assembly ... 5 Front Panel Assembly Polymark Option ... 6 CRS Door Assembly ... 7 Main Door Switch Assembly ... 8 Lint Screen Assembly ... -
Page 4: Control Door Assembly
Illus. No. Part No. Qty. Description 882277 White Control Door Assembly Gas Models ONLY 882278 Cornflower Blue Control Door Assembly Gas Models ONLY 882279 Coral Blue Control Door Assembly Gas Models ONLY 882280 White Control Door Assembly Steam Models ONLY 882281 Cornflower Blue Control Door Assembly Steam Models ONLY 882282... -
Page 5: Phase 6 Microprocessor Panel Assembly
Phase 6 Microprocessor Panel Assembly Illus. No. Part No. Qty. Description 112537 Phase 6 OPL Keyboard 112276 OPL Stick-On Labels (English Only) ... Not Illustrated 112275 OPL Stick-On Labels (Spanish, Italian, and Hebrew) ... Not Illustrated 112277 3 Language OPL Stick-On Labels (English, Spanish, and Hebrew) ... -
Page 6: Wrapper Assembly
Illus. No. Part No. Qty. Description 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 859367 Bottom Right Wrapper --------- Drive Shaft Assembly (refer to Drive Wheel Assembly on page 14) --------- Temperature Sensor Bracket (refer to Microprocessor Temperature Sensor Bracket on page 10) 859368 Bottom Left Wrapper ---------... -
Page 7: Front Panel Assembly
Front Panel Assembly Illus. No. Part No. Qty. Description -------- CRS Main Door Assembly (refer to CRS Door Assembly on page 7) 150443 Socket Cap Screw 881441 White Bottom Hinge Block 882306 Cornflower Blue Bottom Hinge Block 882283 Coral Blue Bottom Hinge Block 153031 Nylon Washer 150443... -
Page 8: Front Panel Assembly Polymark Option
Illus. No. Part No. Qty. Description -------- CRS Main Door Assembly (refer to CRS Door Assembly on page 7) 150443 Socket Cap Screw 881441 White Bottom Hinge Block 882306 Cornflower Blue Bottom Hinge Block 882283 Coral Blue Bottom Hinge Block 153031 Nylon Washer 150443... -
Page 9: Crs Door Assembly
CRS Door Assembly Illus. No. Part No. Qty. Description 881689 White CRS Main Door Assembly (includes illus. nos. 2 through 10) 882308 Cornflower Blue CRS Main Door Assembly (includes illus nos. 2 through 10) 882292 Coral Blue CRS Main Door Assembly (includes illus. -
Page 10: Main Door Switch Assembly
Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 153010 #6 Star Washer 137005 Door Switch 881702 White Main Door Switch Housing Assembly (includes illus. nos. 1 through 5) 882314 Cornflower Blue Main Door Switch housing Assembly (includes illus. -
Page 11: Lint Screen Assembly
Lint Screen Assembly Illus. No. Part No. Qty. Description 882299 White Lint Draw Assembly (includes illus. nos. 1 and 2) 882300 Cornflower Blue Lint Draw Assembly (includes illus. nos. 1 and 2) 882301 Coral Blue Lint Draw Assembly (includes illus. nos. 1 and 2) 115902 Lint Basket Felt 108227... -
Page 12: Microprocessor Temperature Sensor Bracket
Illus. No. Part No. Qty. Description 859372 Microprocessor Temperature Sensor Bracket Complete (includes illus. nos. 1 through 13) 881089 Microprocessor Temperature Sensor Bracket ONLY 880252 4” Temperature Sensor 154007 1/4” Push On Fastener 121028 1/4” Terminal 122701 Socket Terminal ONLY 122605 4-Position Female Connector 122700... -
Page 13: Motorized Impellor Assembly
Motorized Impellor Assembly Illus. No. Part No. Qty. Description 859364 Coop Cone 100622 Motorized Impellor (fan/blower) 230V 60 Hz 3ø 100619 Motorized Impellor (fan/blower) 230/400V 50 Hz 3ø 460/480 60 Hz 3ø 100617 Motorized Impellor (fan/blower) 208V/60 Hz 3ø 859361 Motorized Impellor Assembly 230V/60 Hz 3ø... -
Page 14: Tumbler (Basket) Assembly
Illus. No. Part No. Qty. Description 816053 Tumbler and Support Complete (includes illus. nos. 1 through 3) 816081 Stainless Steel Tumbler and Support Complete (includes illus. nos. 1 through 3) 390704 Tumbler Side 390655 Stainless Steel Tumbler Side 150118 1/4-20 x 1/4” Stainless Steel Phillips Pan Head Screw 116006 Felt Collar 139 3/8 x 2 1/2 x 1/8 170730... -
Page 15: Tumbler (Basket) Bearing Assembly
Tumbler (Basket) Bearing Assembly Illus. No. Part No. Qty. Description 882244 1-3/4” Flange Bearing Assembly with Rotational Sensor Magnet (includes illus. nos. 1 and 5) 153025 9/16” Lock Washer 152050 9/16”-12 Hex Nut 100816 1-3/4” C-Clip Retaining Ring 102120 Rotational Sensor Magnet 882333 White Bearing Cap/Rotational Sensor 882382... -
Page 16: Drive Wheel Assembly
Illus. No. Part No. Qty. Description 390641 Drive Shaft 816061 Drive Shaft Assembly (includes illus. nos. 1 through 11) 180037 6-1/4” Drive Wheel and Hub 180038 1” Taper Lock 880205 1” Pillow Block Bearing 152004 5/16-18 Hex Nut 153002 5/16” Lock Washer 153001 5/16”... -
Page 17: Idler Wheel Assembly
Idler Wheel Assembly Illus. No. Part No. Qty. Description 390642 Idler Shaft 816062 Idler Shaft Assembly (includes illus. nos. 1 through 11) 180037 6-1/4” Drive Wheel and Hub 180038 1” Taper Lock 880205 1” Pillow Block Bearing 152004 5/16-18 Hex Nut 153002 5/16”... -
Page 18: Drive Motor Assembly
Illus. No. Part No. Qty. Description 859332 Motor Mount 152004 5/16” Hex Nut 150501 5/16-18 x 3/4” Hex Bolt 153001 5/16” Flat Washer 153002 5/16” Lock Washer 816060 Drive Motor Assembly (60 Hz) (includes illus. nos. 1 through 12) 181029 1 HP 200-230/460V 3ø... -
Page 20: Direct Spark Ignition (Dsi) Burner Assembly
Illus. No. Part No. Qty. Description 816034 Natural Gas Burner Assembly Complete (includes illus. nos. 1 through 26, and 28) 816040 Liquid Propane (L.P.) Gas Burner Assembly Complete (includes illus. nos. 1 through 28) 816099 Burner Box ONLY 331291 Gas Valve Pipe Bracket 150309 #10-16 x 1/2”... -
Page 21: Hot Surface Ignition (Hsi) Burner Assembly
Hot Surface Ignition (HSI) Burner Assembly Illus. No. Part No. Qty. Description 142753 1-1/4” to 3/4” Reducing Coupling (for models mfd. as of July 2, 1999) 142924 1” to 3/4” Reducing Coupling (for models mfd. prior to July 2, 1999) 331291 Pipe Bracket 150309... -
Page 22: Hot Surface Ignition (Hsi) Burner Assembly
continued from page 19 Illus. No. Part No. Qty. Description 142601 3/4” Union 142710 3/4” x 4” Nipple 142504 3/4” x 90º Elbow 142734 3/4” x 5-1/2” Nipple 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 390125 Pipe Bracket 140026 3/4”... -
Page 23: Sail Switch Assembly
Sail Switch Assembly Illus. No. Part No. Qty. Description 319203 Sail Switch Mounting Bracket 319202 Sail Switch Damper (flat) 319201 Sail Switch Box Cover 319200 Sail Switch Box 154004 Twin Speed Nut 154002 1/8” Push On Fastener 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 150303 #4 x 3/4”... -
Page 24: Pneumatic Valve Assembly
Illus. No. Part No. Qty. Description 330987 Micro Valve Bracket 836002 Air Jet Solenoid 150111 1/4-20” Phillips Round Head Machine Screw 152014 1/4-20” Free Spin Wash Nut 151000 #6-32 Pal Nut 100472 1/4” x 1/8” Male Connector 150002 #6-32 x 1” Phillips Round Head Machine Screw 100520 1/8”... -
Page 26: Steam Damper Assembly
Illus. No. Part No. Qty. Description 165012 Steam Coil Assembly 165019 Steel Steam Coil Assembly (optional) 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 Steam Damper Hinge Assembly 820320 Steam Damper Assembly (copper coil) (includes illus. -
Page 27: Reversing Relay Panel Assembly
Reversing Relay Panel Assembly For 60 Hz Model ONLY Telephone: (508) 678-9000 Fax: (508) 678-9447... - Page 28 Illus. No. Part No. Qty. Description 150008 6-32 x 1-1/4” Phillips Round Head Machine Screw 120701 4-Position Terminal Block 323743 Relay Panel 820187 Reversing Relay Panel Assembly 208-240V (includes illus. nos. 1 through 15) 820217 Reversing Relay Panel Assembly 480V (includes illus.
-
Page 29: Reversing Relay Panel Assembly
Reversing Relay Panel Assembly For 50 Hz Model ONLY Telephone: (508) 678-9000 Fax: (508) 678-9447... -
Page 30: For 50 Hz Model Only
Illus. No. Part No. Qty. Description 150008 #6-32 x 1-1/4” Phillips Round Head Machine Screw 120701 4-Position Terminal Block 323743 Relay Panel 820219 380-416V/50 Hz 3ø Reversing Relay Panel Assembly (includes illus. nos. 1 through 15) For Gas Models ONLY 820192 380-416V/50 Hz 3ø... -
Page 31: For 50 Hz Model Only
Polymark Reversing Relay Panel Assembly For 50 Hz Model ONLY Telephone: (508) 678-9000 Fax: (508) 678-9447... - Page 32 Illus. No. Part No. Qty. Description 132455 9-Amp Contactor 132448 Reversing Contactor 131971 1.6 - 2.5 Amp Manual Stater 132389 Auxiliary Contact Block 131961 2.5 - 4 Amp Manual Starter 120765 End Stop 137060 Arc Suppressor (A.S.) Board 137013 Nylon Standoff 150301 #8-18 x 7/16”...
-
Page 33: Air Jet Assembly
Air Jet Assembly Illus. No. Part No. Qty. Description 882157 1/4” Aluminum Tubing (sold by the foot) 143287 1/4” x 1/8” M.P.T. Tee 143259 Bulkhead Fitting 1/4” x 1/8” F.P.T. 143115 1/4” Diameter Poly-Flo Tubing 143154 1/4” Poly Union Telephone: (508) 678-9000 Fax: (508) 678-9447... -
Page 34: Exhaust Adapter
Illus. No. Part No. Qty. Description 882302 White Exhaust Adapter 882303 Cornflower Blue Exhaust Adapter 882321 Coral Blue Exhaust Adapter 881806 White 1/4-20 with 3/4 Free Spin Wash Nut 882313 Cornflower Blue 1/4-20 with 3/4 Freespin Wash Nut 882293 Coral Blue 1/4-20 with 3/4 Freespin Wash Nut American Dryer Corporation Exhaust Adapter 88 Currant Road / Fall River, MA 02720-4781... - Page 35 ADC 450411 4-02/04/05-0...
